Rear Center Safety Belt Buckle [Vehicles With: 60/40 Split Seat]

Rear Center Safety Belt Buckle

Removal

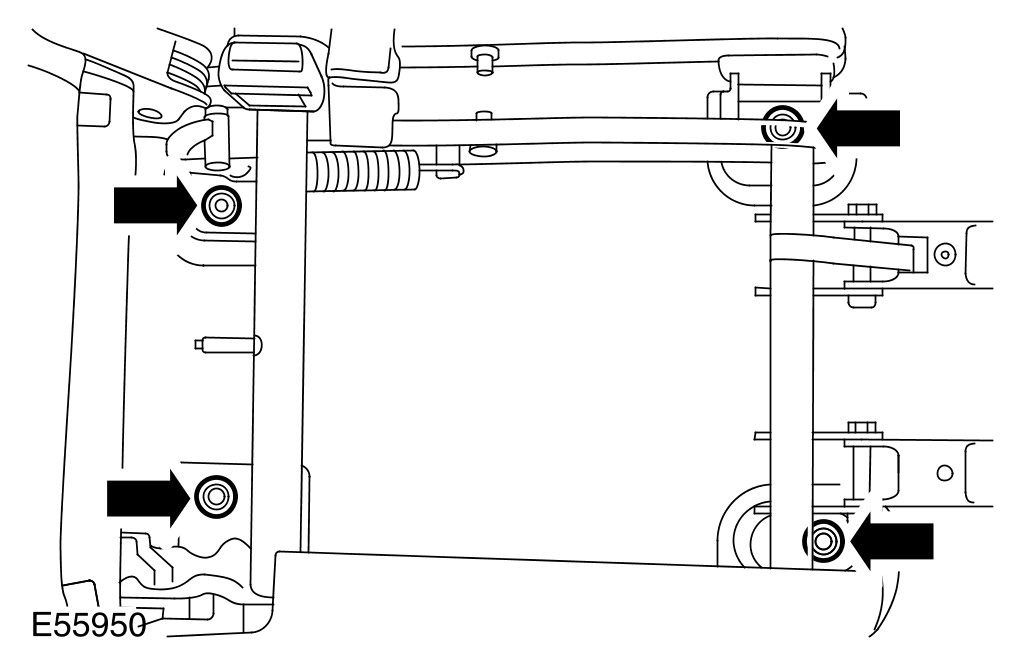

1 Release the RH rear seat.
- Fold the seat cushion forward.
- Remove and discard the 4 Torx bolts.
- Fold down the rear seat backrest.
2 Remove the RH rear seat.

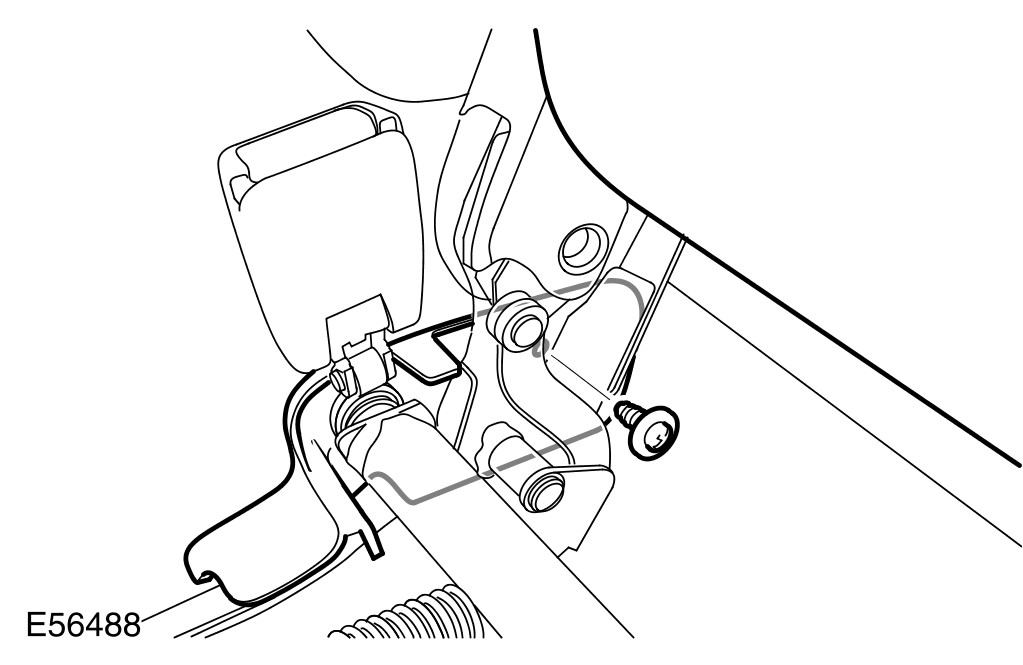

3 Remove the rear seat cushion side finisher.
- Raise the seat cushion.
- Remove the screw.

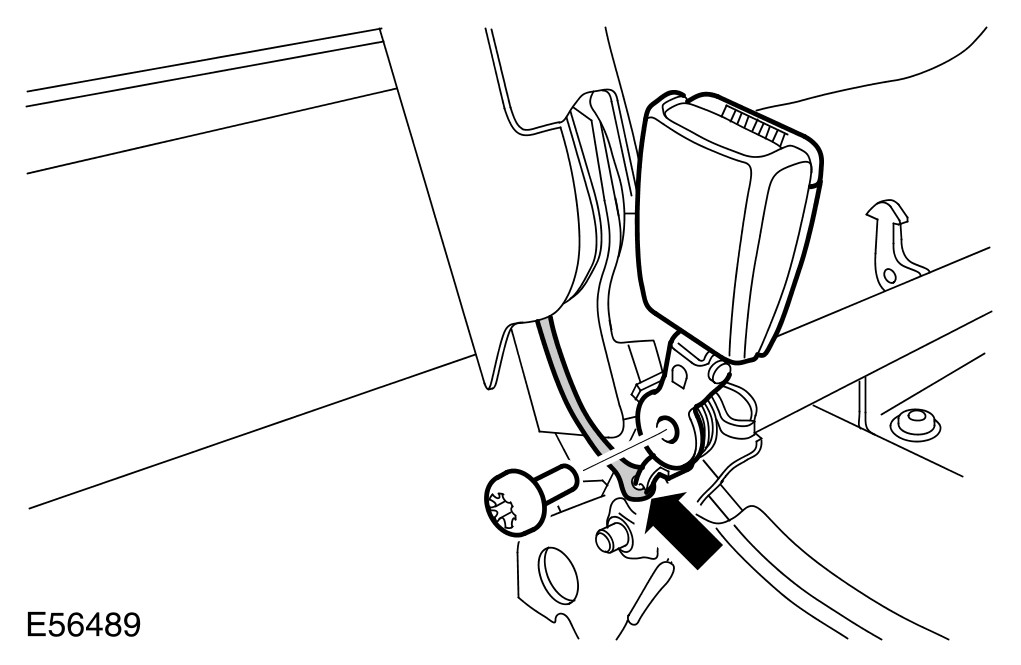

4 Remove the safety belt buckle.
- Release the retaining strap.
- Remove and discard the bolt.

Installation
1 Install the safety belt buckle.
- Tighten the Torx bolt to 40 Nm (30 lb.ft).
- Attach the retaining strap.
- Lower the seat cushion.
2 Install the rear seat cushion side finisher.
- Tighten the screw.
3 Install the RH rear seat.
- Position the seat on the dowels.
4 Secure the RH rear seat.
- Return the seat backrest to the upright position.
- Tighten the new bolts to 40 Nm (30 lb.ft).
- Fold the seat cushion rearwards.
