Engine Mount RH
Engine Mount RH
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures
Removal
NOTE:
Some illustrations may show the engine removed for clarity.
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
WARNING: Make sure to support the vehicle with axle stands.
1 Raise and support the vehicle.
2 Disconnect the battery ground cable.
For additional information, refer to Specifications Specifications
3 Remove the RH front wheel and tire.

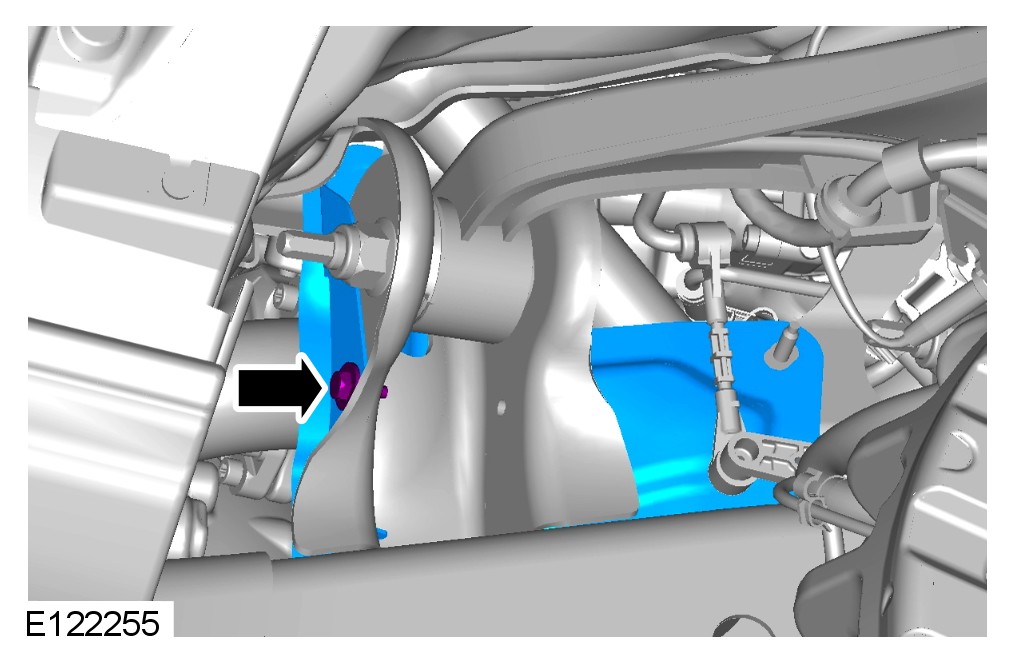

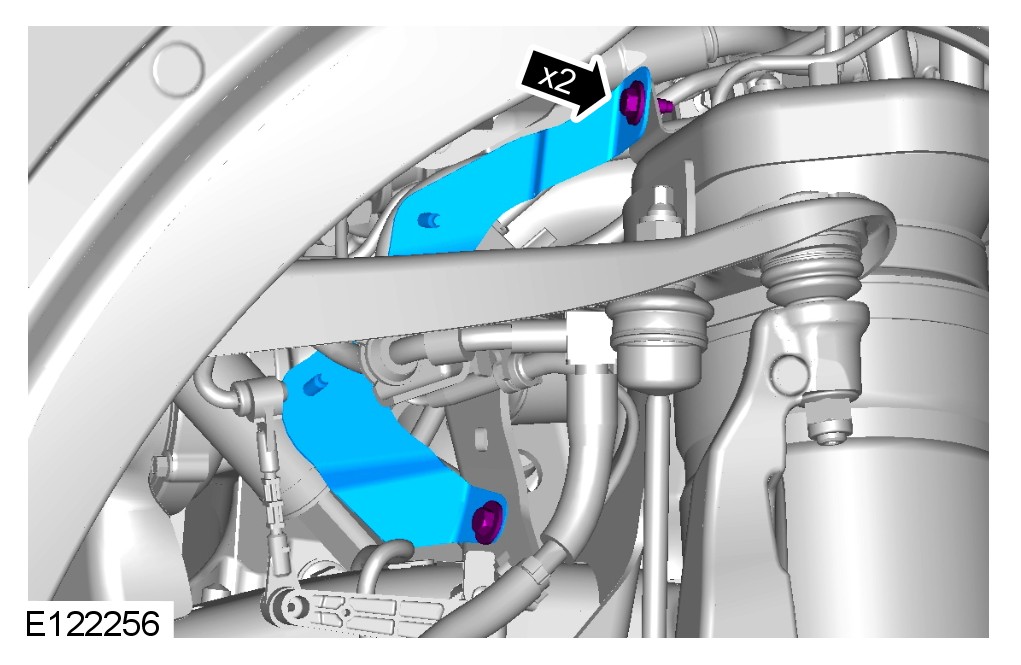

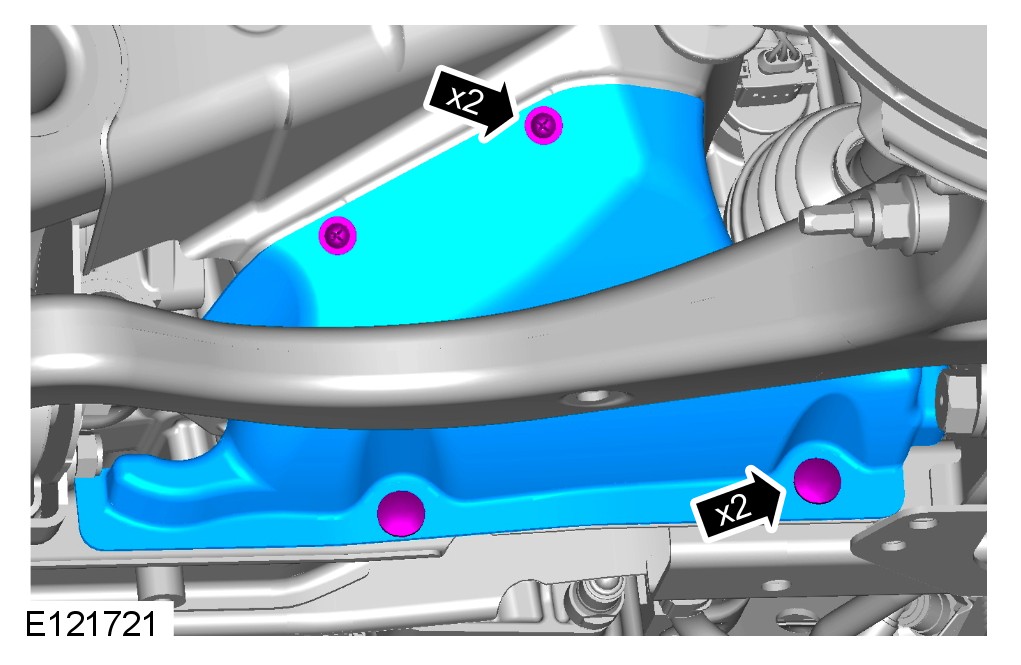

For additional information, refer to Exhaust System Service and Repair

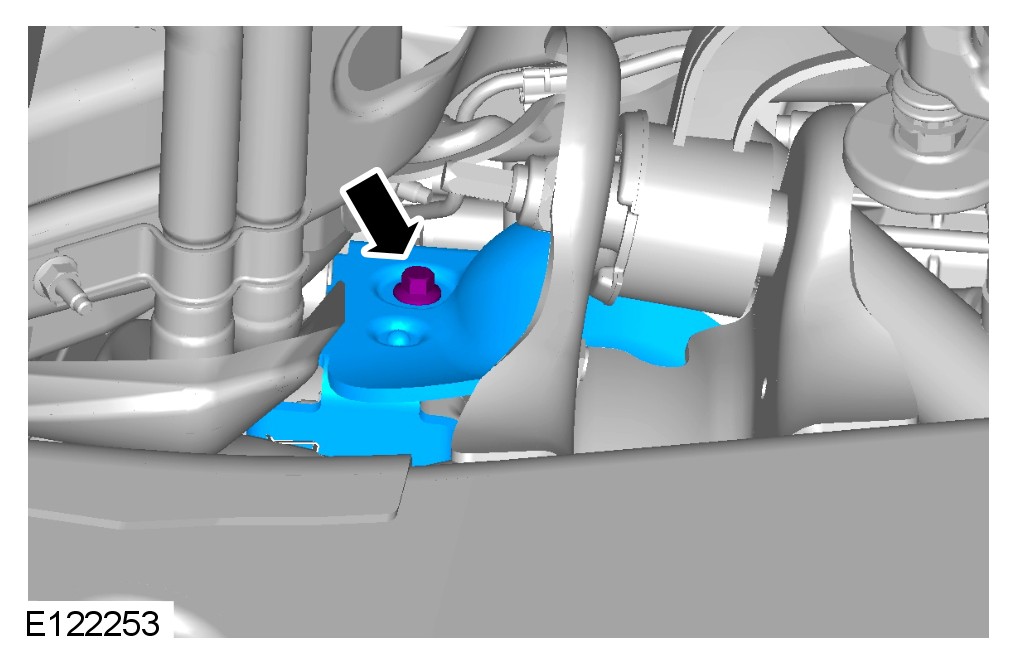

For additional information, refer to Air Cleaner Outlet Pipe T-Connector Air Cleaner Outlet Pipe T-Connector
CAUTION: Always protect the cooling pack elements to prevent accidental damage.
NOTE:
The thread is right handed.
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
CAUTION: Use a wooden block to protect the oil pan when supporting the engine.
4 Using a suitable hydraulic jack, raise and support the engine.
Installation

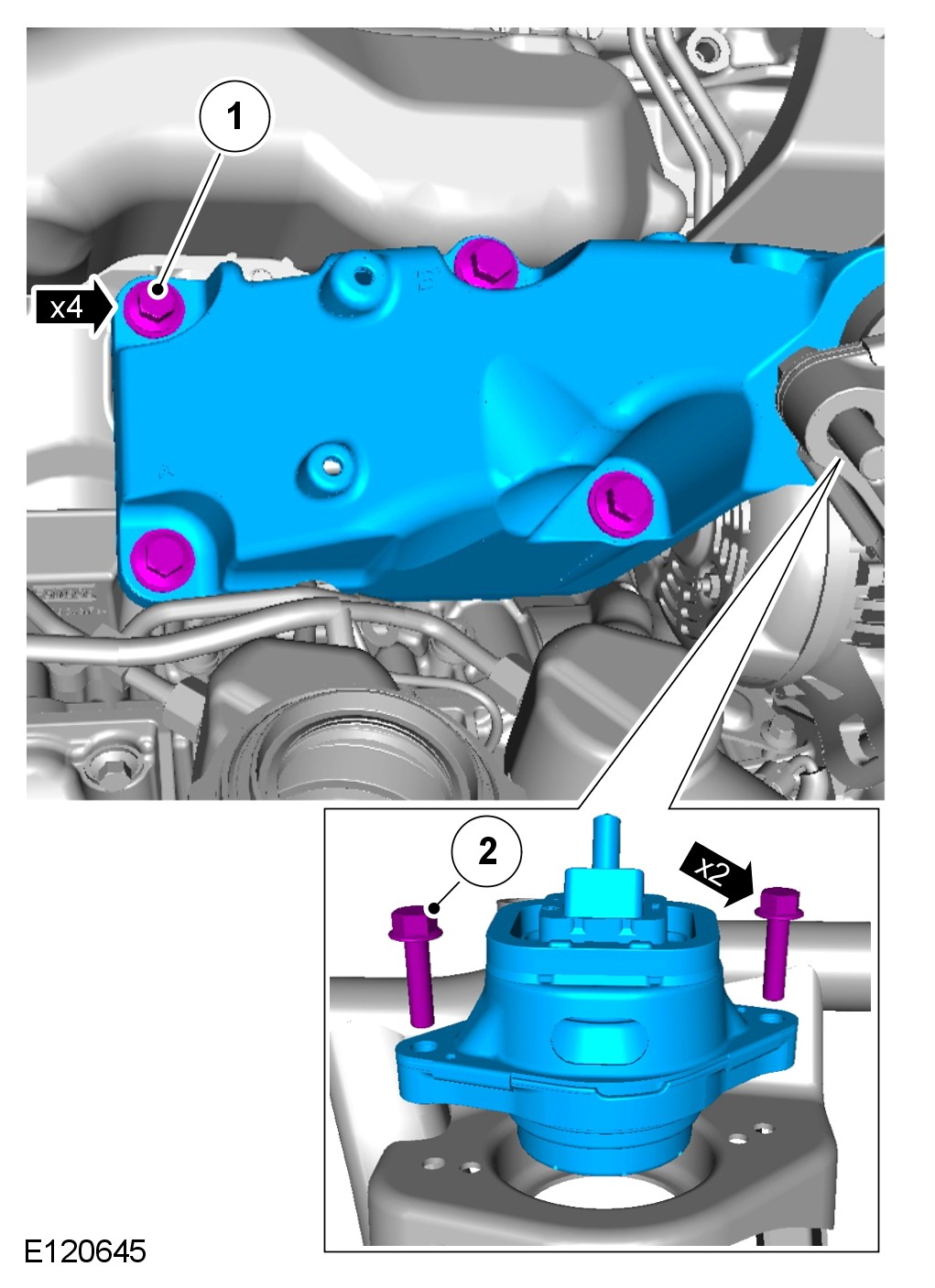

1: 45 Nm
1:
60 degree
2: 56 Nm
Torque to: 100 Nm
CAUTION: Always protect the cooling pack elements to prevent accidental damage.
NOTE:
The thread is right handed.
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
Special Service Tool
Viscous Coupling Wrench, 303-1142
Special Service Tool
Viscous Coupling Holding Tool, 303-1143
Torque to: 65 Nm
1 Install the RH front wheel and tire.
For additional information, refer to Air Cleaner Outlet Pipe T-Connector Air Cleaner Outlet Pipe T-Connector
For additional information, refer to Exhaust System Service and Repair
2 Connect the battery ground cable.
For additional information, refer to Specifications Specifications
