Range Rover Sport (LS) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C2041 - C2115
>>

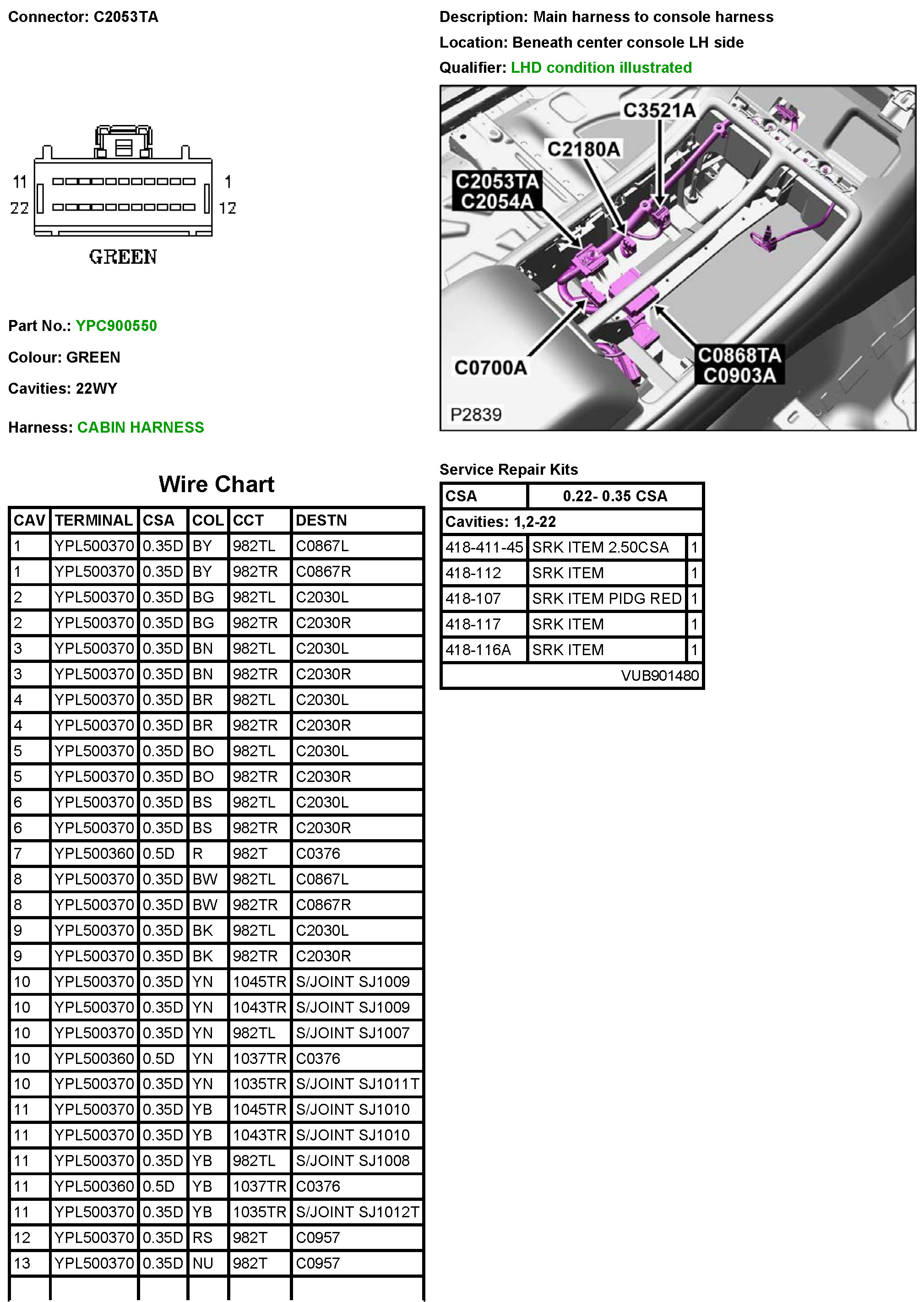

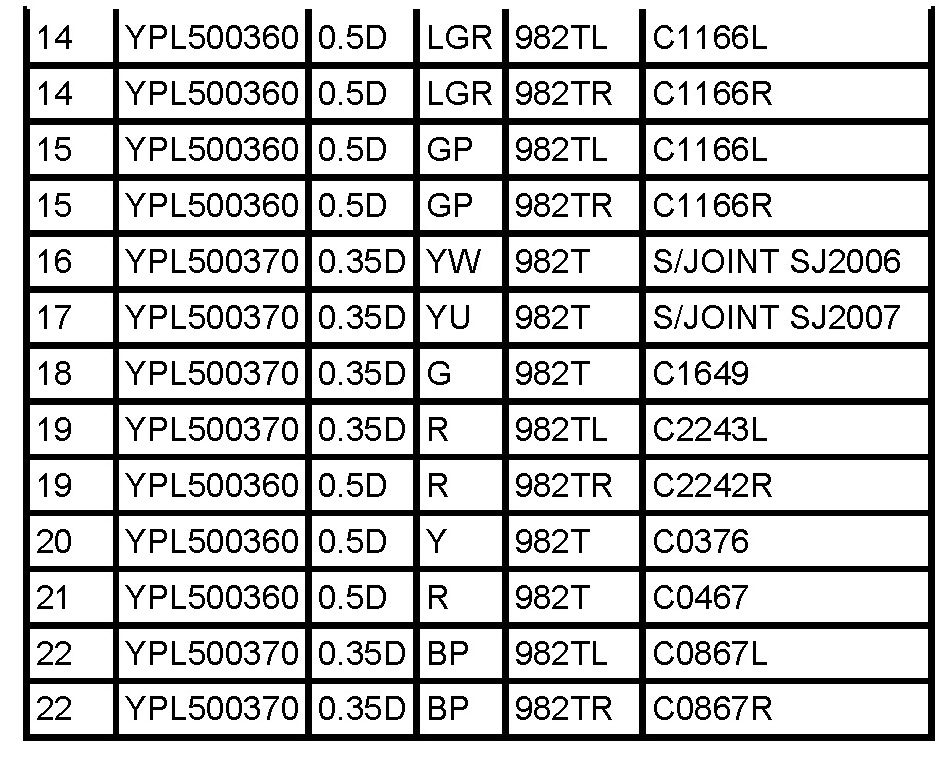

C2053TA
C2053TA
C2053TA
