Brake Fluid Reservoir: Service and Repair

Brake Fluid Reservoir

Removal

CAUTION: Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area with water.

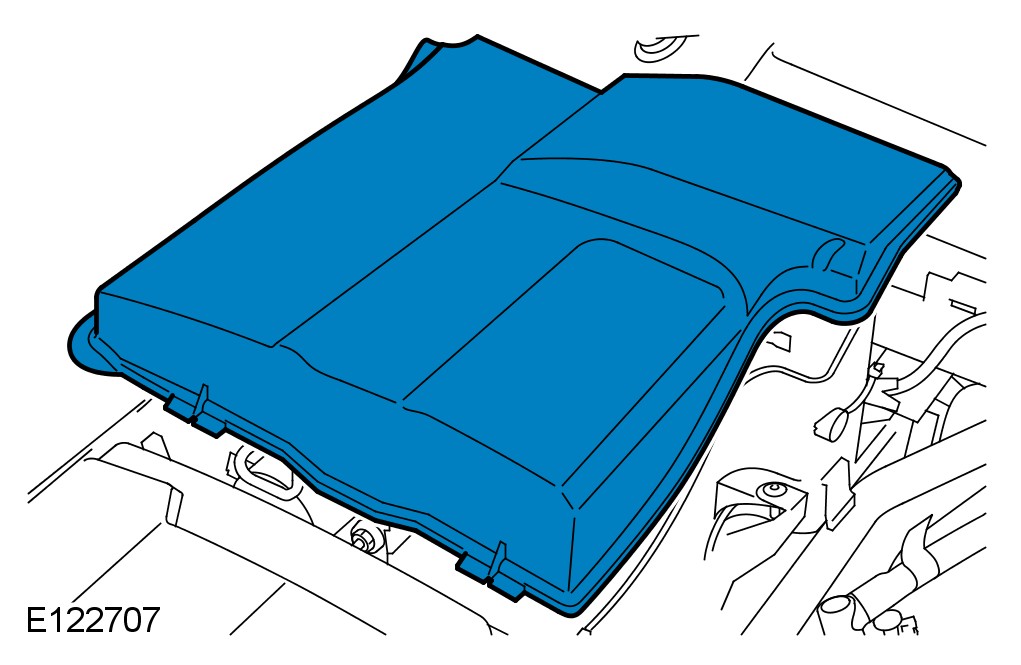

1 Remove the cover.
2 Position an absorbent cloth to collect fluid spillage.
3 Disconnect the low brake fluid warning indicator switch electrical connector.




4
CAUTION: Always plug any open connections to prevent contamination.

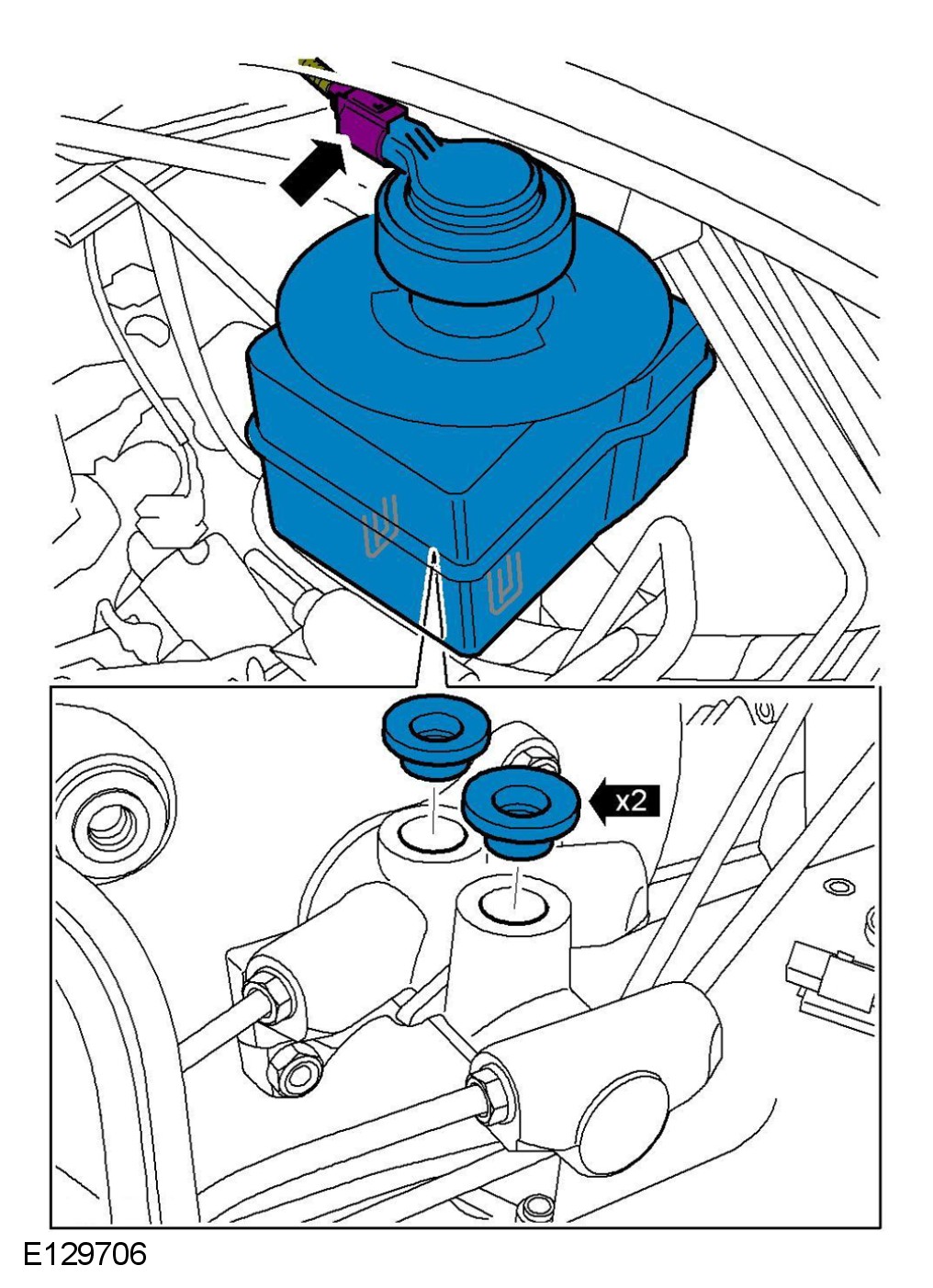

Remove the brake fluid reservoir.
- Release the 2 clips.
- Remove and discard 2 brake fluid reservoir seals.

Installation
1 Clean the components.
2
NOTE:
Remove and discard all blanking caps.
Install the brake fluid reservoir.
- Install new brake fluid reservoir seals.
3 Connect the low brake fluid warning indicator switch electrical connector.
4 Bleed the brake system using T4. For additional information, refer to Brake System Bleeding - Vehicles With: Standard Brakes Brake System Bleeding [Vehicles With: Standard Brakes]
5 Install the cover.
