Brake Pedal and Bracket

Brake Pedal and Bracket

Removal
1 Remove the headlamp switch. For additional information, refer to Headlamp Switch
2 Remove the stoplamp switch. For additional information, refer to Stoplamp Switch Service and Repair




3 Remove the instrument panel access panel.
- Release the 2 clips.




4 Remove the brake pedal bracket.
- Release the wiring harness clip.
- Remove the 4 Torx bolts.




5 Remove the brake pedal clevis pin.
- Remove the clip.

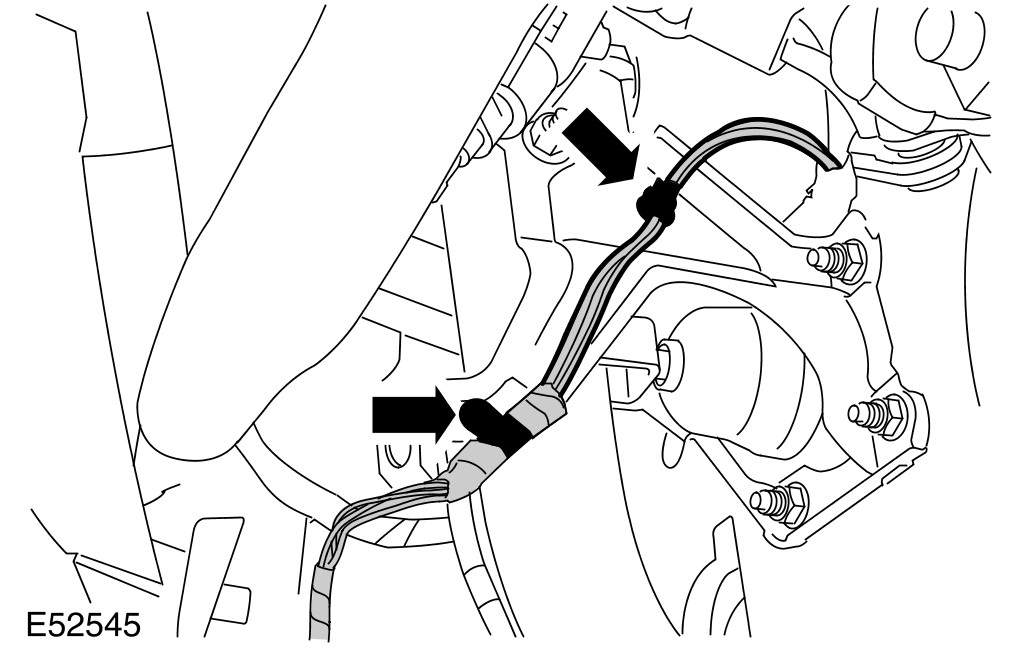

6 Release the stoplamp wiring harness.
- Release the 2 clips.

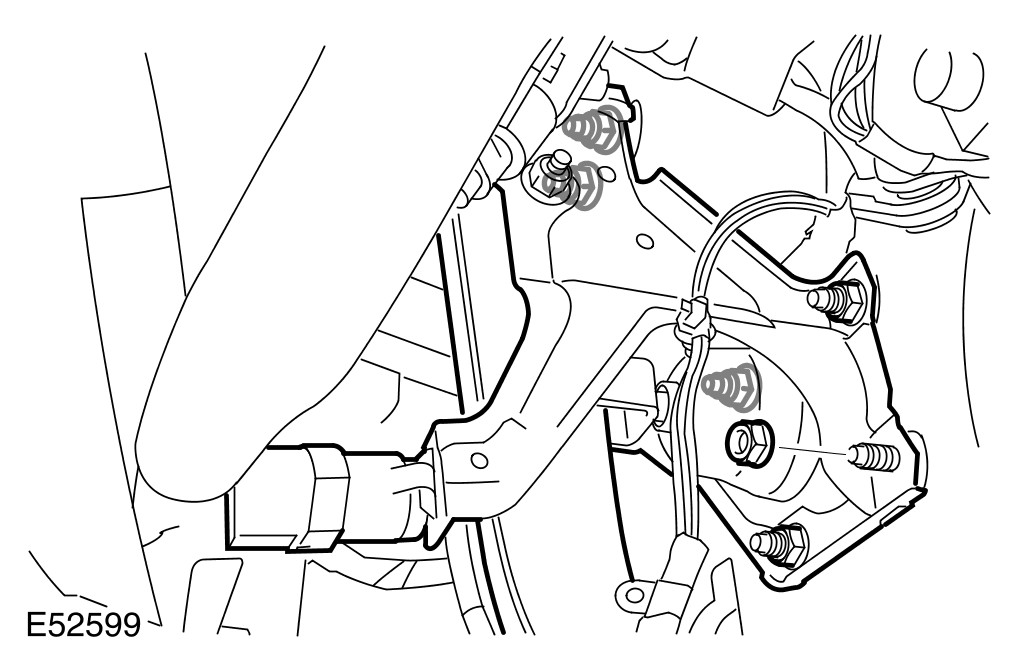

7 Remove the brake pedal assembly.
- Remove the 6 nuts.
- Position the brake booster forward to aid the removal of the brake pedal assembly.

Installation
1 Install the brake pedal assembly.
- Position the brake booster to the brake pedal bracket.
- Tighten the nuts to 25 Nm (18 lb.ft).
2 Secure the wiring harness.
- Secure the clips.
3 Install the brake pedal clevis pin.
- Install the clip.
4 Install the brake pedal bracket.
- Tighten the Torx bolt to 10 Nm (7 lb.ft).
- Secure the wiring harness.
5 Install the instrument panel access panel.
- Secure with the clips.
6 Install the stoplamp switch. For additional information, refer to Stoplamp Switch Service and Repair
7 Install the headlamp switch. For additional information, refer to Headlamp Switch
