Rear Seat

Rear Seat

Removal

NOTE:
Left-hand shown, right-hand similar.

NOTE:
The Torx bolts can be re-used.

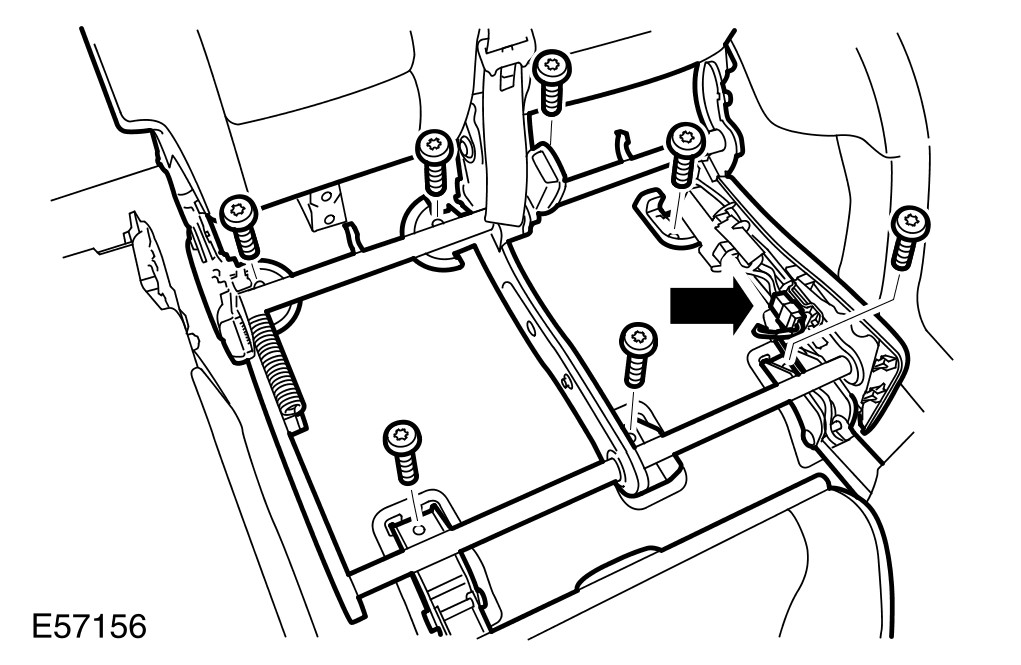

1 Release the rear seat.
- Fold the LH seat cushion forward.
- Remove the 7 Torx bolts.
- Fold down the rear seat backrest.
- Disconnect the electrical connector.




2 With assistance, remove the rear seat assembly.




3
NOTE:
Do not disassemble further if the component is removed for access only.

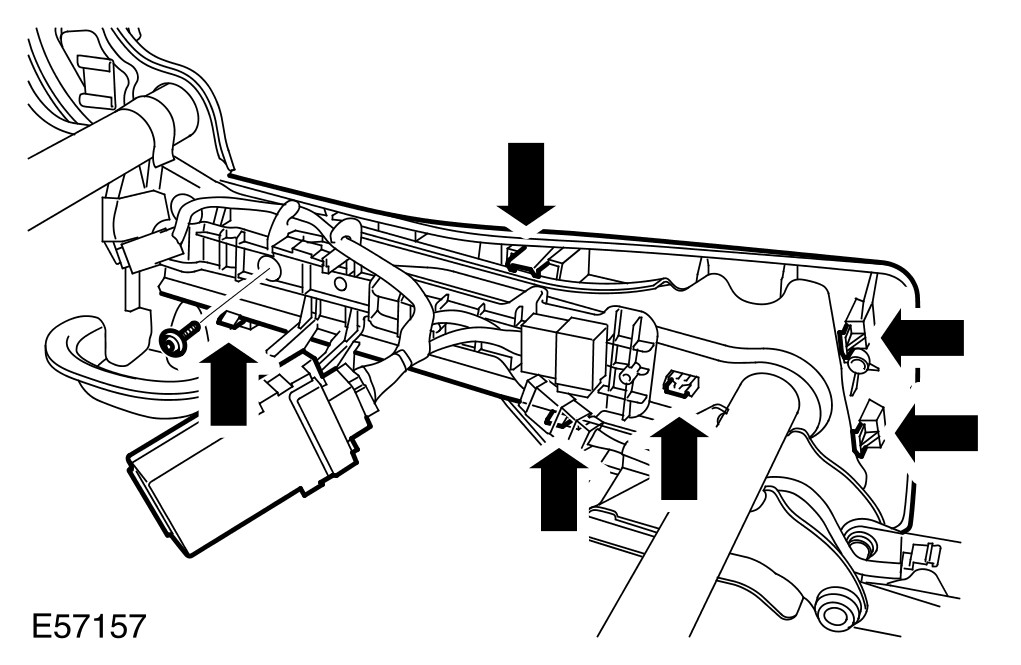

Remove the rear seat cushion side trim.
- Release the seat heater control module.
- Remove the Torx screw.
- Release the 6 clips.

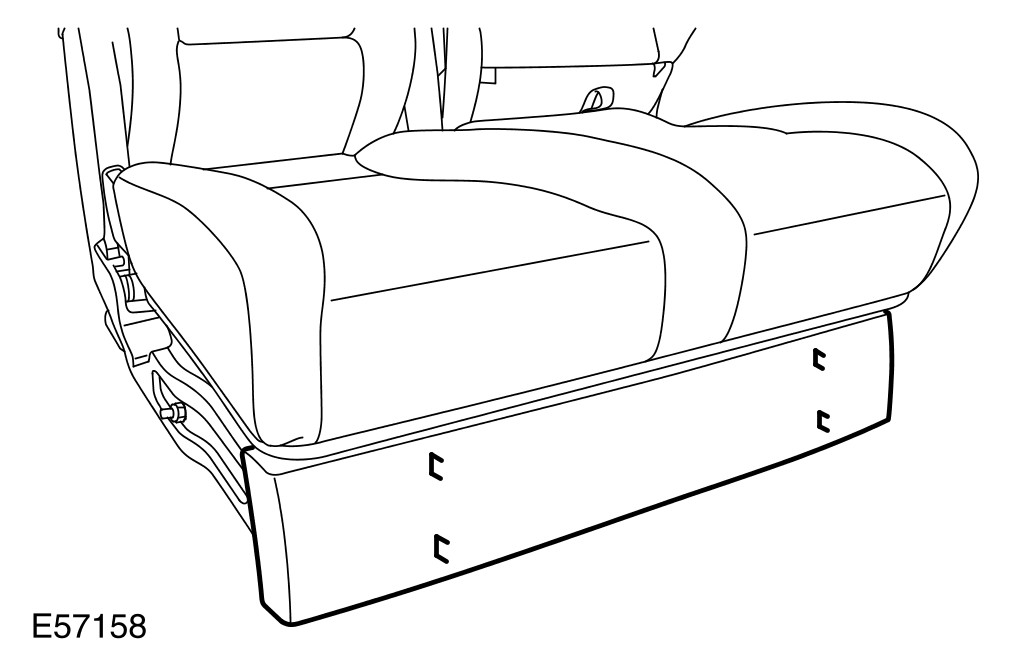

4 Remove the seat frame trim.
- Release the 4 clips.

Installation
1 Install the seat frame trim.
- Carefully secure the clips.
2 Install the rear seat cushion side trim.
- Carefully secure the clips.
- Fit and tighten the Torx screw.
- Install the seat heater control module.
3 With assistance, install the rear seat assembly.
- Position the seat on the dowels.
4 Secure the rear seat.
- Return the seat backrest to the upright position.
- Tighten the Torx bolts to 40 Nm (30 lb.ft).
- Fold the seat cushion rearwards.
- Connect and secure the electrical connector.
