Roof Opening Panel

Roof Opening Panel

Removal
1 Disconnect the battery ground cable. For additional information, refer to Specifications Specifications
2 Remove the roof opening panel glass. For additional information, refer to Roof Opening Panel Glass Roof Opening Panel Glass
3 Remove the headliner. For additional information, refer to Headliner

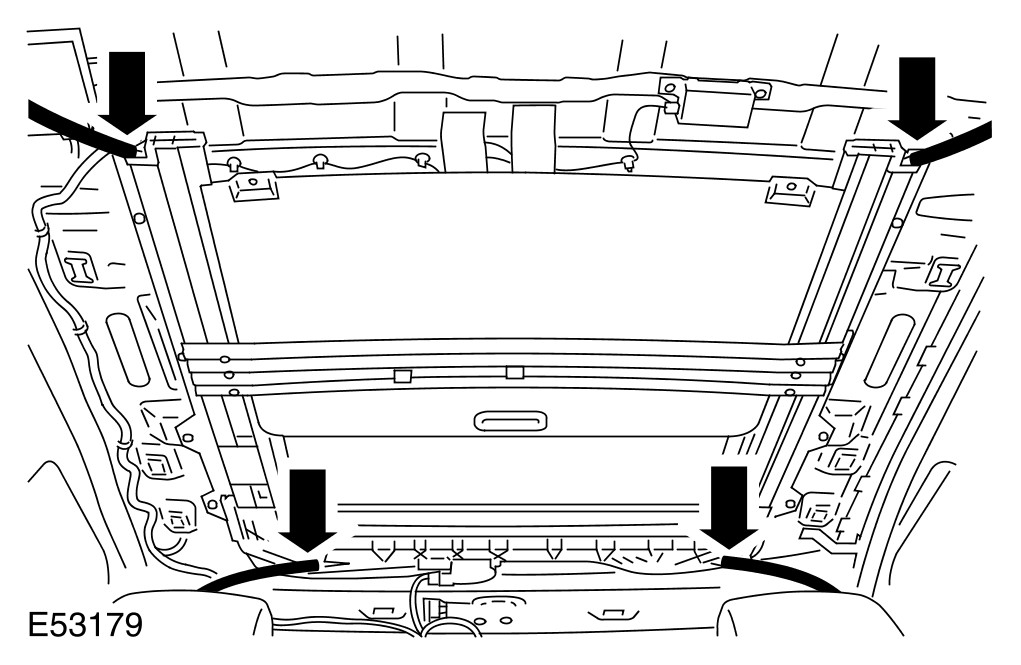

4 Release the 4 drain hoses from the roof opening panel.
- Release the 4 clips.

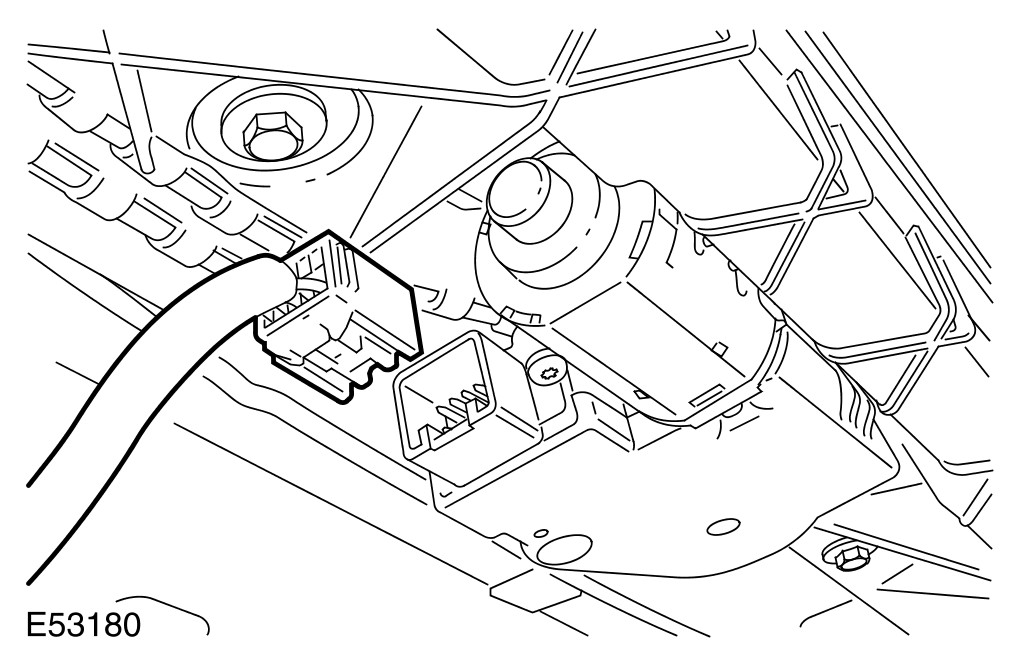

5 Disconnect the roof opening panel motor electrical connector.

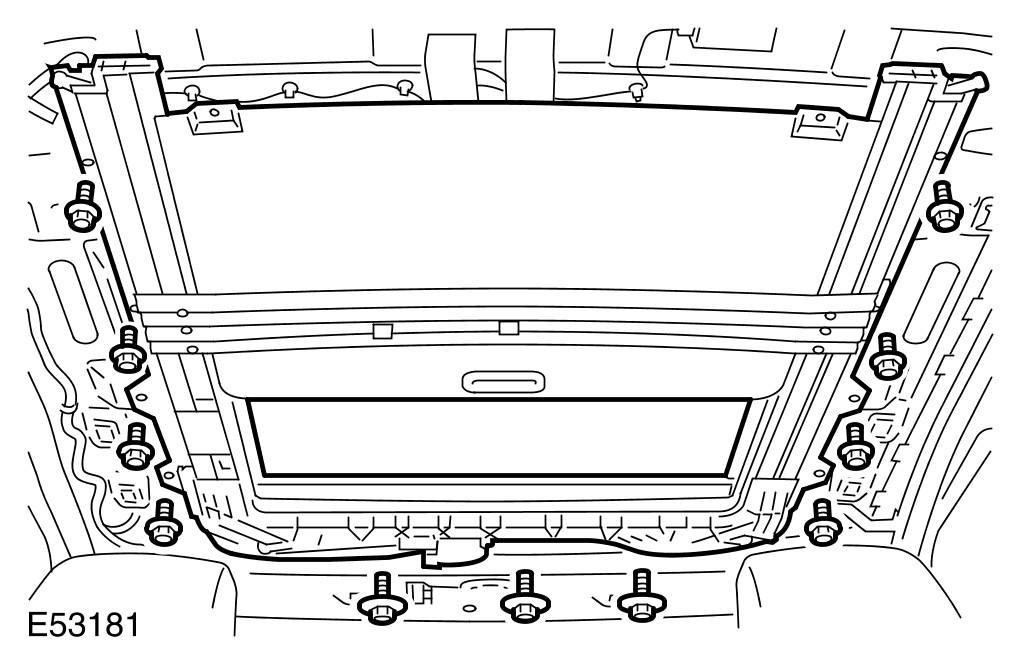

6 With assistance, remove the roof opening panel assembly.
- Remove the 11 bolts.




7
NOTE:
Do not disassemble further if the component is removed for access only.

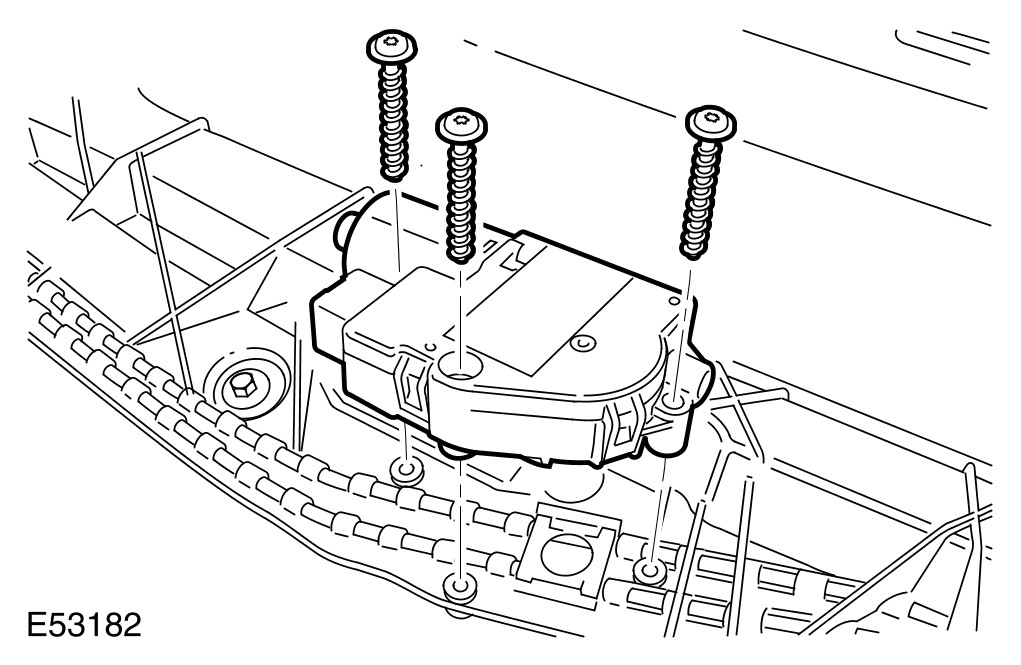

Remove the roof opening panel motor.
- Remove the 3 Torx screws.

Installation
1
WARNING: If the roof opening panel motor is being replaced, the one touch and anti-trap function will become inoperative. Close the roof opening panel and continue to hold the switch for a further 20 seconds to allow the sunroof to complete a full cycle. This will complete the roof opening panel calibration routine and reset these functions.
Install the motor.
- Tighten the Torx screws to 3 Nm.
2 With assistance, install the roof opening panel assembly.
- Clean the component mating faces.
- Tighten the bolts to 11 Nm.
3 Connect the roof opening panel motor electrical connector.
4 Connect the drain hoses.
- Make sure the drain hoses are clear prior to connection.
- Secure with the clips.
5 Install the headliner. For additional information, refer to Headliner
6 Install the roof opening panel glass. For additional information, refer to Roof Opening Panel Glass Roof Opening Panel Glass
7 Connect the battery ground cable. For additional information, refer to Specifications Specifications
8 Using the Land Rover approved diagnostic system, configure a new roof opening panel motor.
