Procedures

Roof Opening Panel Alignment

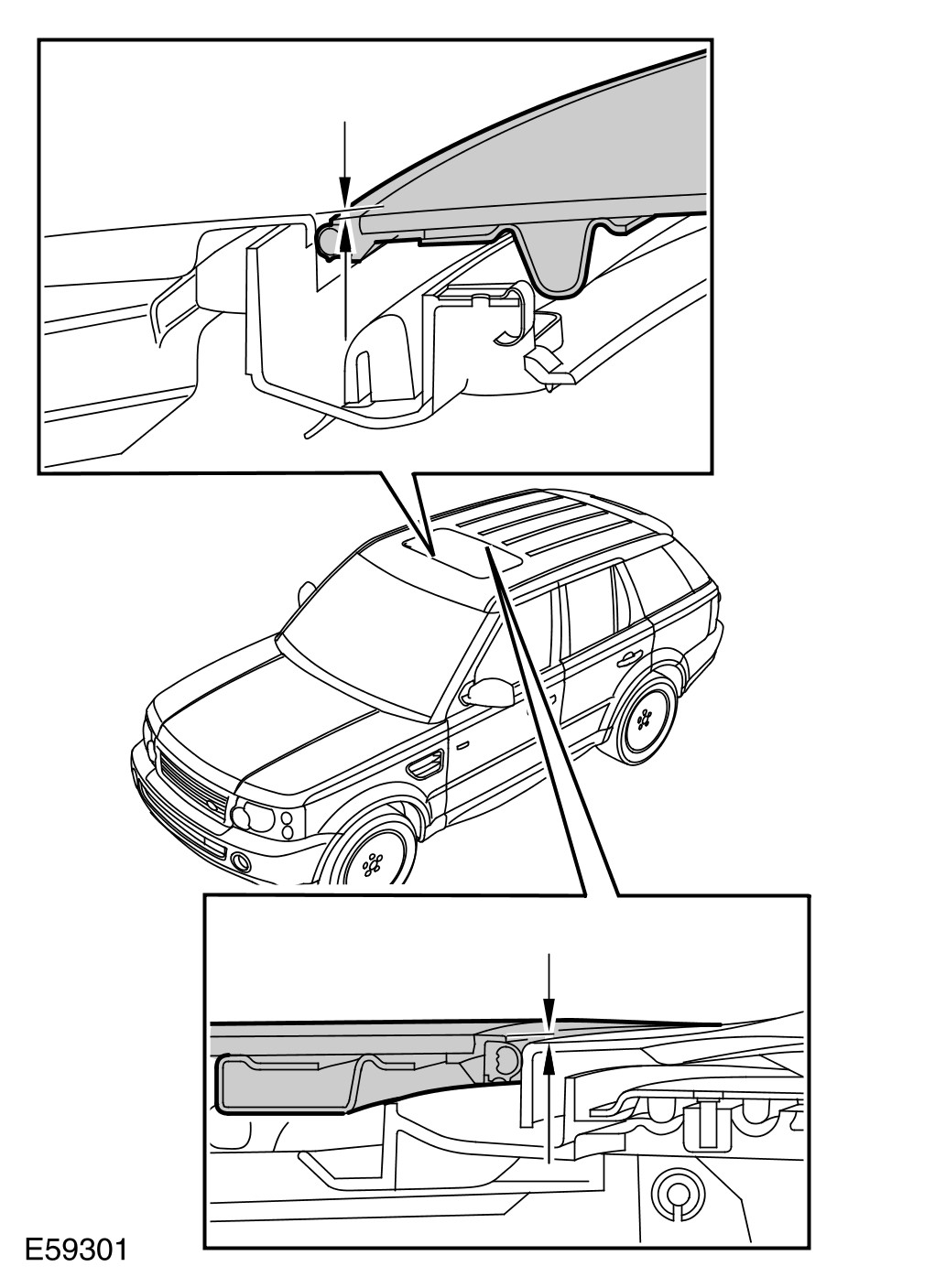

1 With the roof opening panel closed, check the alignment of the glass to the roof panel. The glass should be central in its aperture. Profile of sunroof to body: front edge, set flush or up to 1.0 mm (0.040") low; rear edge, set flush or up to 1.0 mm (0.040") high.
2 Open the roof opening panel blind.

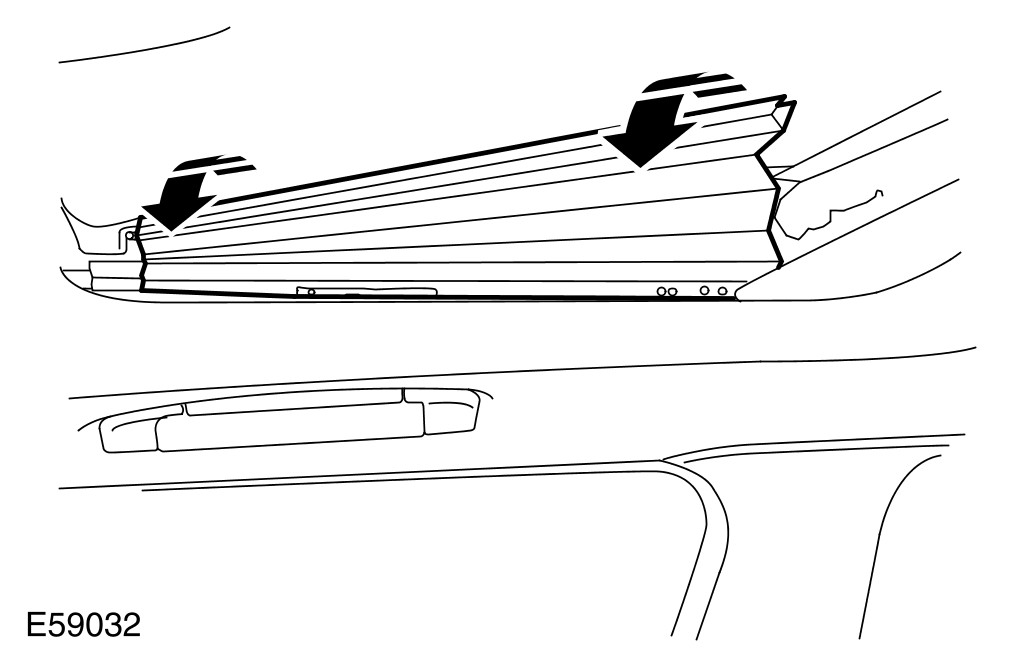

3 Remove the cover.
- Repeat the above procedure for the other side.

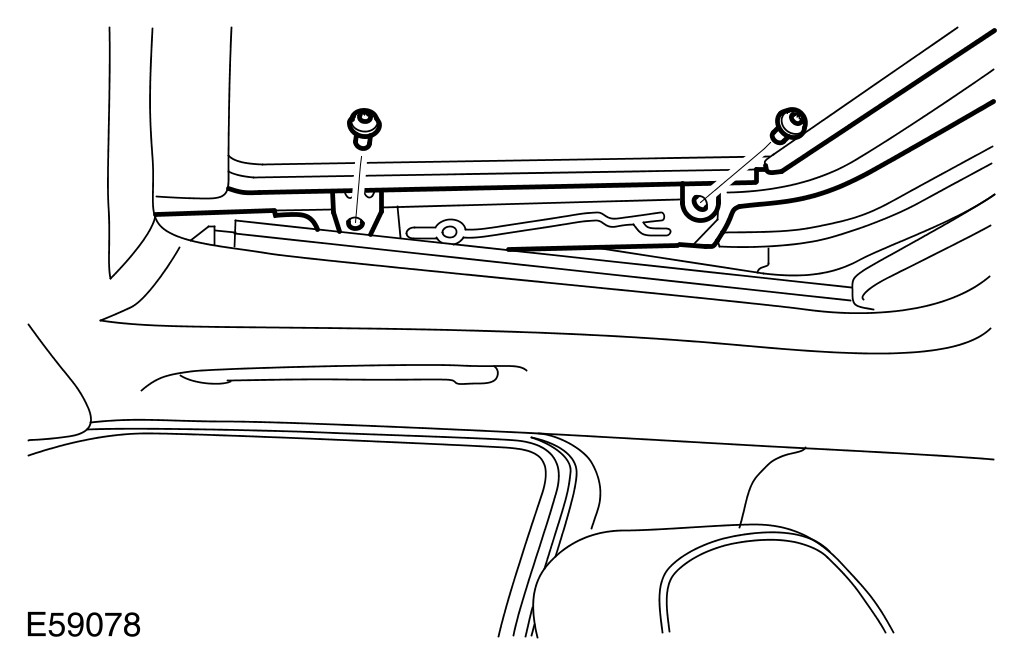

4 Loosen the 4 roof opening panel Torx screws.
5 Align the roof opening panel.
- Tighten the Torx screws to 6 Nm (4 lb.ft).
6 Install the cover.
- Repeat the above procedure for the other side.
7 Close the roof opening panel blind.
