Driver Side Roof Opening Panel Front Drain Hose

Driver Side Roof Opening Panel Front Drain Hose
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

NOTE:
Removal steps in this procedure may contain installation details.

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
For additional information, refer to Headliner




1 Remove the driver side closing trim panel.




2 Release the side air bag curtain and detach the drain hose from the opening roof panel.




3 Detach the drain hose from the body panel.




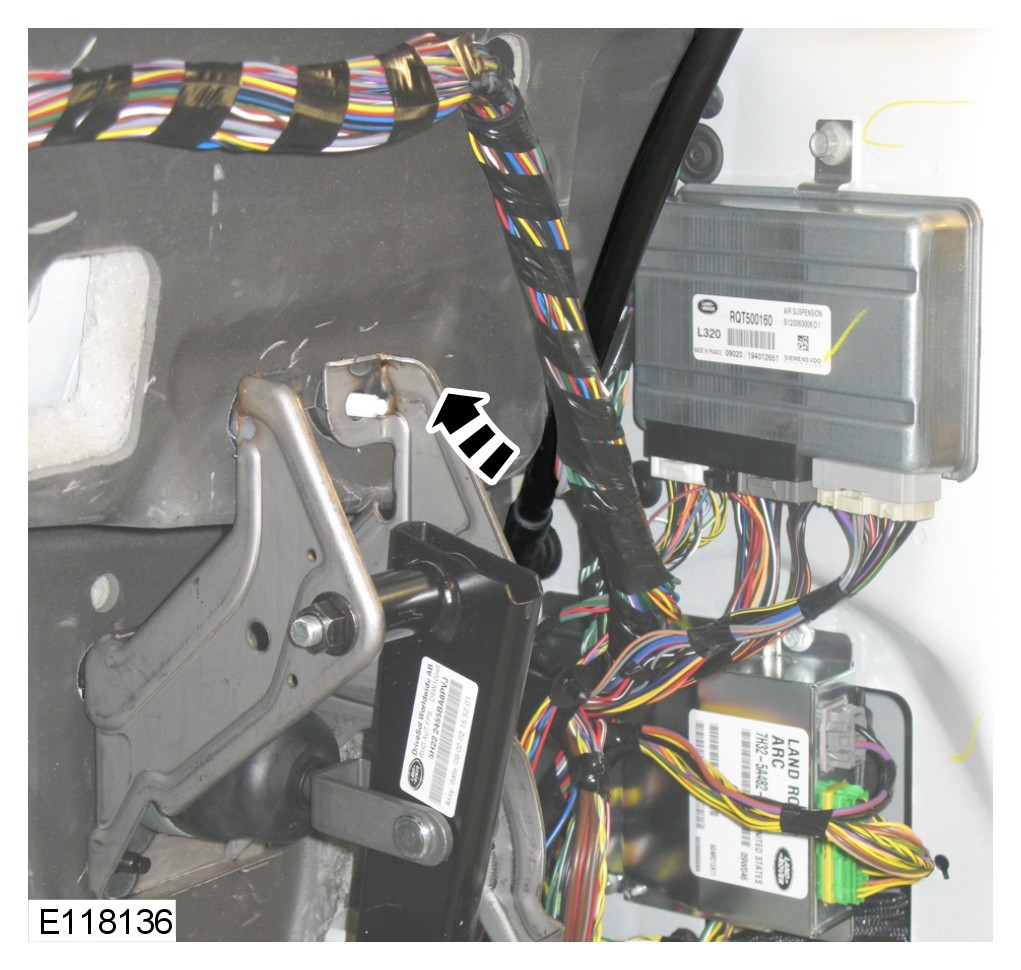

4 Using suitable tape, secure the drain hose to a suitable rod to aid removal from the A-pillar area.




5 Remove the
drain hose.

Installation
1 To install, reverse the removal procedure.
