Headliner: Service and Repair

Headliner
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

NOTE:
Removal steps in this procedure may contain installation details.

All vehicles

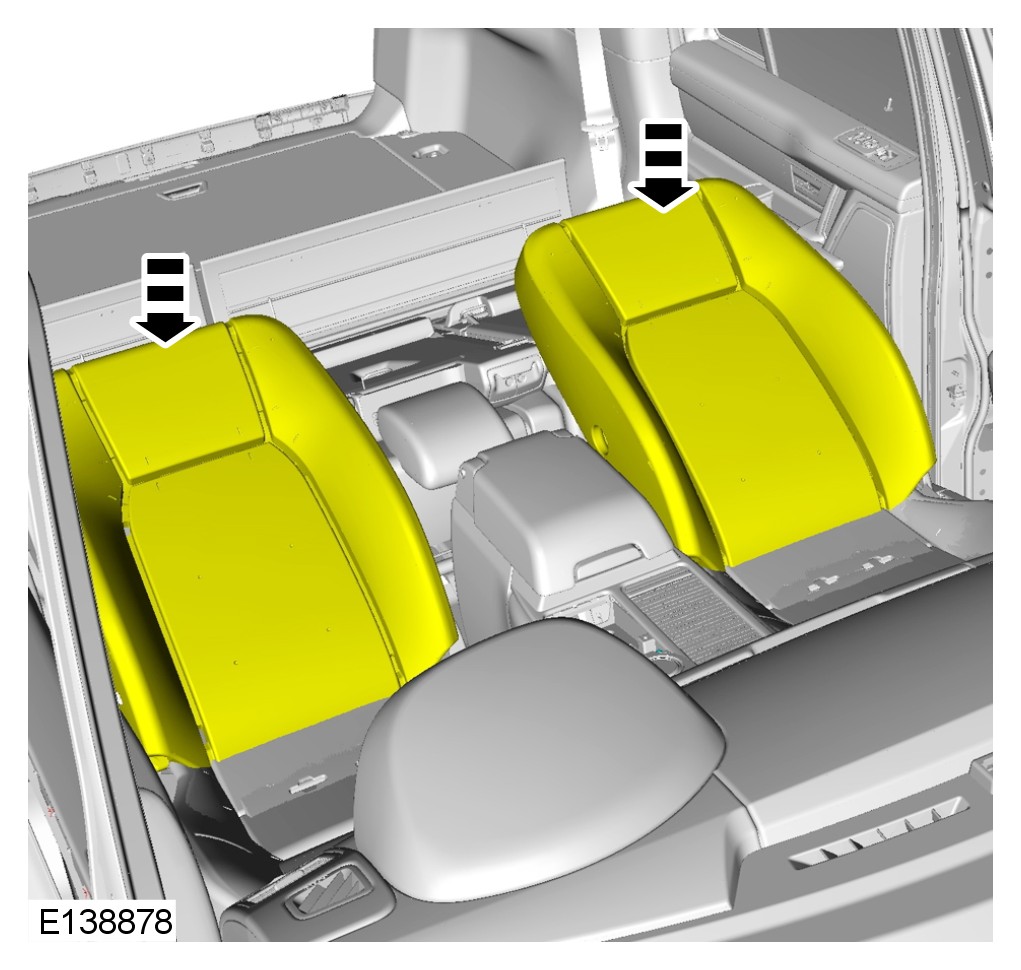

NOTE:
Repeat the procedure for the other side.

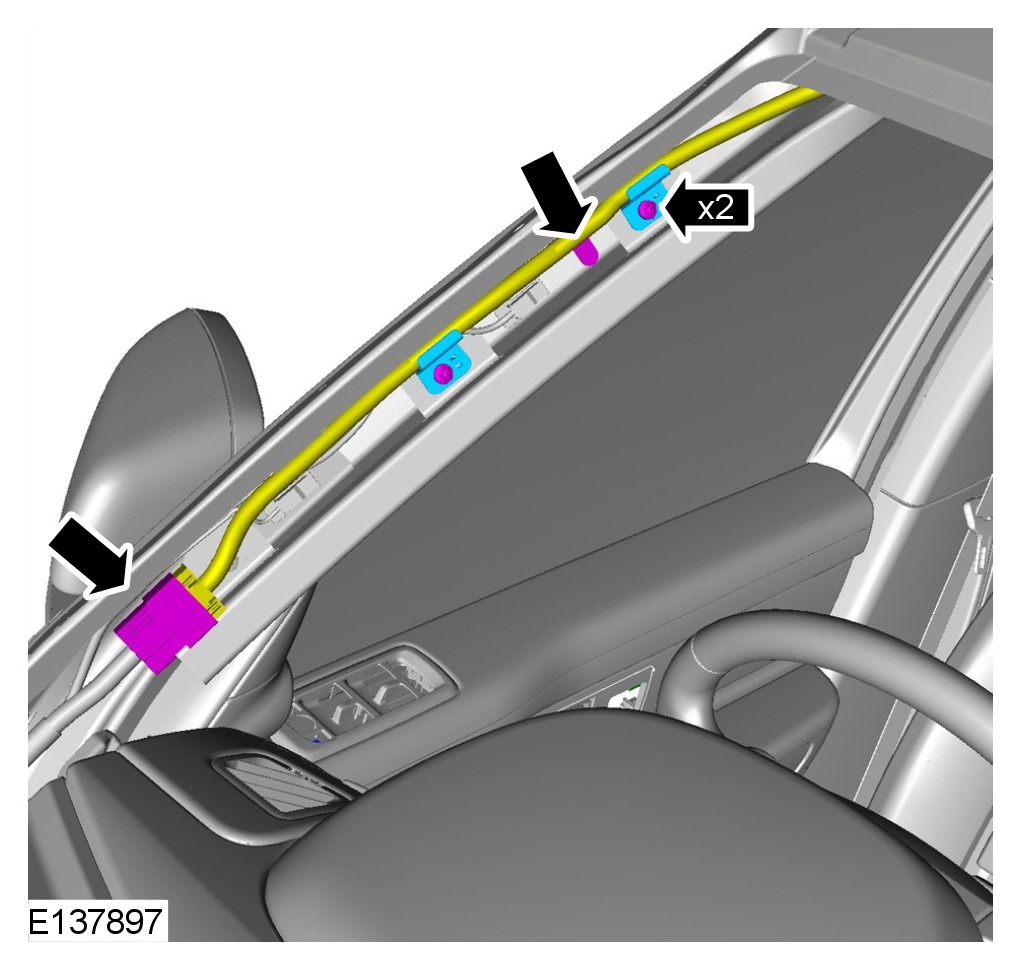

For additional information, refer to A-Pillar Trim Panel Pillar Trim

Torque to: 9 Nm

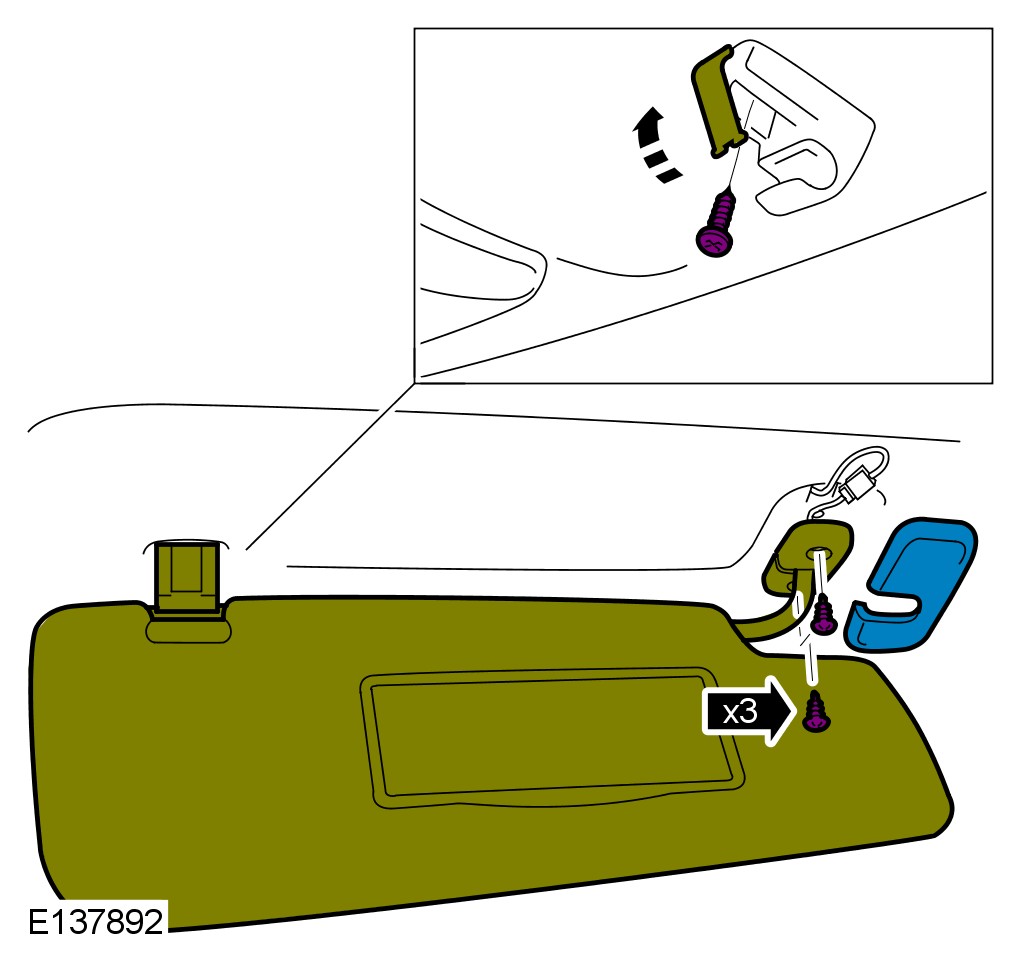

NOTE:
Repeat the procedure for the other side.

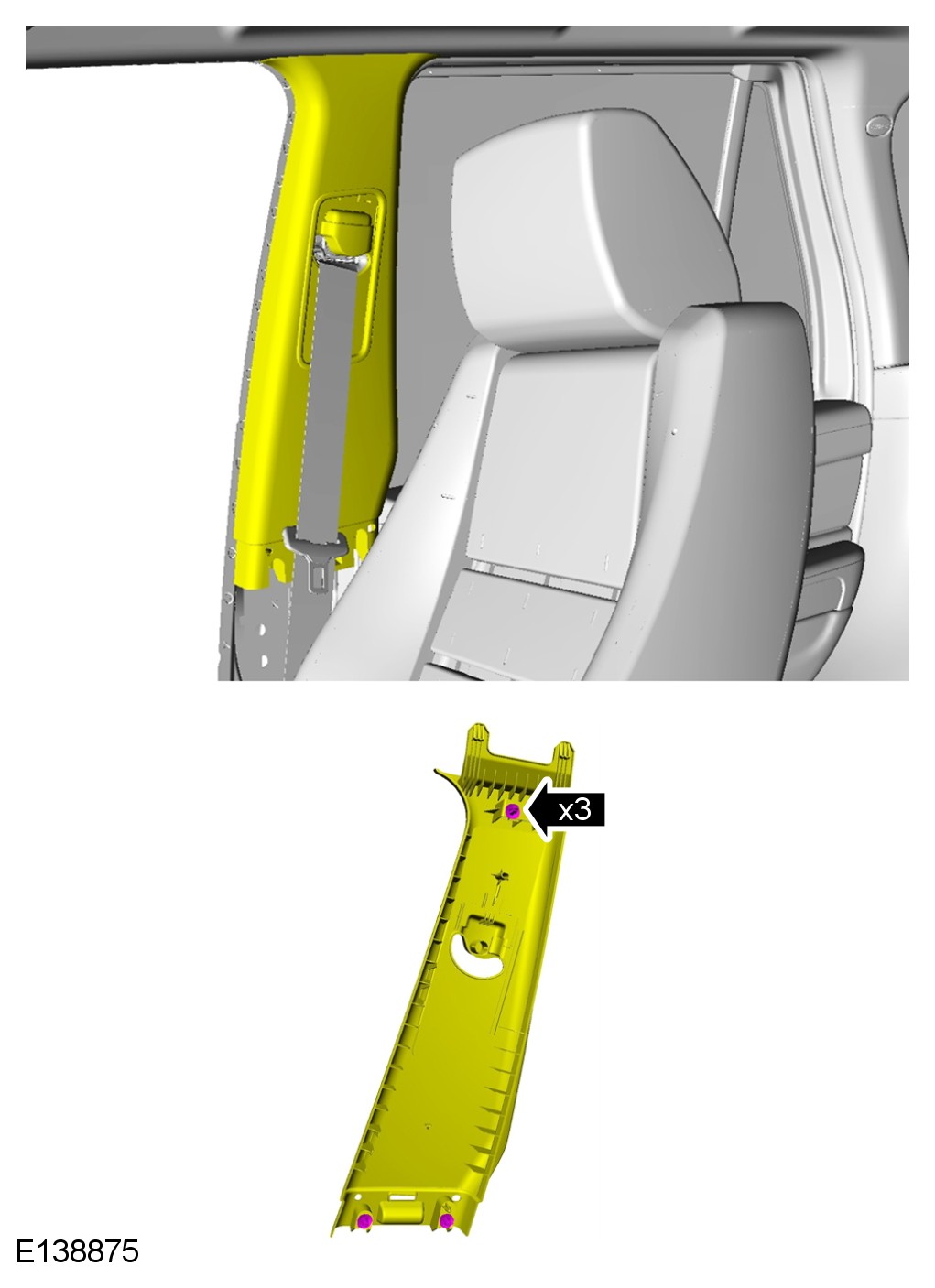

For additional information, refer to B-Pillar Lower Trim Panel B-Pillar Lower Trim Panel

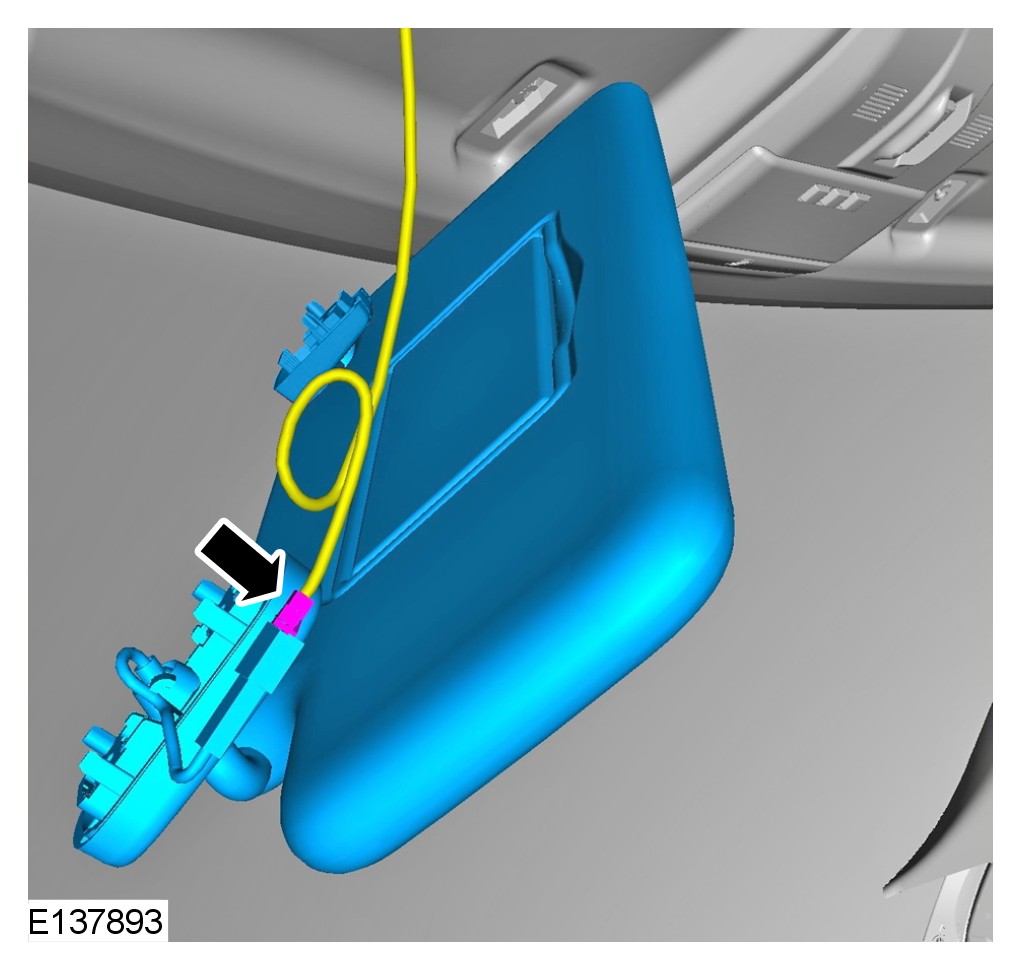

NOTE:
Repeat the procedure for the other side.

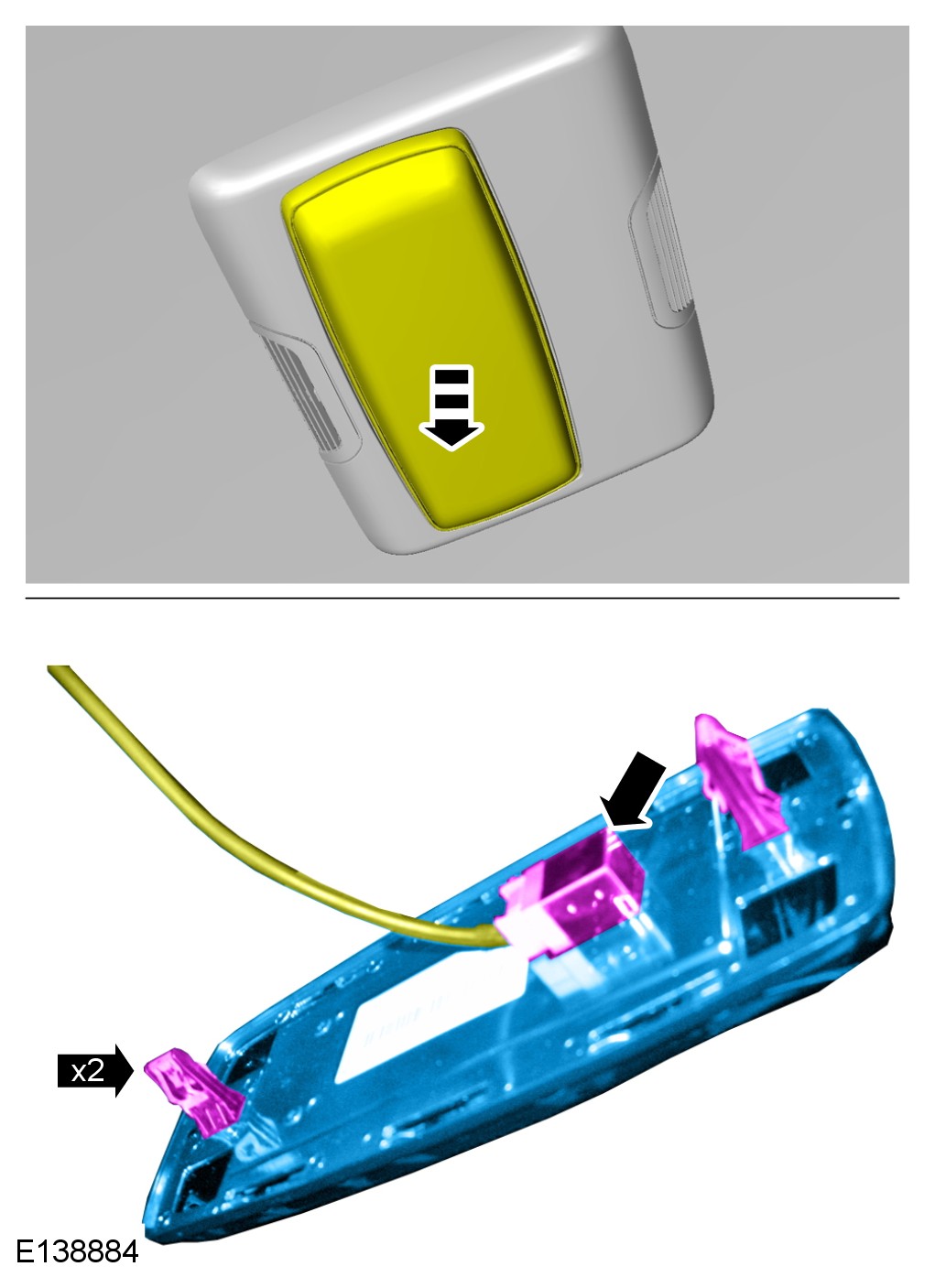

NOTE:
Repeat the procedure for the other side.

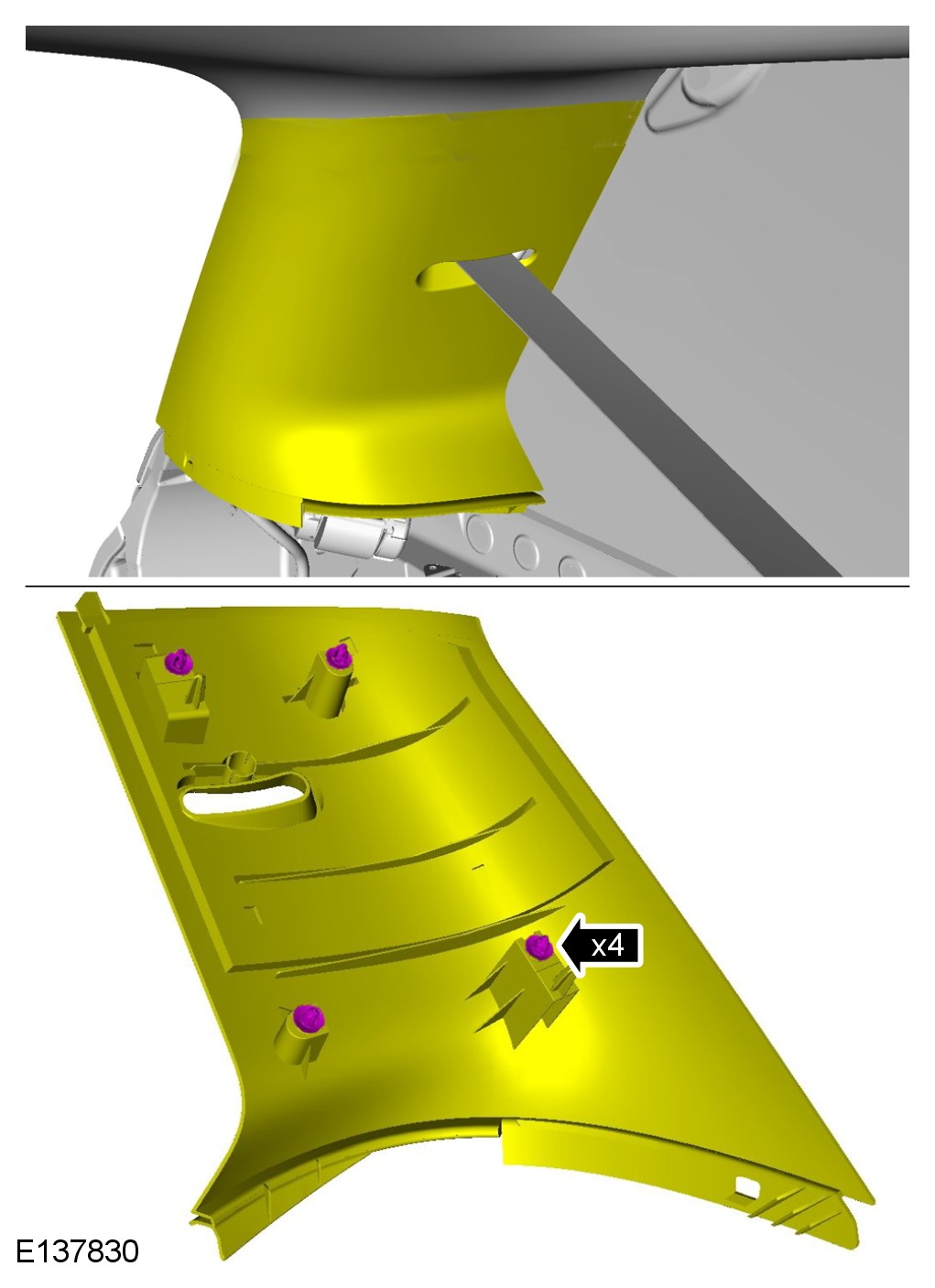

For additional information, refer to C-Pillar Upper Trim Panel C-Pillar Upper Trim Panel

NOTE:
Repeat the procedure for the other side.
For additional information, refer to Rear Quarter Trim Panel Rear Quarter Trim Panel

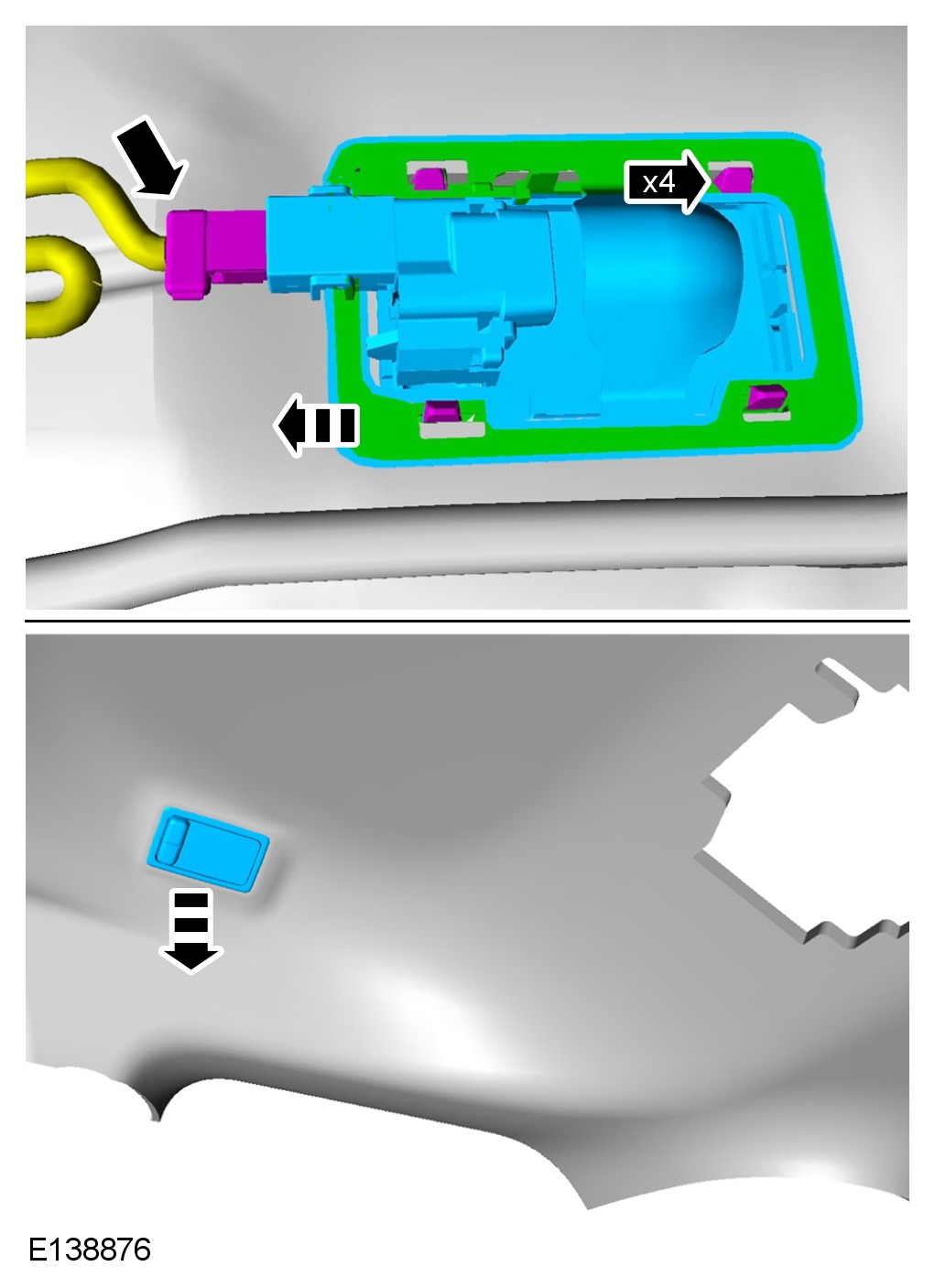

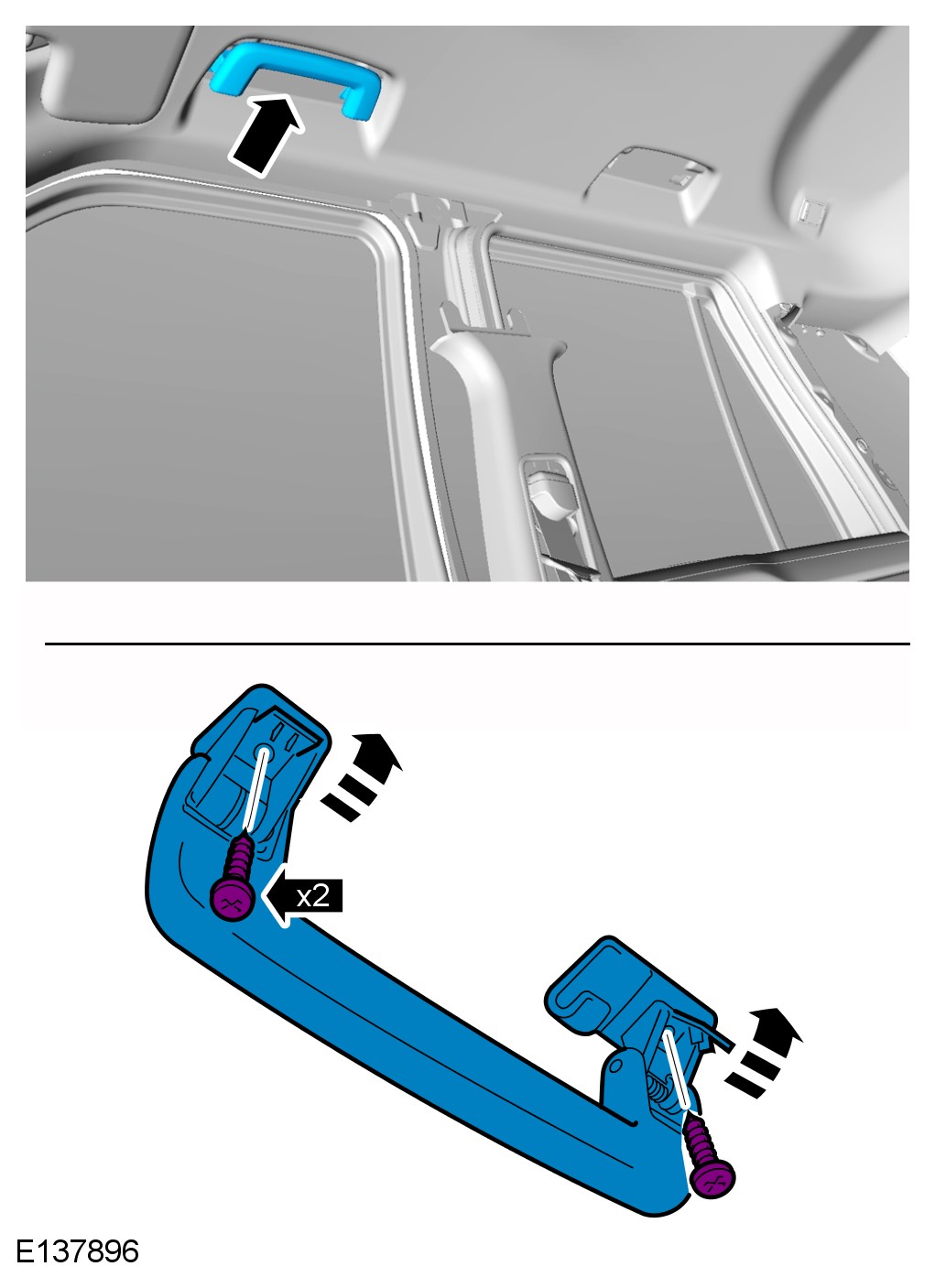

NOTE:
Repeat the procedure for the other side.

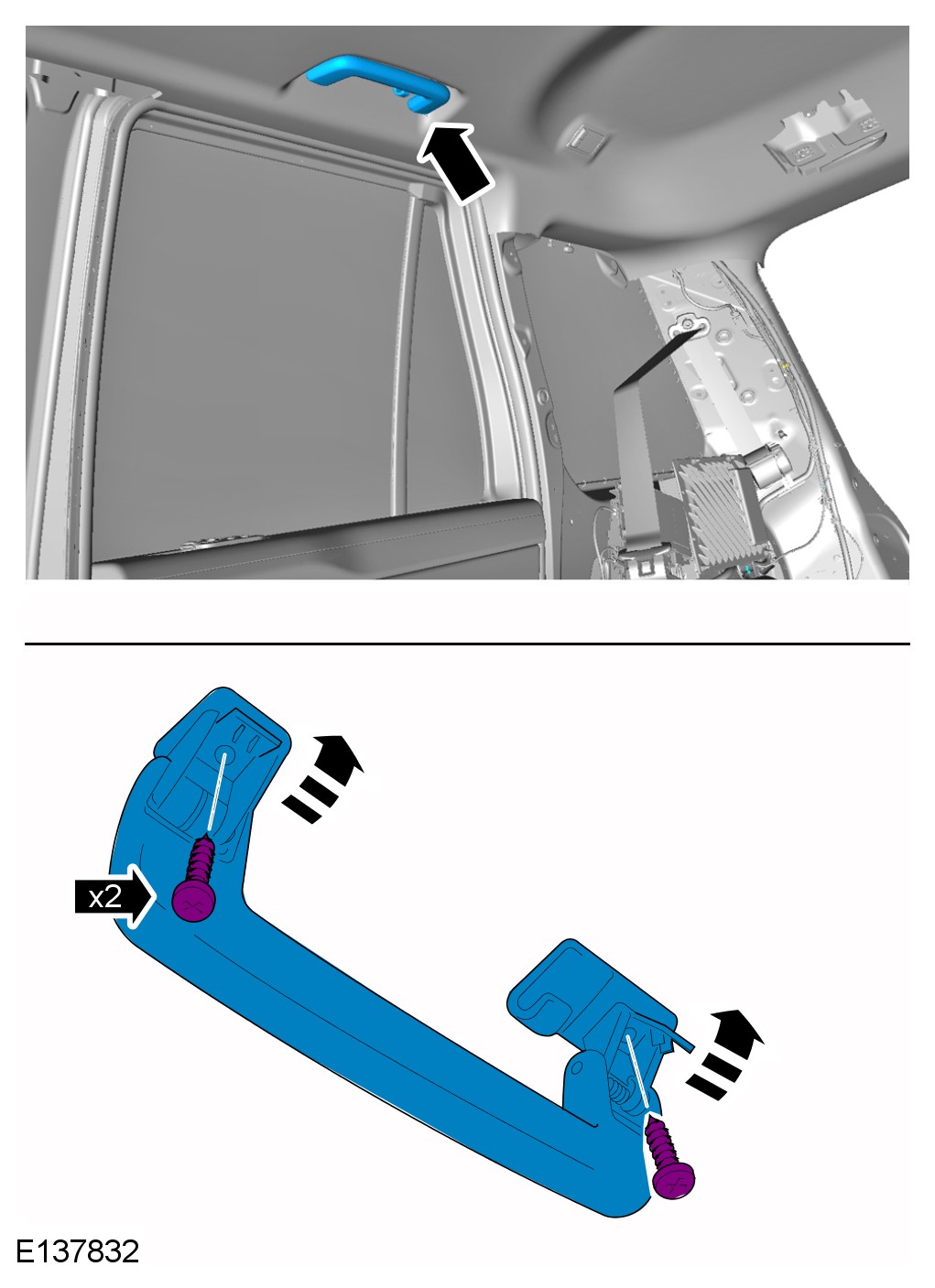

NOTE:
Repeat the procedure for the other side.

Torque to: 5 Nm

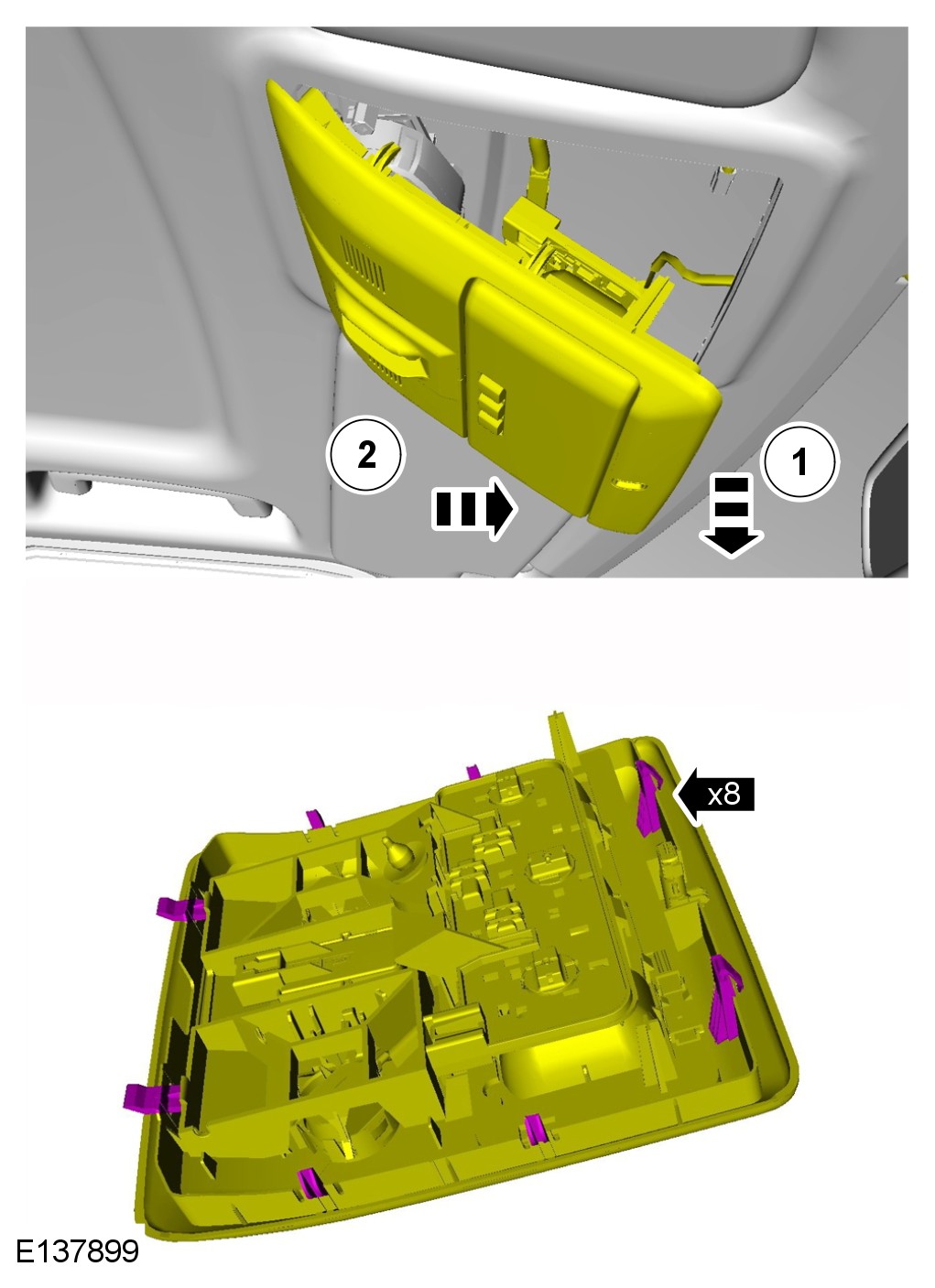

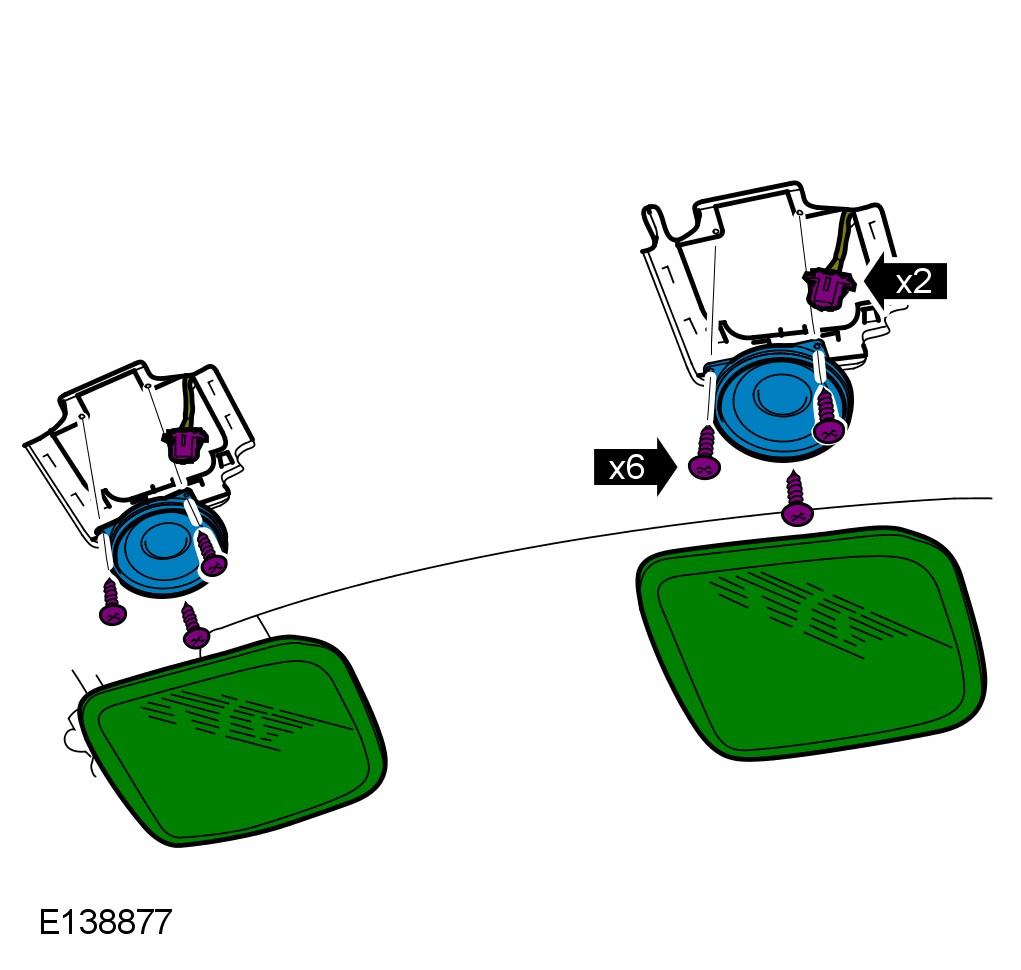

NOTE:
Repeat the procedure for the other side.

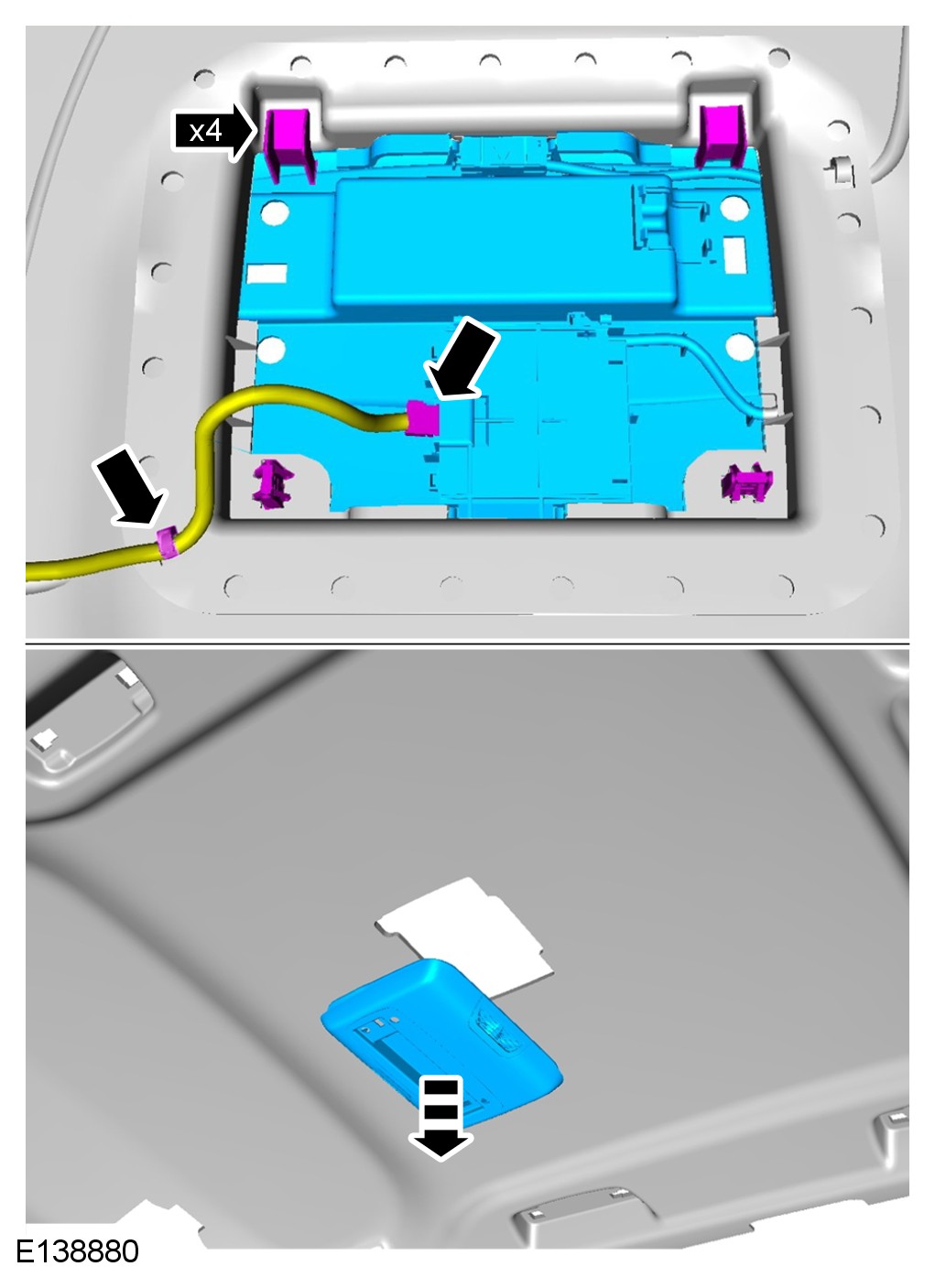

NOTE:
Repeat the procedure for the other side.

Torque to: 3 Nm

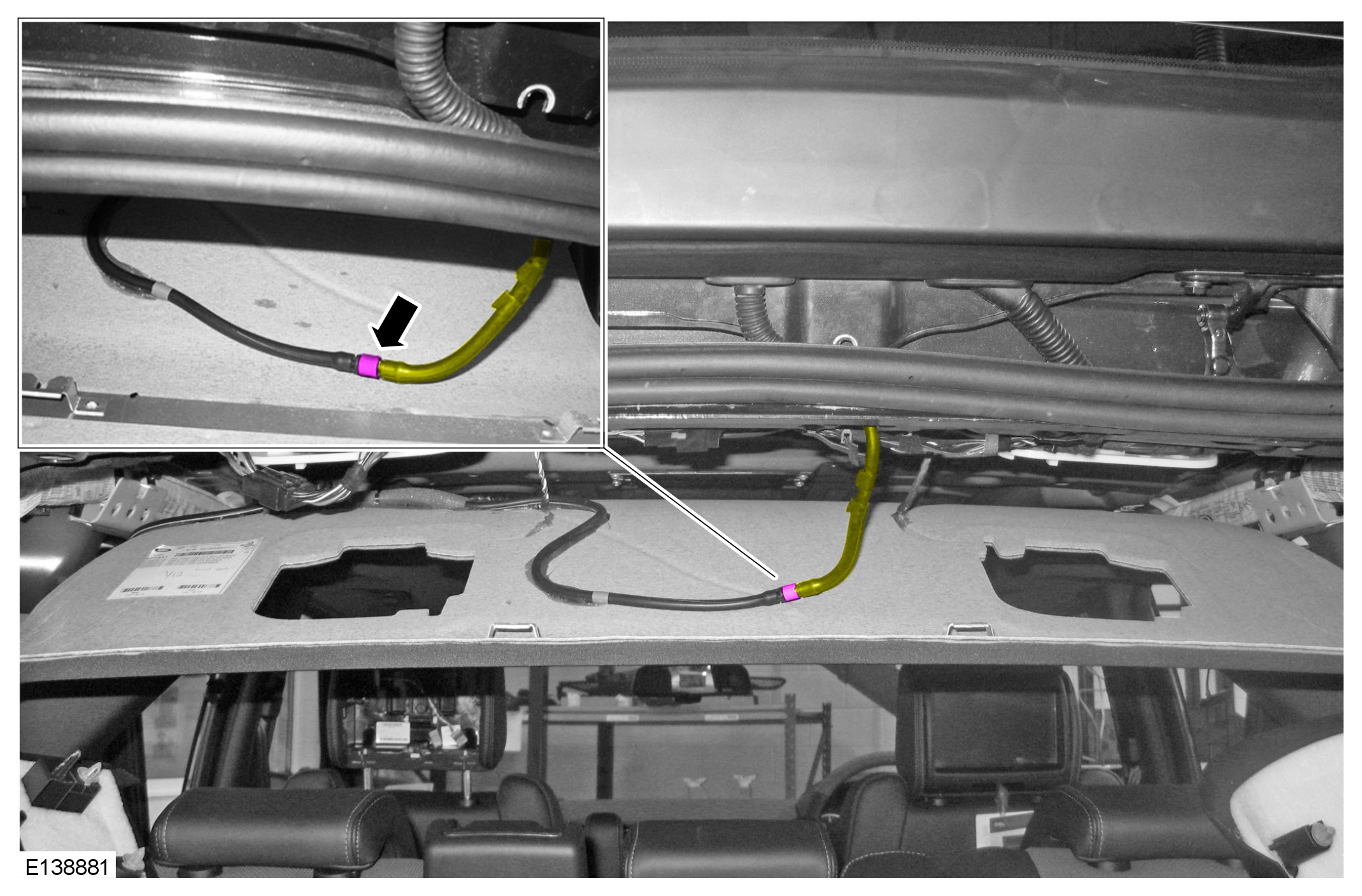

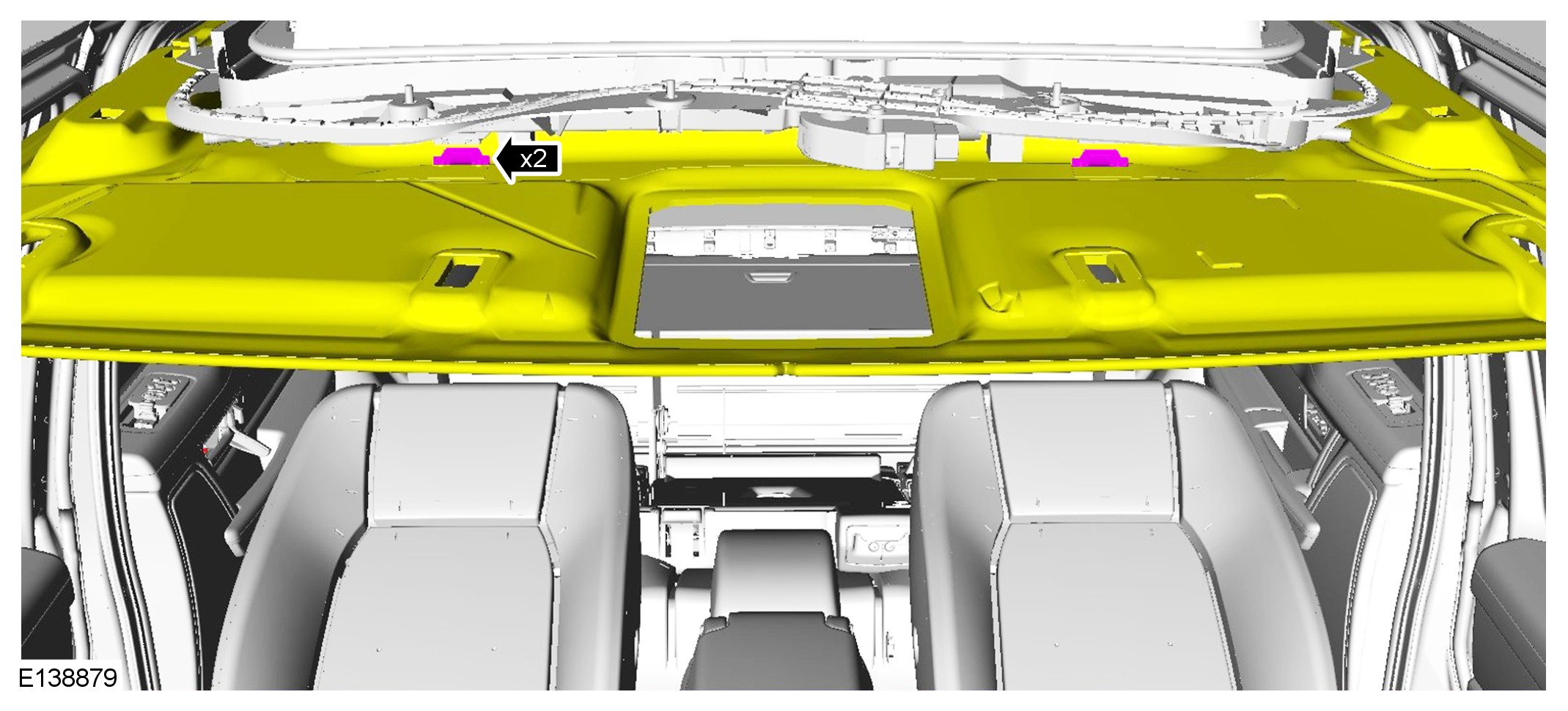

WARNING: This step requires the aid of another technician.

CAUTION: Make sure damage is not caused to the headliner.

NOTE:
Support as necessary.

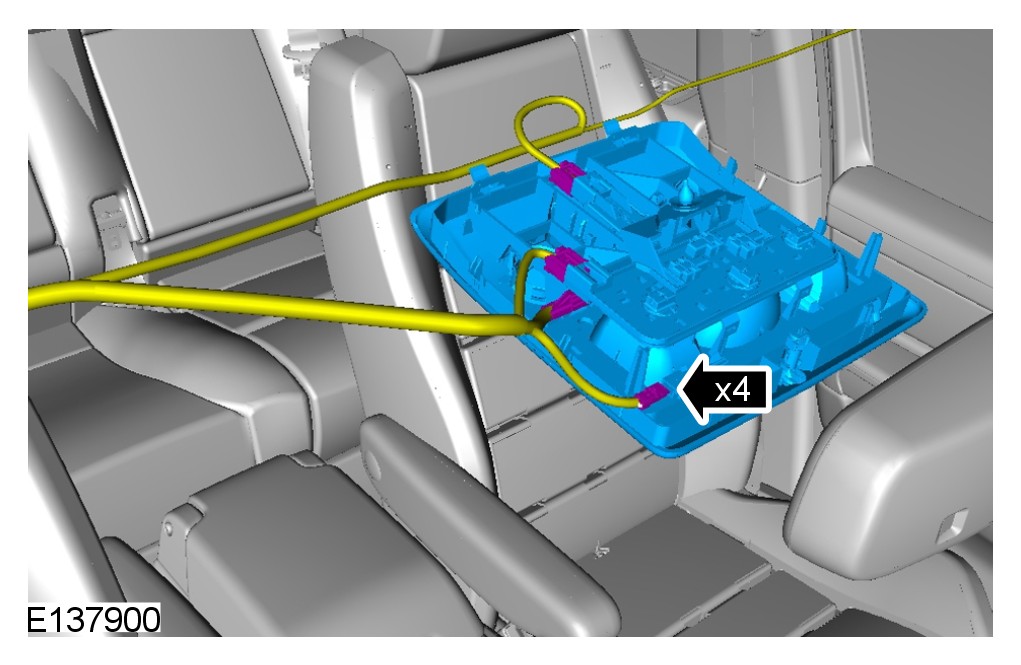

CAUTION: Make sure damage is not caused to the headliner.

NOTE:
Lower and reposition the headliner to aid access.

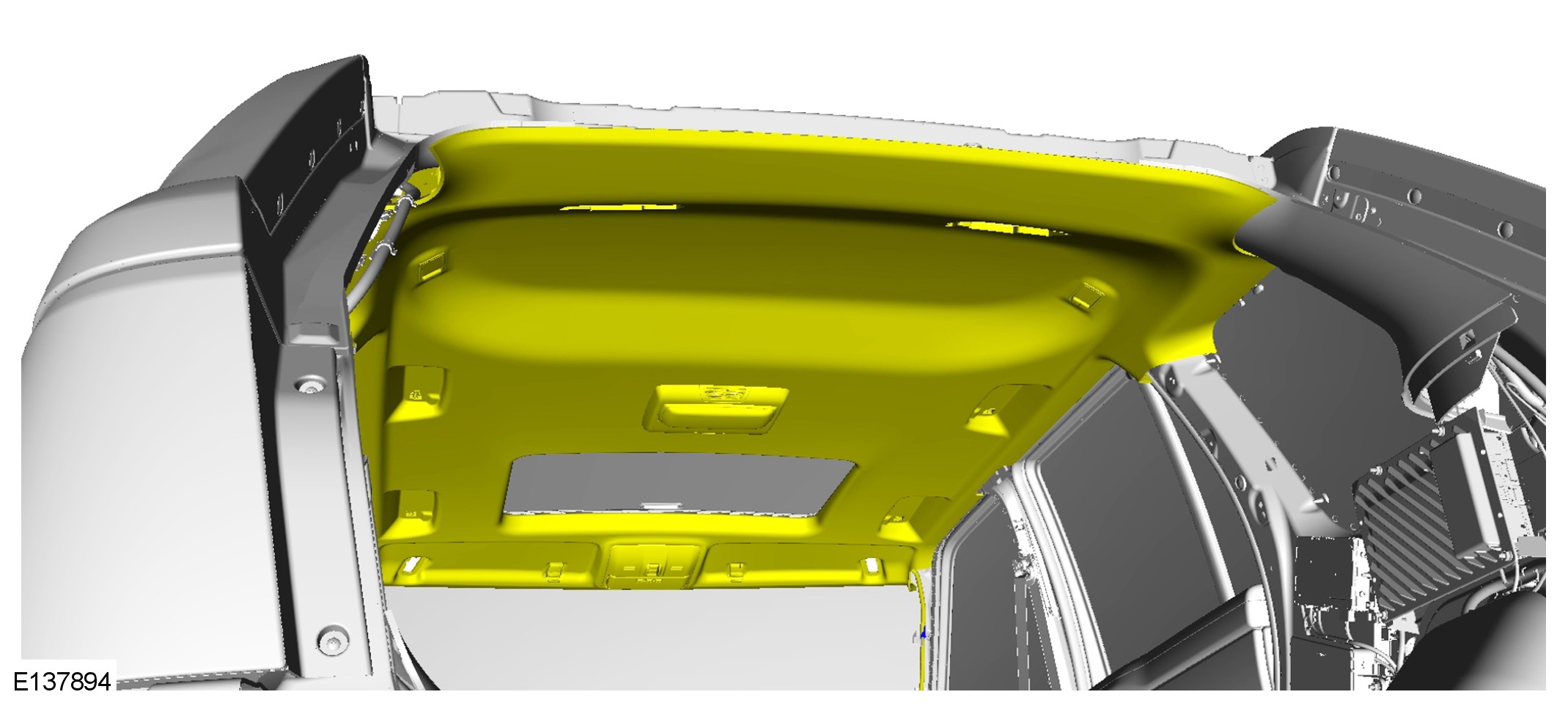

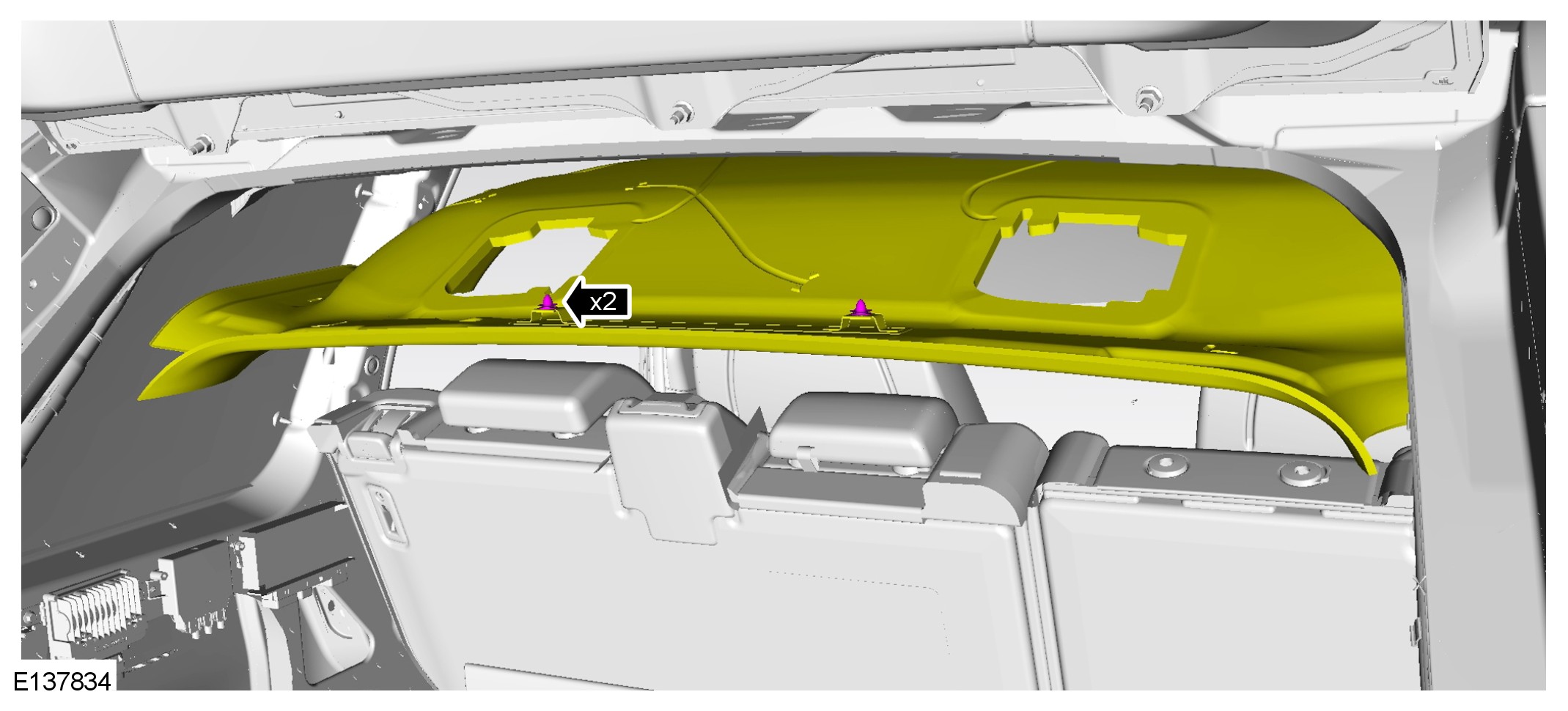

Vehicles without roof opening panel

CAUTION: Make sure damage is not caused to the headliner.

NOTE:
This step requires the aid of another technician.

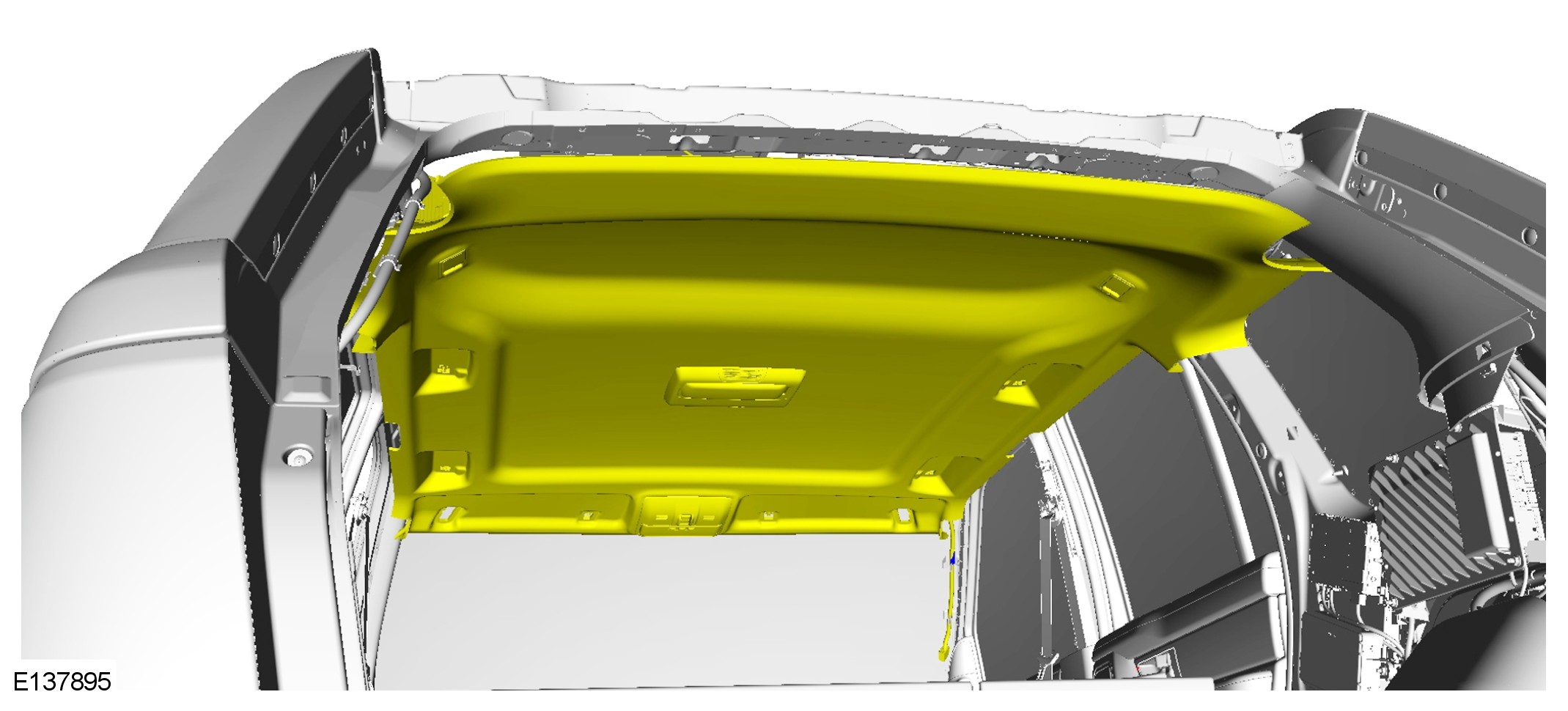

Vehicles with roof opening panel

WARNING: This step requires the aid of another technician.

NOTE:
Support as necessary.

WARNING: This step requires the aid of another technician.

CAUTION: Make sure damage is not caused to the headliner.

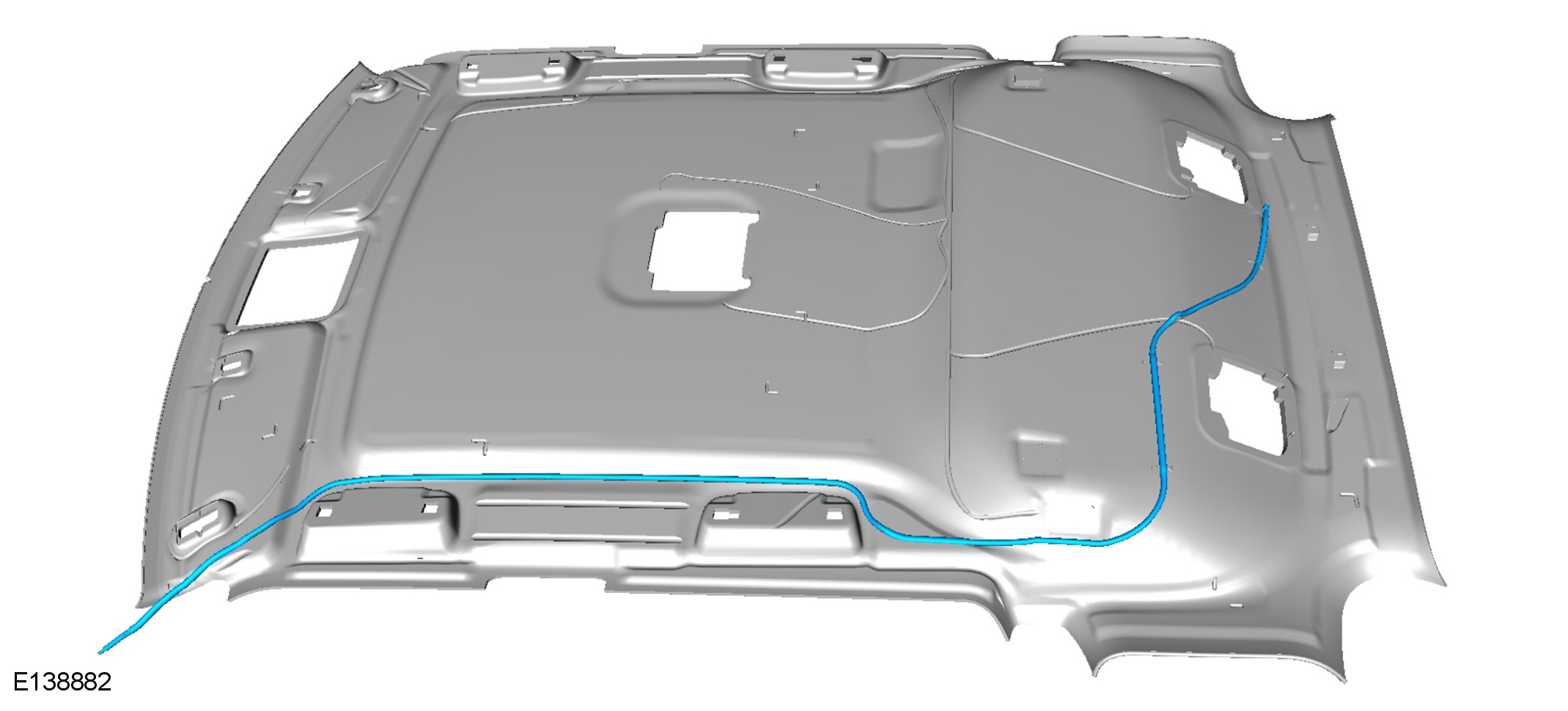

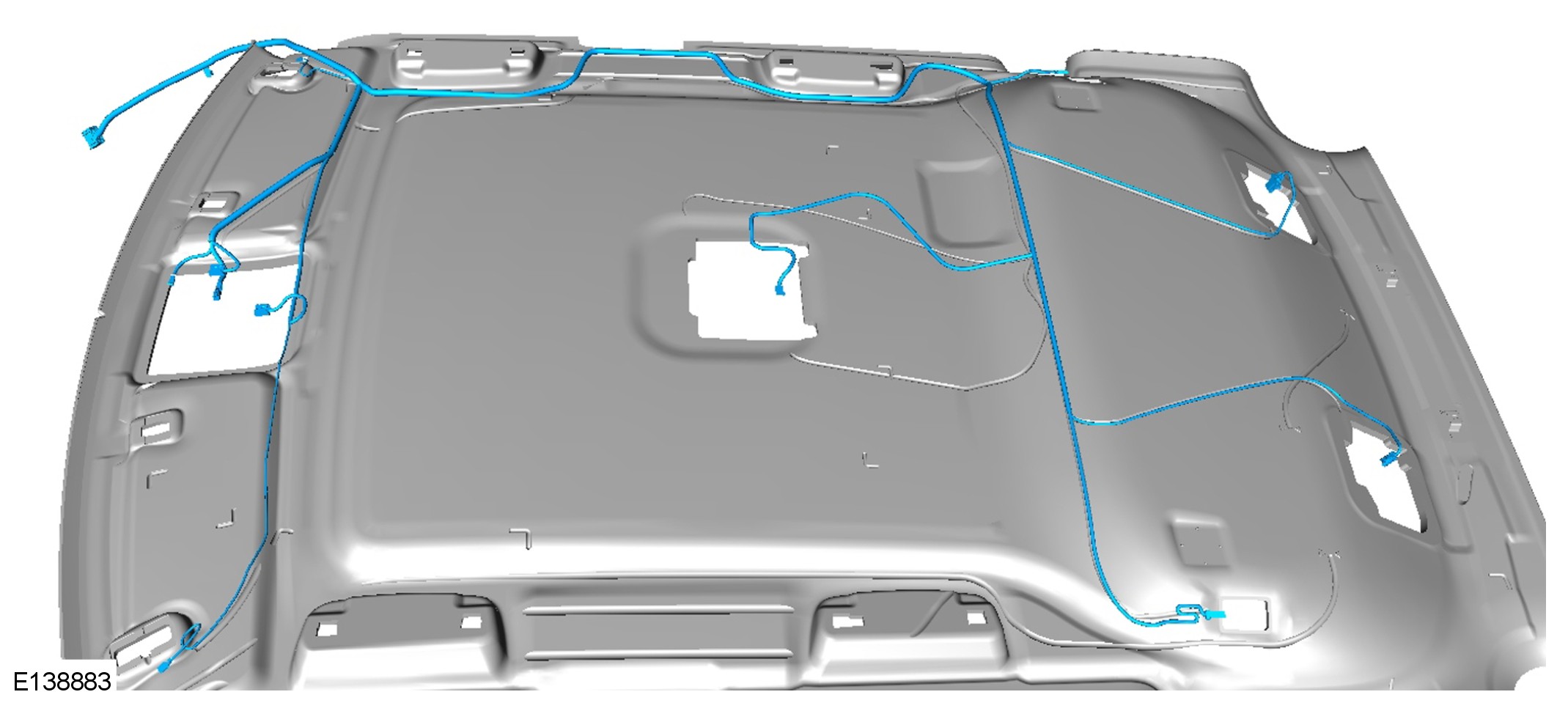

All vehicles

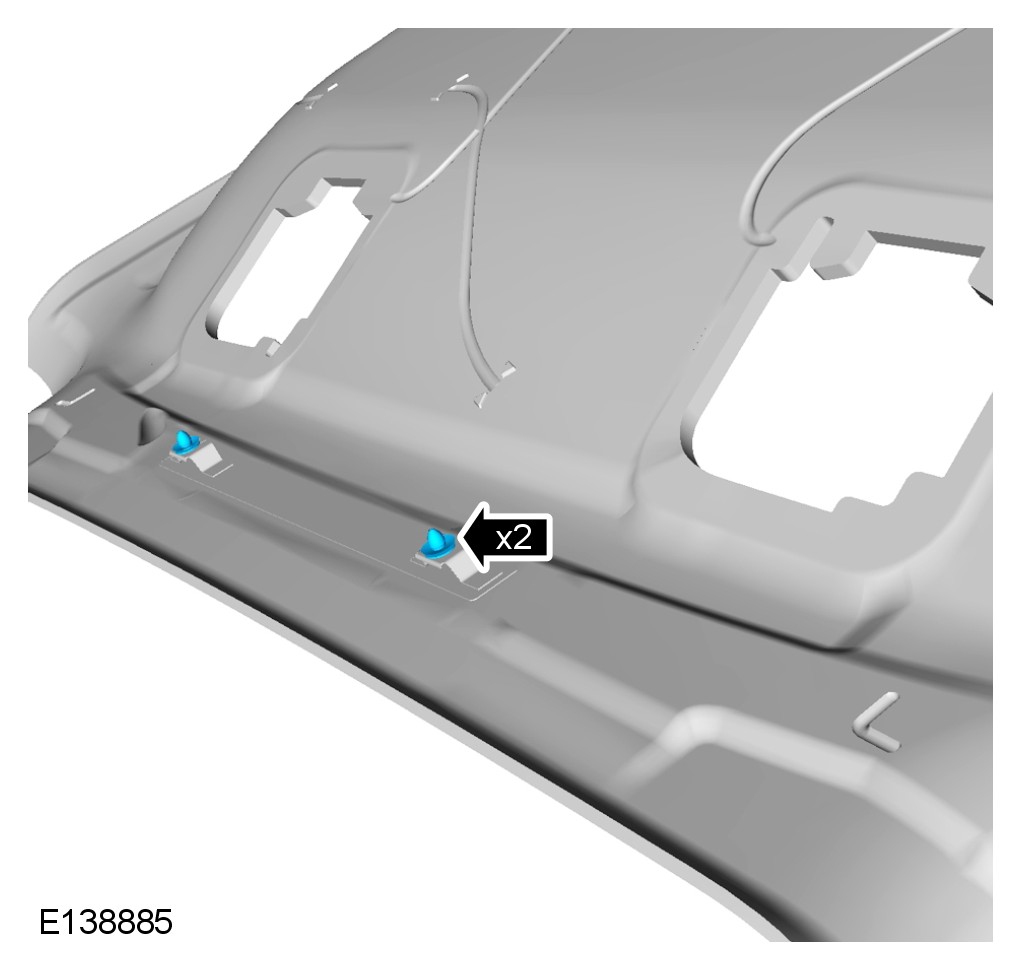

NOTE:
Do not disassemble further if the component is removed for access only.

NOTE:
Repeat the procedure for the other side.

CAUTION: Make sure damage is not caused to the headliner.

Installation
1 To install, reverse the removal procedure.
