Speaker: Description and Operation

Speakers

LOW LINE AUDIO SYSTEM

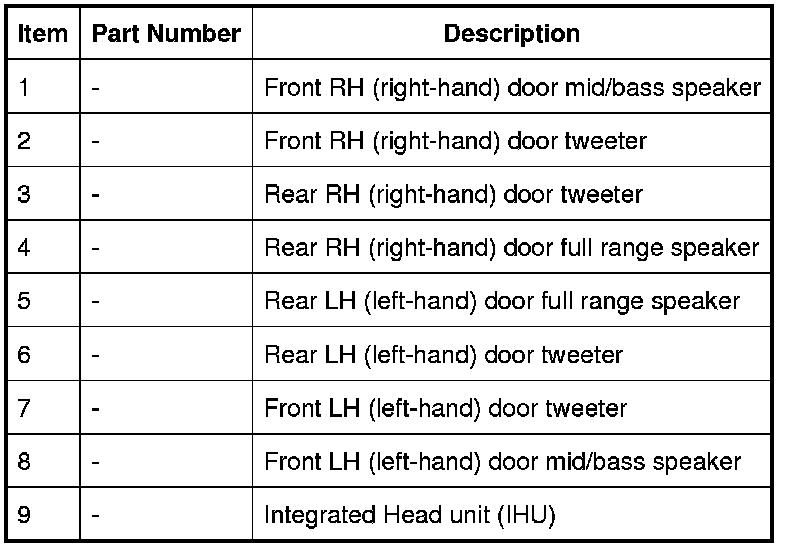

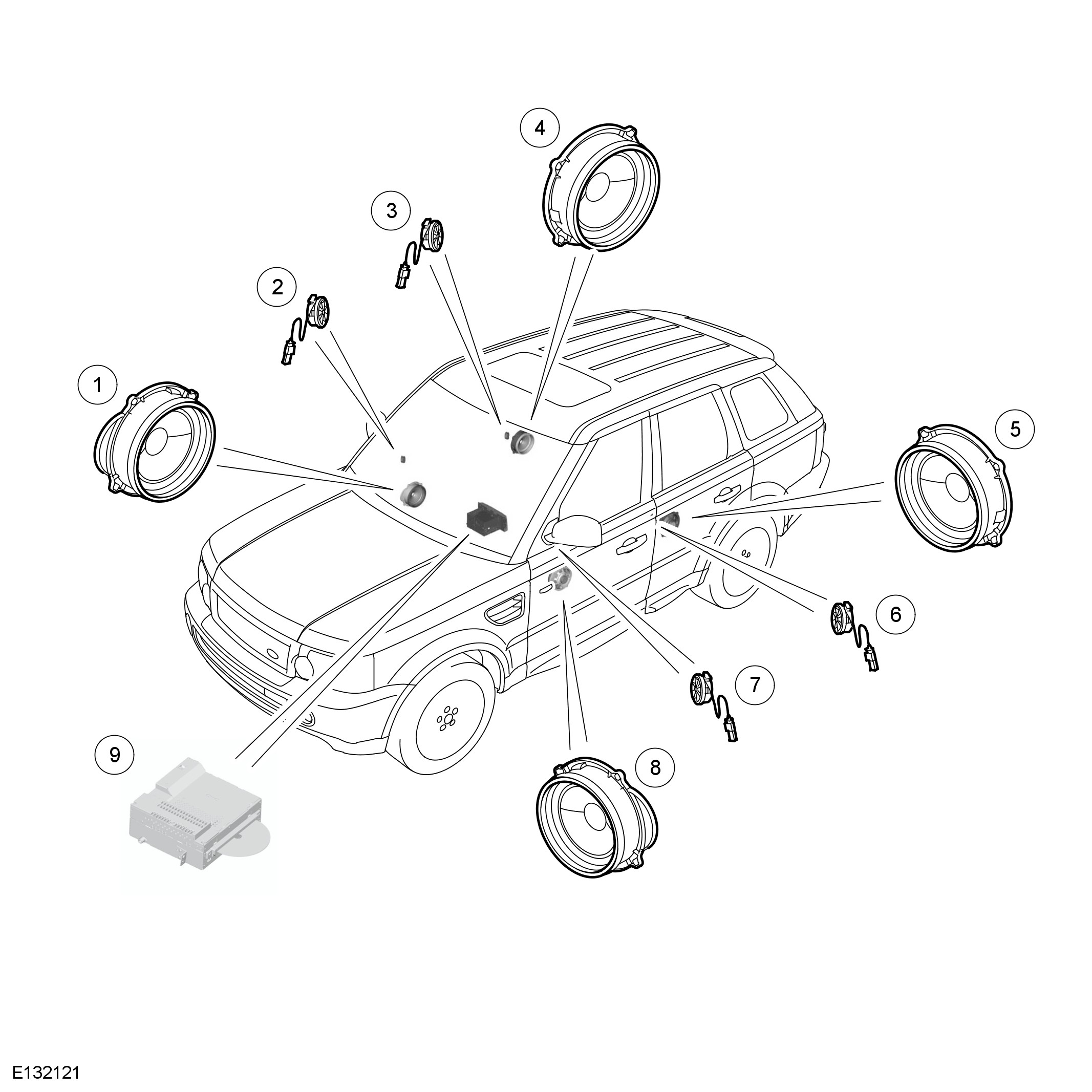

Low Line Audio System Speaker Component Location

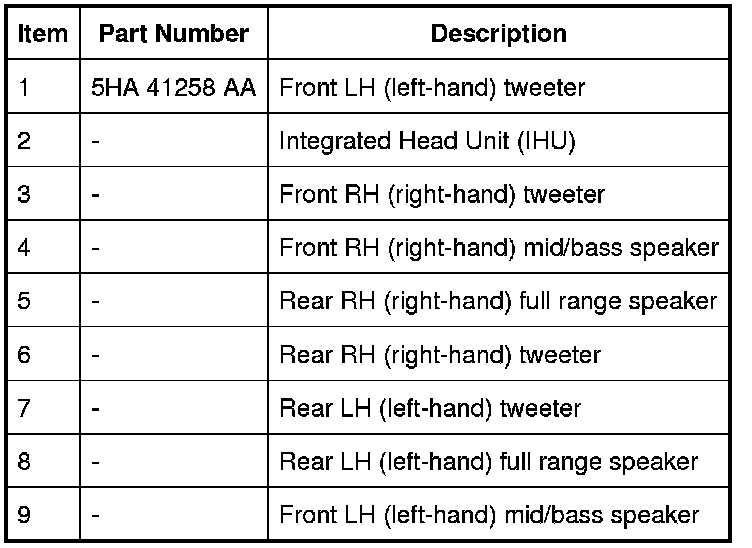

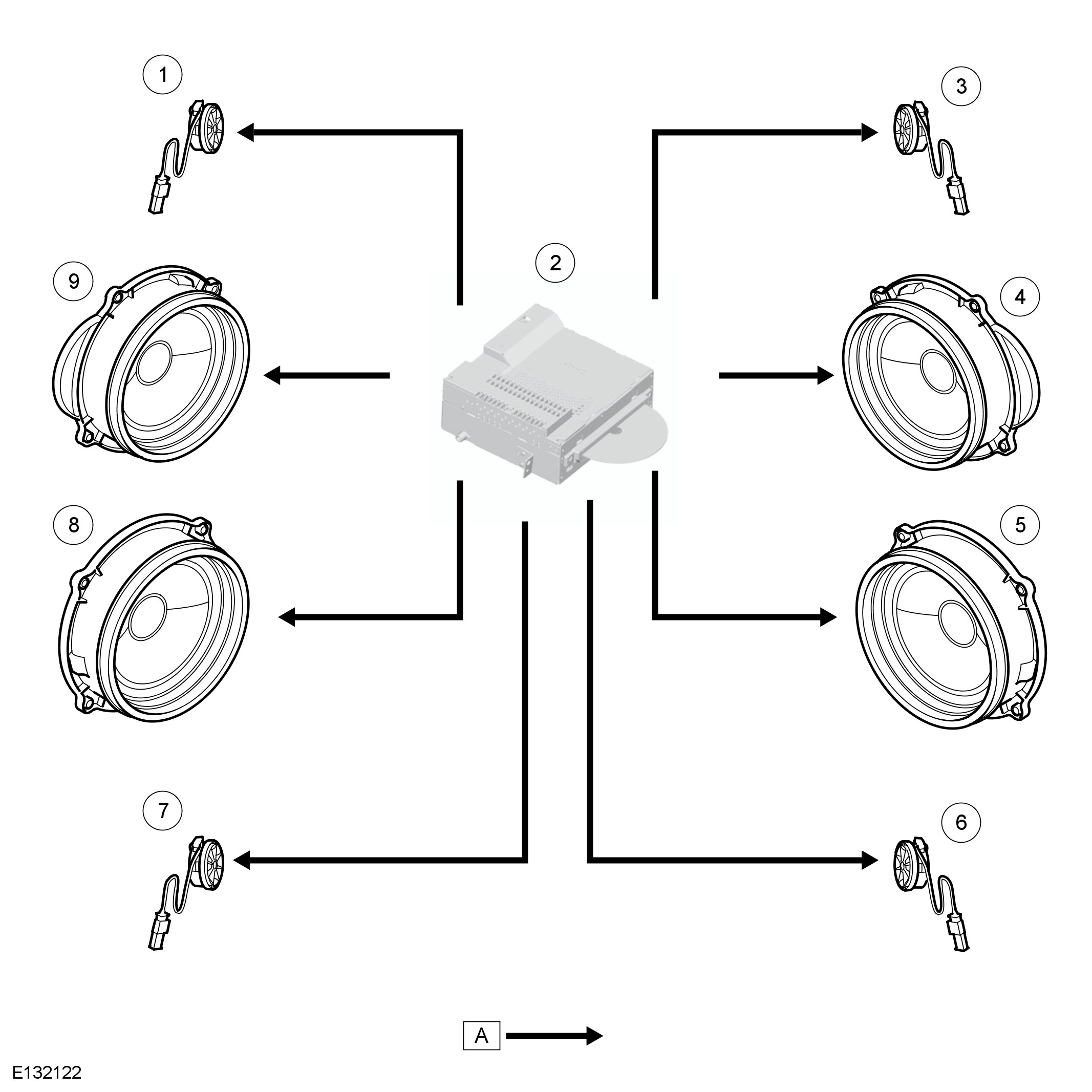

Low Line Audio System Speaker Control Diagram

NOTE:
A= Hardwired









The low line audio speaker system is driven directly from the Integrated Head Unit (IHU)For additional information, refer to Audio System .The system comprises:
- Head unit
- Two front door mounted mid/bass speakers (one per side)
- Two front door mounted tweeters (one per side)
- Two rear door mounted full range speakers (one per side).
- Two rear door mounted tweeters (one per side)

HIGH LINE-HARMAN/KARDON AUDIO SYSTEM

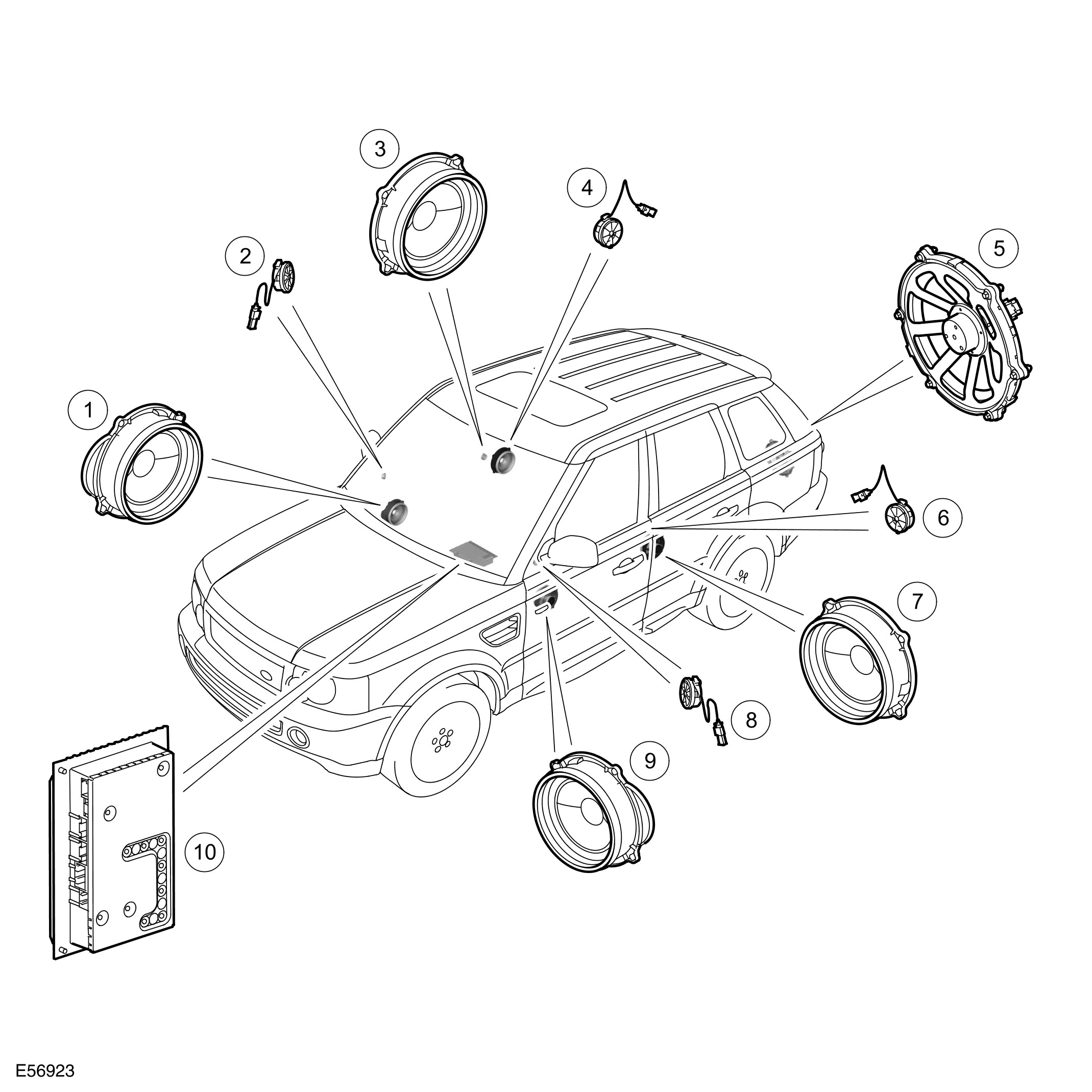

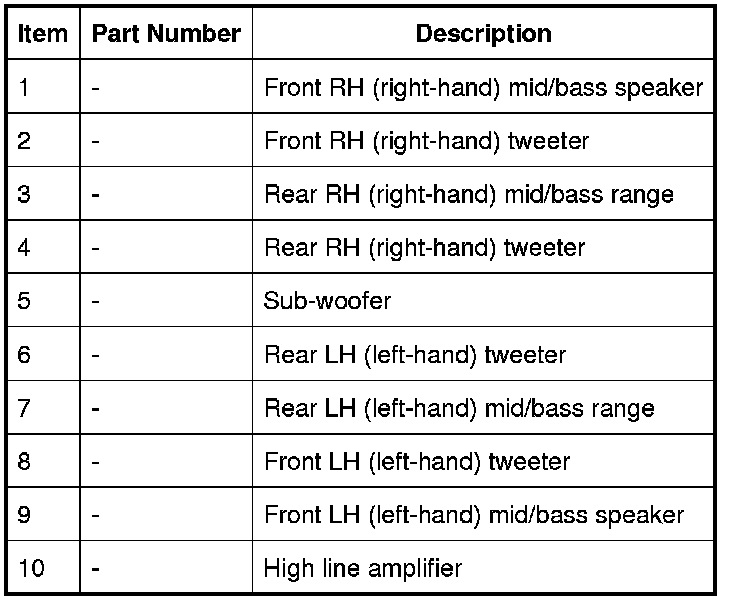

High line-Harman/Kardon Audio System Speaker Component Location

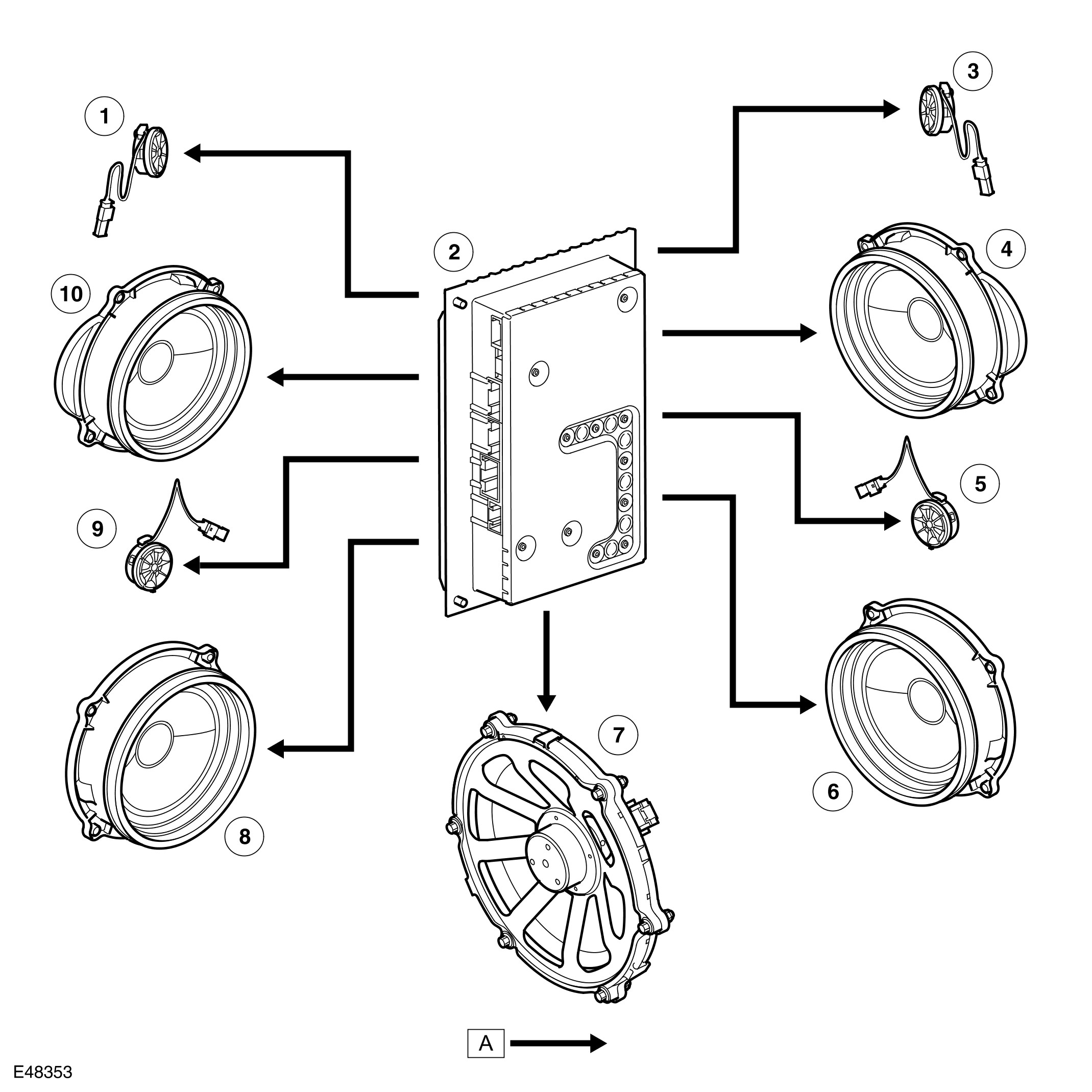

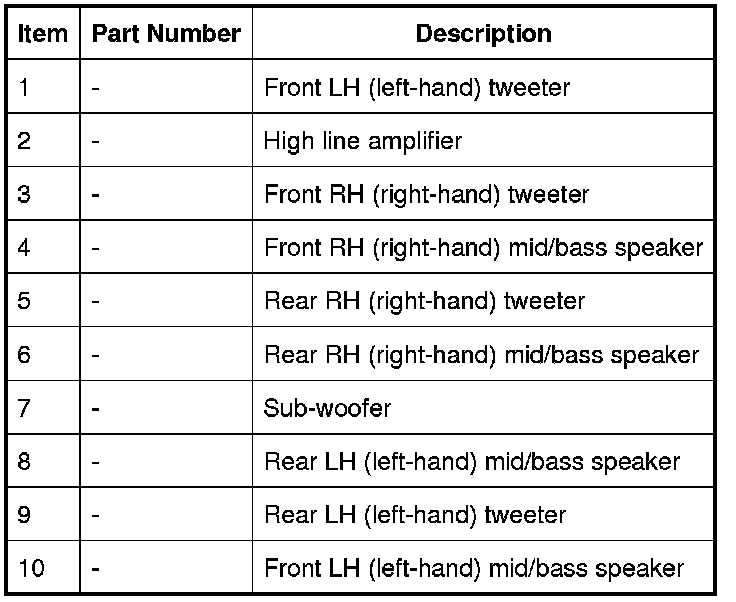

High line-Harman/Kardon Audio System Speaker Control Diagram

NOTE:
A= Hardwired









The High line-Harman/Kardon audio speaker system is driven by an amplifier located under the RH (right-hand) front seat. The amplifier is controlled by the Integrated Head Unit (IHU) on the MOST bus and supplies 6x50 Watts output, giving a total system power rating of 300 Watts For additional information, refer to Audio System . The system comprises:
- Integrated Head Unit (IHU) Head unit
- Two front door mounted mid/bass range speakers (one per side)
- Two front door mounted tweeters (one per side)
- Two rear door mounted mid/bass range speakers (one per side)
- Two rear door mounted tweeters (one per side)
- A sub-woofer located in the lower tailgate
- An audio amplifier located under the front RH (right-hand) seat.

PREMIUM AUDIO SYSTEM - HARMAN/KARDON LOGIC7

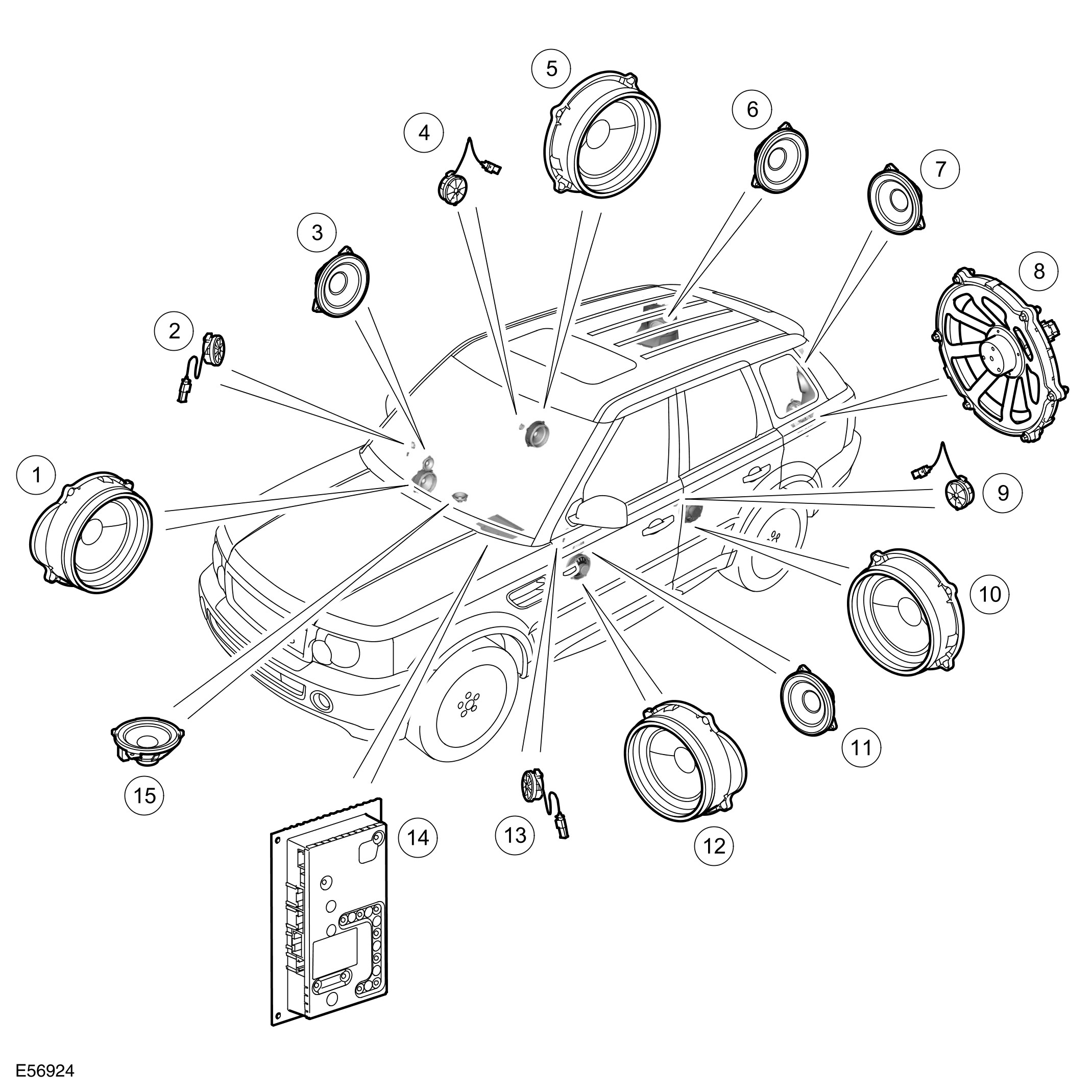

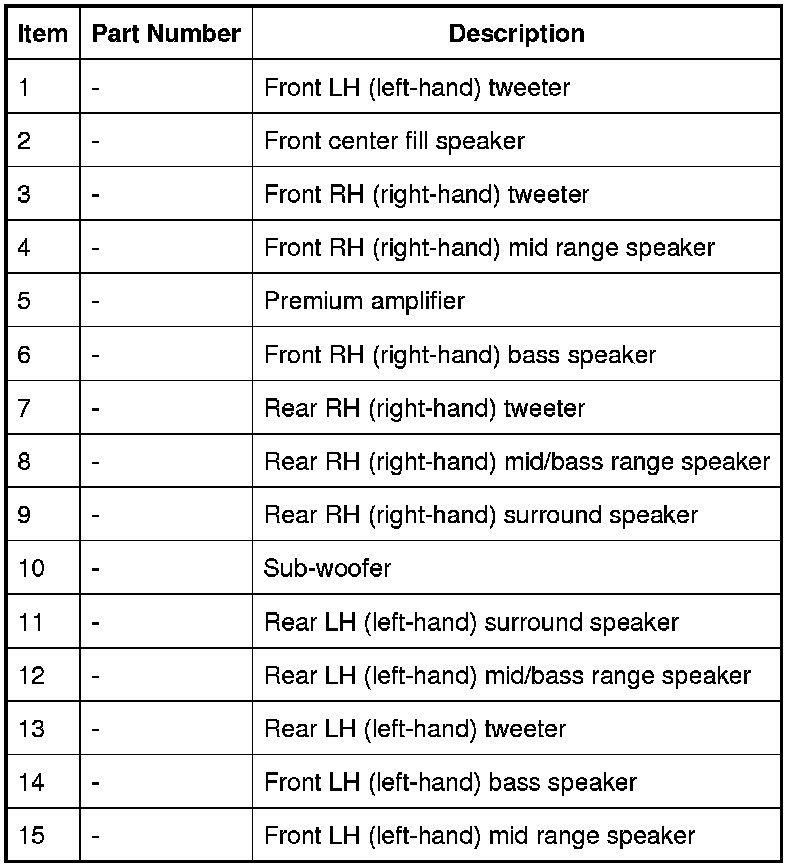

Premium Audio - Harman/Kardon LOGIC7 Audio System Speaker Component Location

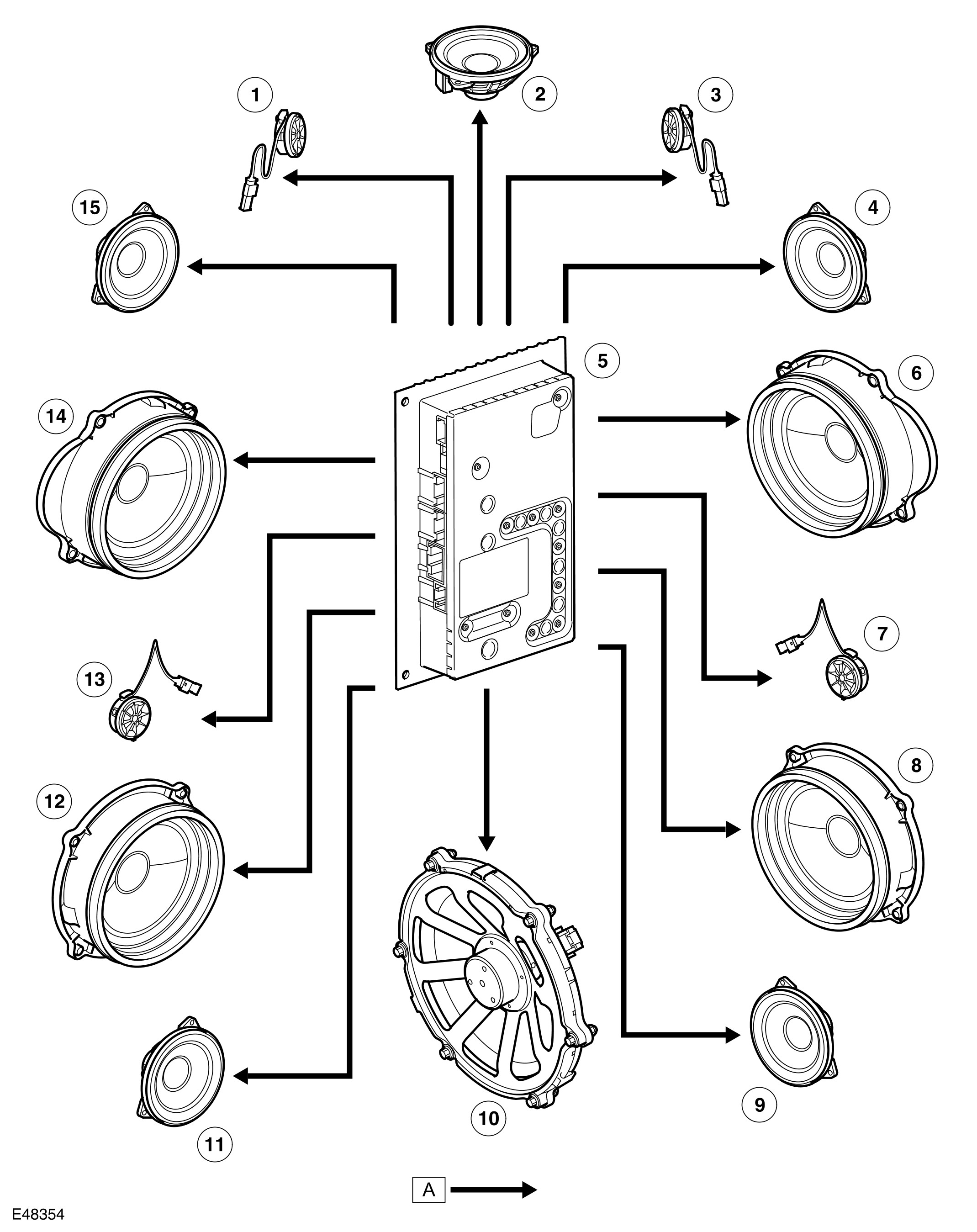

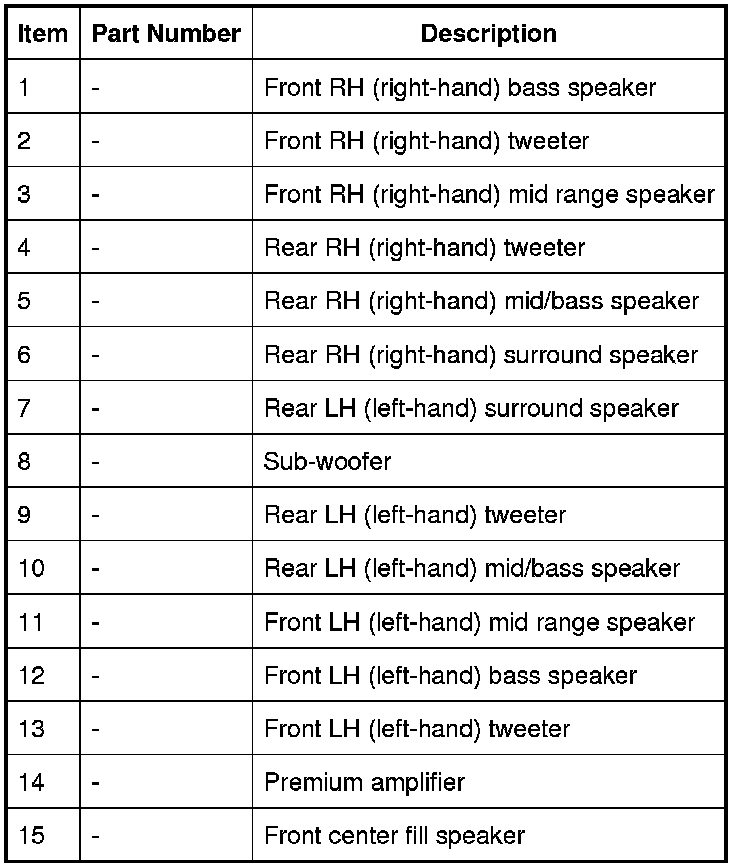

Premium Audio - Harman/Kardon LOGIC7 Audio System Speaker Control Diagram

NOTE:
A= Hardwired









The Premium Audio - Harman/Kardon LOGIC7 audio speaker system is driven by an amplifier located under the RH (right-hand) front seat. The amplifier is controlled by the Integrated Head Unit (IHU) on the MOST bus and supplies 12x50 Watts output, giving a total system power rating of 600 Watts. The system comprises:
- Integrated Head Unit (IHU) Head unit
- Two front door mounted mid range speakers (one per side)
- Two front door mounted bass speakers (one per side)
- Two front door mounted tweeters (one per side)
- Two rear door mounted mid/bass range speakers (one per side)
- Two rear door mounted tweeters (one per side)
- A sub-woofer located in the lower tailgate
- Two rear surround speakers
- One center fill speaker located in the center of the instrument panel
- Premium amplifier.
