Transmission Fluid Cooler

Transmission Fluid Cooler
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

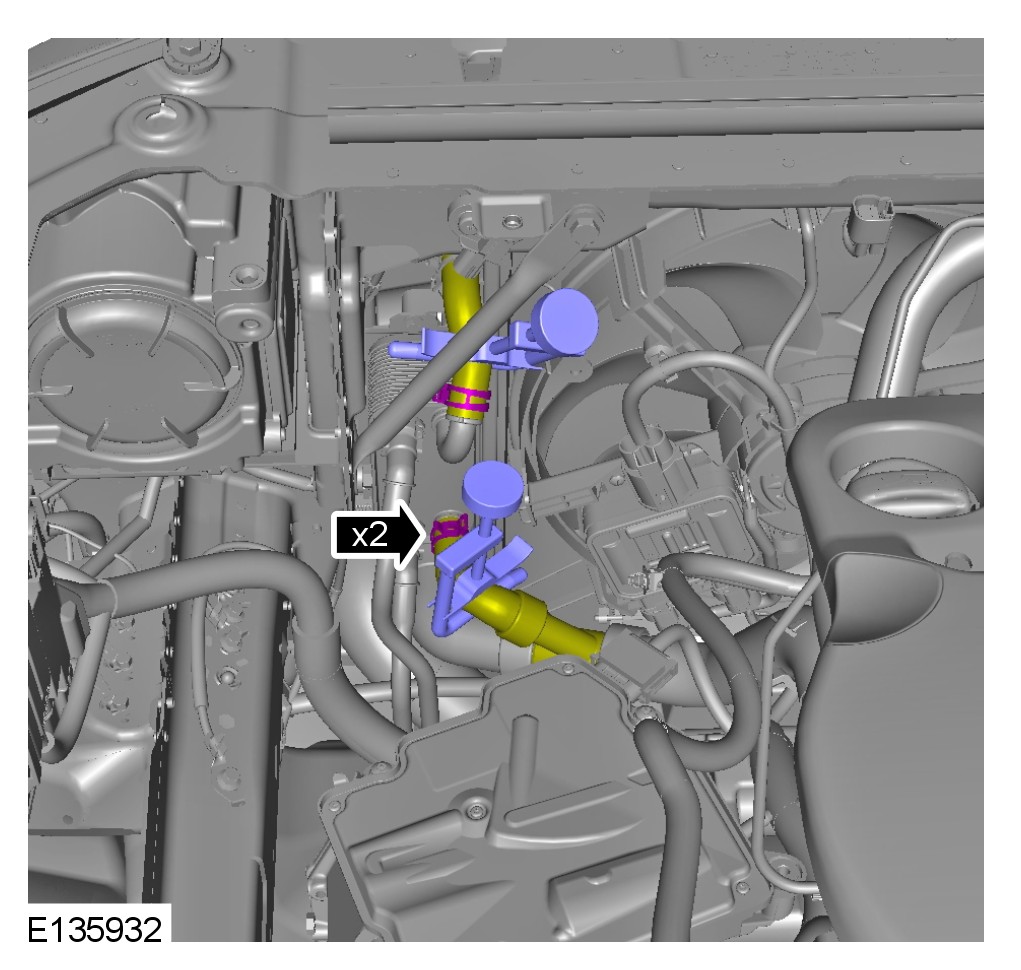

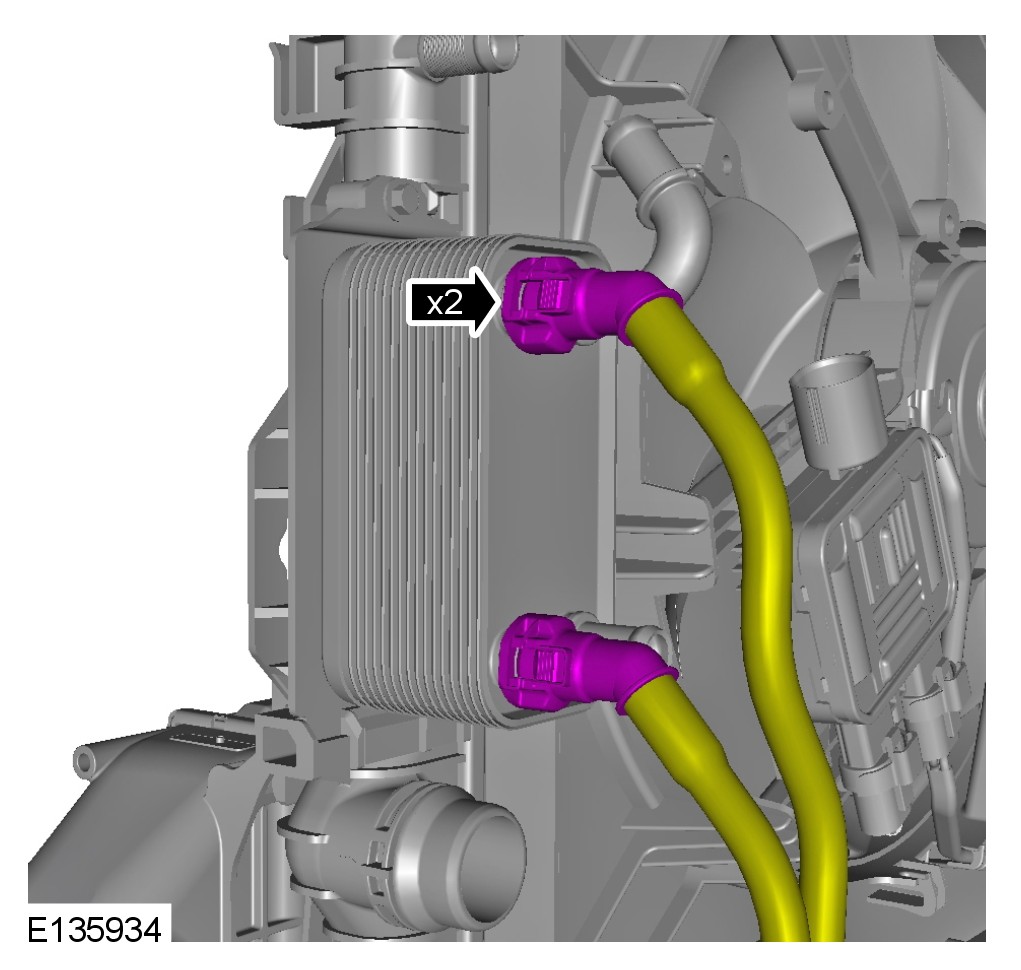

Removal

NOTE:
Removal steps in this procedure may contain installation details.
For additional information, refer to Air Cleaner Air Cleaner





CAUTION: Be prepared to collect escaping coolant.





WARNING: Be prepared to collect escaping fluid.

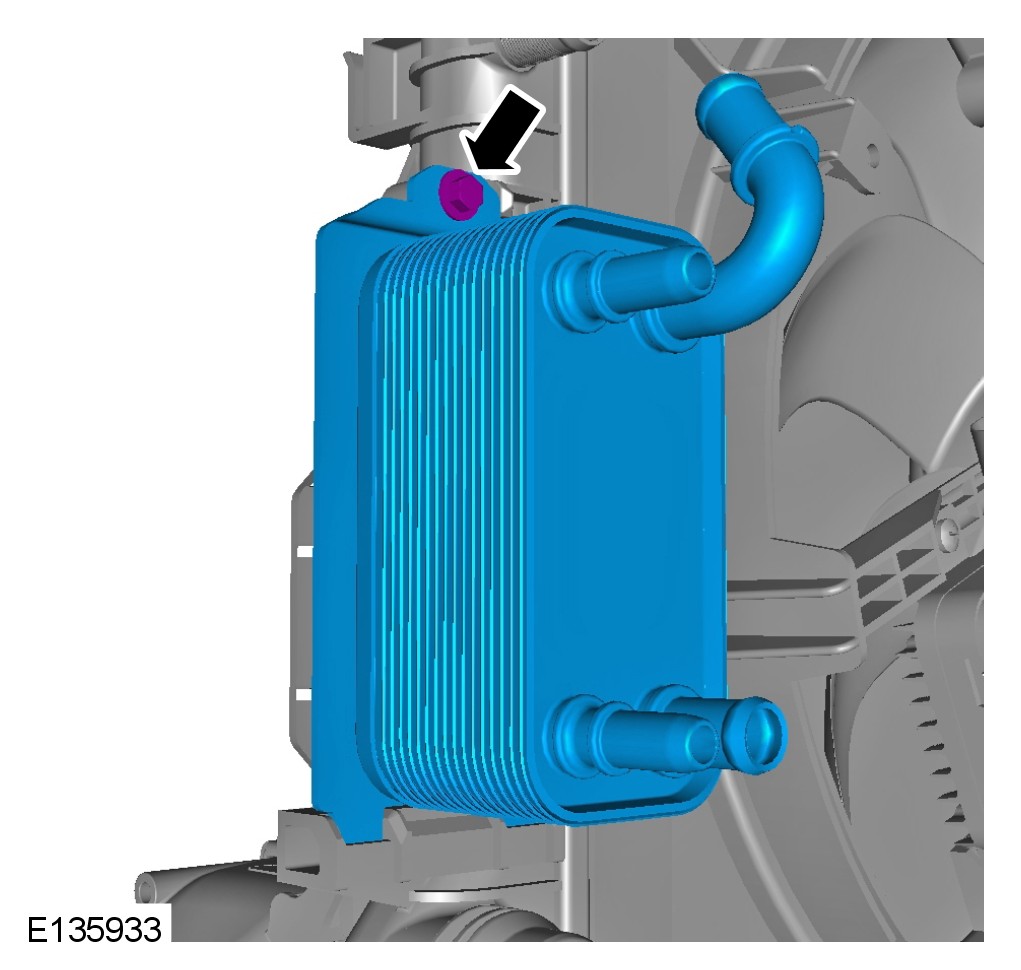

Torque to: 5 Nm

Installation
1 To install, reverse the removal procedure.
2 Check and top up coolant level.
For additional information, refer to Transmission Fluid Level Check - 2.0L GTDI Transmission Fluid Level Check
