Fluid Pan: Service and Repair

Transmission Fluid Pan
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

CAUTION: Extreme cleanliness must be exercised when handling this component.

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

WARNING: Make sure to support the vehicle with axle stands.
1 Raise and support the vehicle.
For additional information, refer to Engine Cover - 2.0L GTDI Service and Repair
For additional information, refer to Transmission Fluid Drain and Refill - 2.0L GTDI Transmission Fluid Drain and Refill









CAUTION: Be prepared to collect escaping oil.





CAUTION: Be prepared to collect escaping oil.

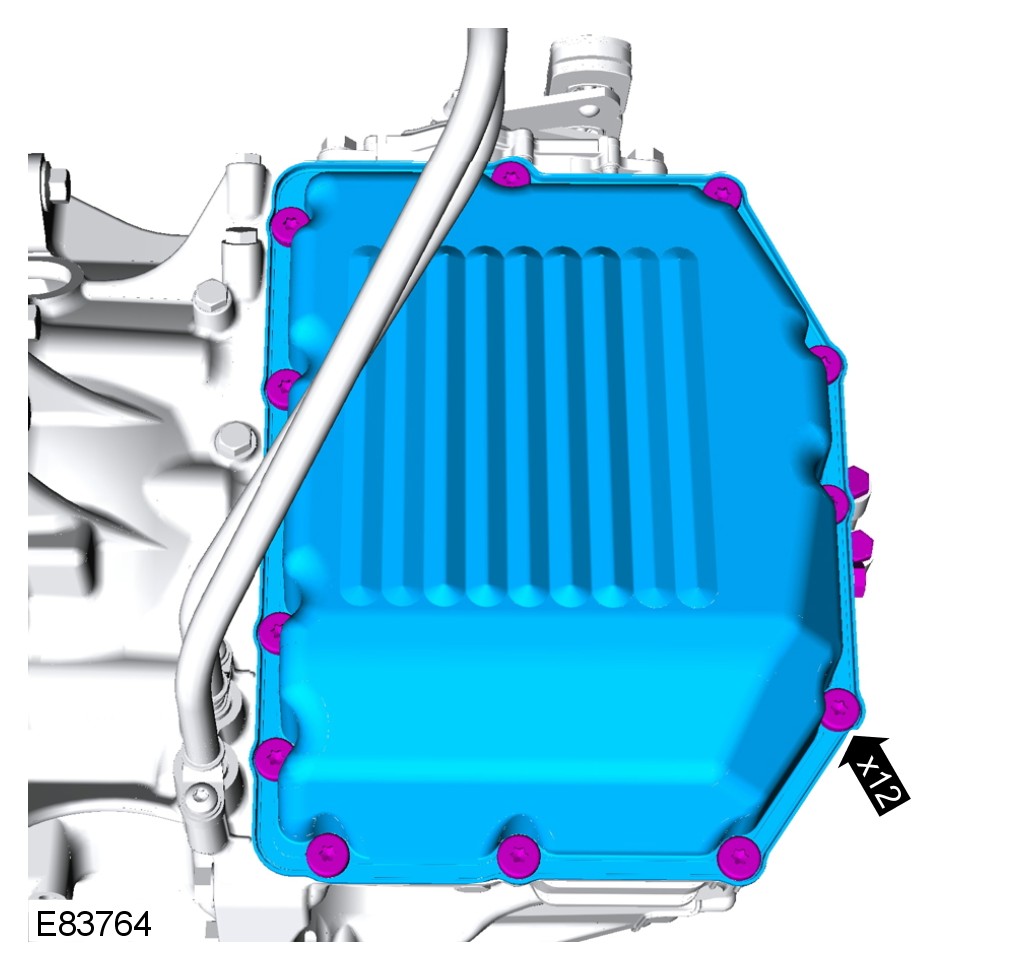

2 Carefully remove the sealant.

Installation
1 For sealant specification, refer to the specifications section.
For additional information, refer to Specifications Fluid Type Specifications





CAUTION: Make sure that the mating faces are clean and free of foreign material.

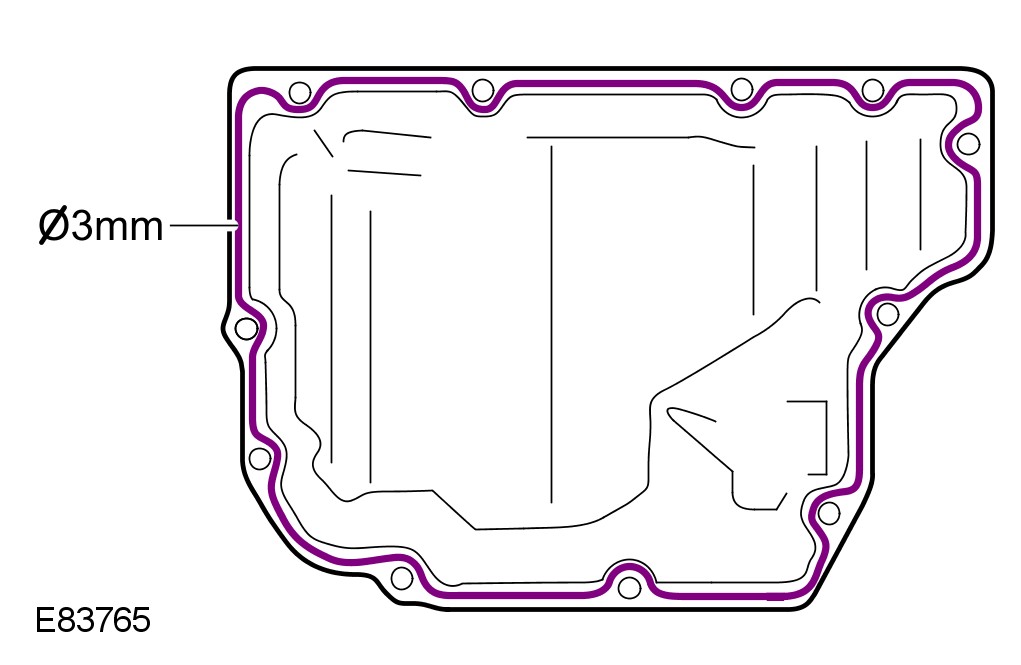

2 Apply a bead of sealant, 3 mm diameter, to the area indicated.





Torque to: 14 Nm





Torque to: 10 Nm





For additional information, refer to Engine Cover - 2.0L GTDI Service and Repair
For additional information, refer to Transmission Fluid Drain and Refill - 2.0L GTDI Transmission Fluid Drain and Refill
