Home >> Land Rover >> 2012 >> Range Rover Evoque (LV) L4-2.0L Turbo >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Locations

Suspension Control ( Automatic - Electronic ): Locations





Vehicle Dynamic Suspension

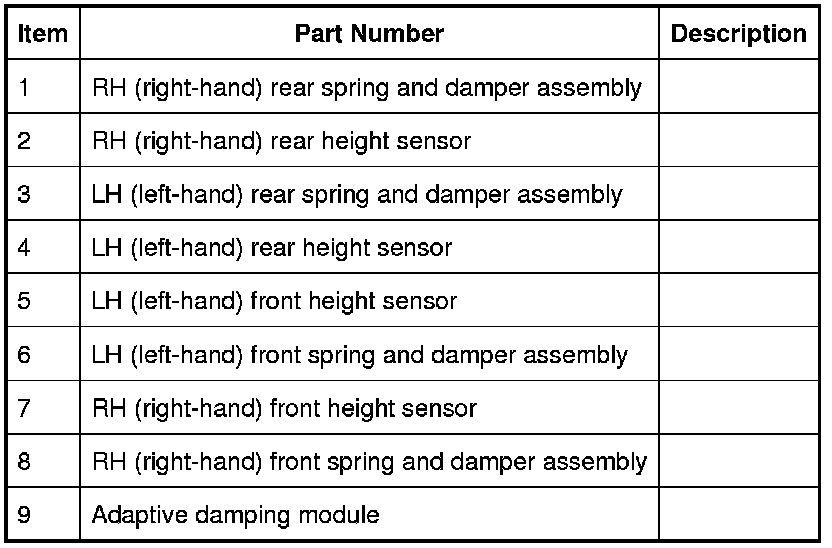

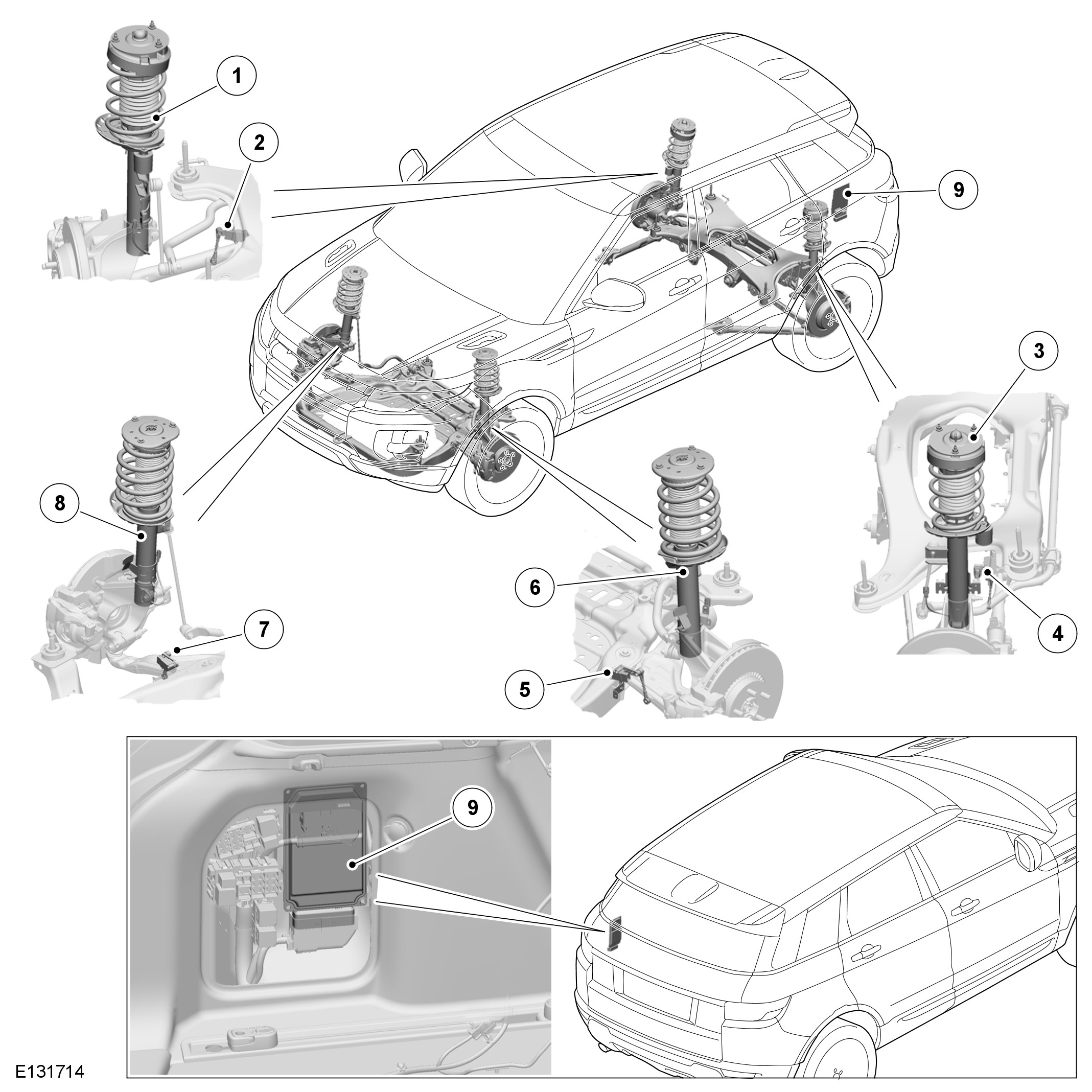

COMPONENT LOCATION
