Control Arm Bushing: Service and Repair

Wheel Knuckle Rear Bushing
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

WARNING: Make sure to support the vehicle with axle stands.
1 Raise and support the vehicle.
2 Remove the wheel and tire.
For additional information, refer to Wheel and Tire Service and Repair













CAUTION: Note the position of the component and mark the surrounding area to aid installation.




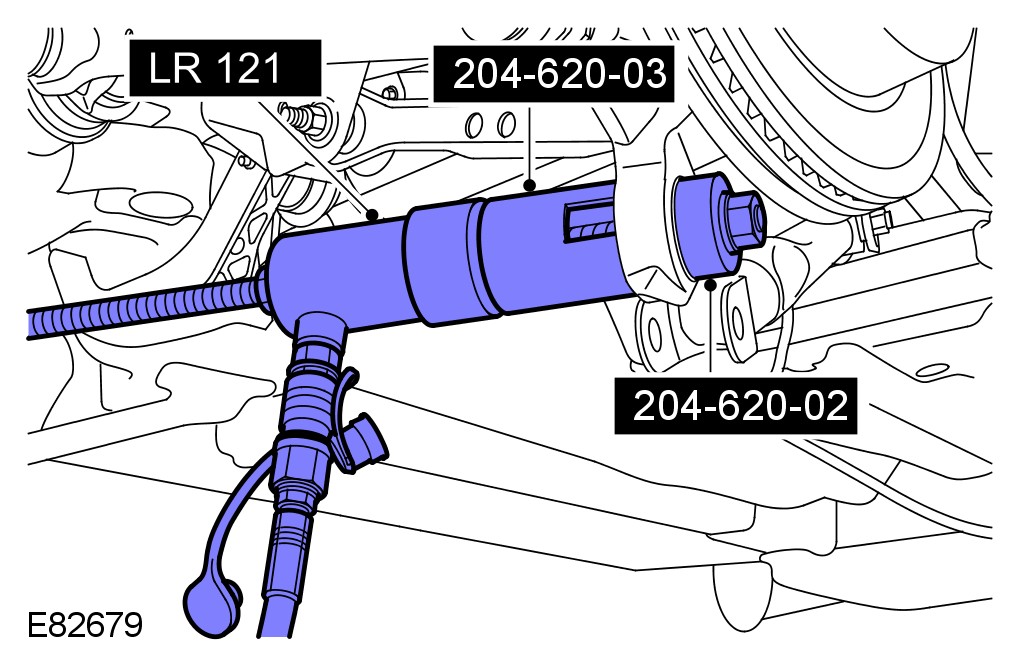

3 Remove the bushing.
Special Service Tool




Hydraulic Cylinder 10t, LR-121

Special Service Tool




Remover/Installer, Wheel Knuckle Bushing, 204-620-02

Special Service Tool

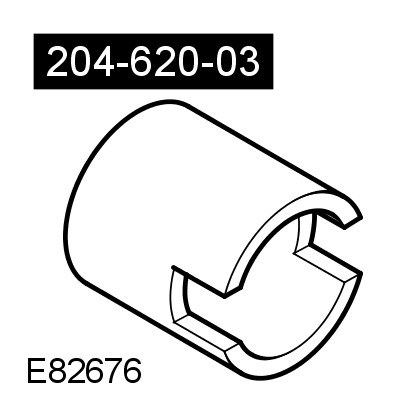

Remover, Wheel Knuckle Bushing, 204-620-03

Installation






CAUTION: Make sure that the component is installed to the position noted on removal.





CAUTION: Make sure the correct special tool is used to install the bushings to the correct depth.

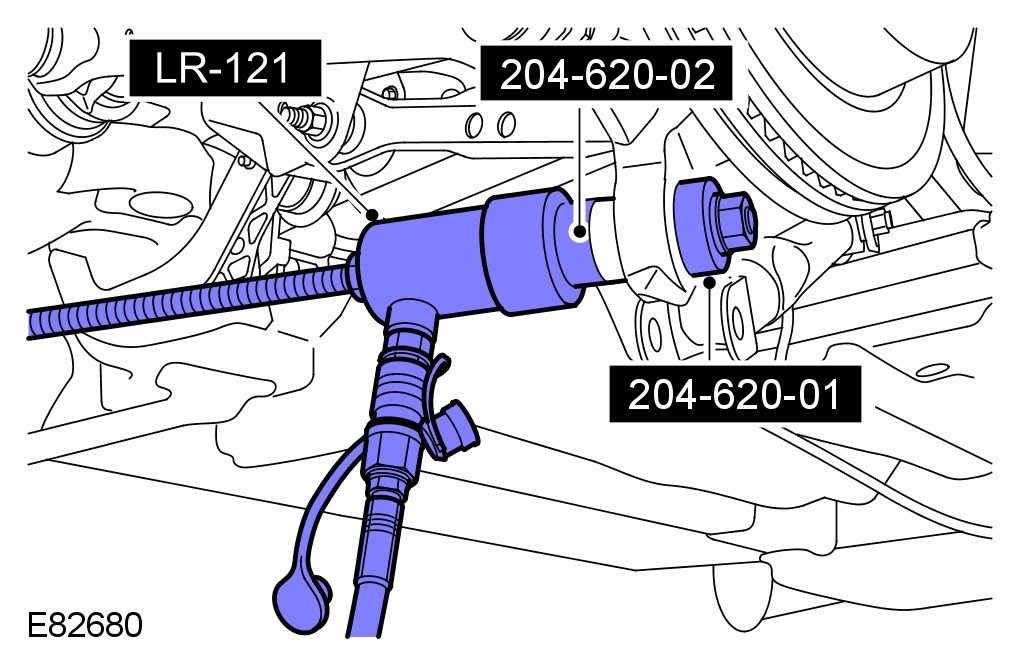

1 Install the bushing.
Special Service Tool




Hydraulic Cylinder 10t, LR-121

Special Service Tool




Installer, Wheel Knuckle Bushing, 204-620-01

Special Service Tool




Remover/Installer, Wheel Knuckle Bushing, 204-620-02





Torque to: 270 Nm





Torque to: 110 Nm
2 Install the wheel and tire.
For additional information, refer to Wheel and Tire Service and Repair
