Passenger Air Bag Module

Passenger Air Bag Module
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

WARNING: It is imperative that before any work is undertaken on the SRS system, the appropriate information is read thoroughly.

WARNING: Always disconnect both battery cables before beginning work on the SRS system. Disconnect the ground cable first. Never reverse connect the battery.

NOTE:
Removal steps in this procedure may contain installation details.

NOTE:
If the SRS component is to be replaced, the bar code of the new unit must be recorded.
1 Make the air bag supplemental restraint system (SRS) safe.
For additional information, refer to Standard Workshop Practices Standard Workshop Practices
2 Disconnect both battery cables. Disconnect the ground cable first.
For additional information, refer to Specifications
For additional information, refer to Instrument Panel Upper Section Instrument Panel Upper Section

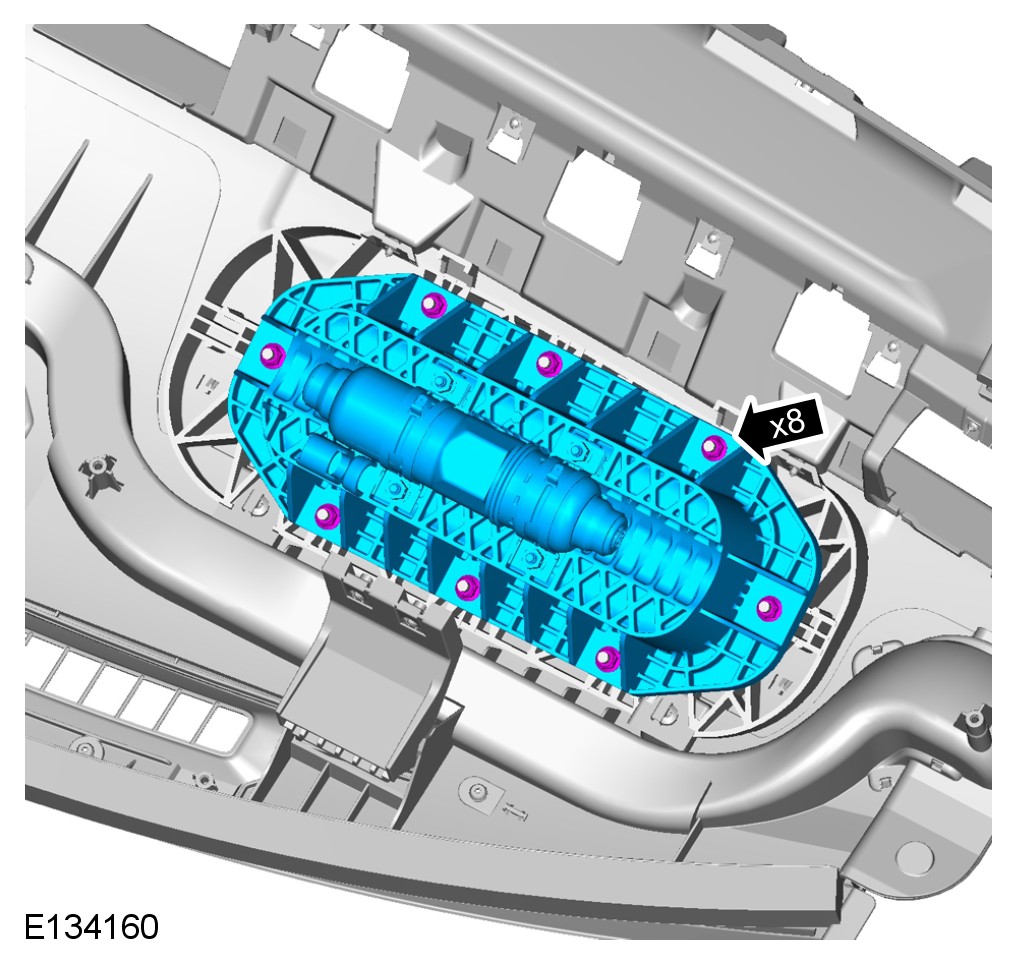

NOTE:
LHD illustration shown, RHD is similar.





NOTE:
LHD illustration shown, RHD is similar.

Torque to: 4.8 Nm

Installation
1 To install, reverse the removal procedure.
