Fuel Filler Neck: Service and Repair

Fuel Tank Filler Pipe
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

WARNING: Avoid flames, sparks or lighted substances.

CAUTION: Extreme cleanliness must be exercised when handling these components.

CAUTION: Make sure that all openings are sealed. Use new blanking caps.

NOTE:
Removal steps in this procedure may contain installation details.

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

WARNING: Make sure to support the vehicle with axle stands.
1 Raise and support the vehicle.
2 Disconnect the battery ground cable.
For additional information, refer to Specifications
3 Remove the rear wheel.
For additional information, refer to Wheel and Tire Service and Repair

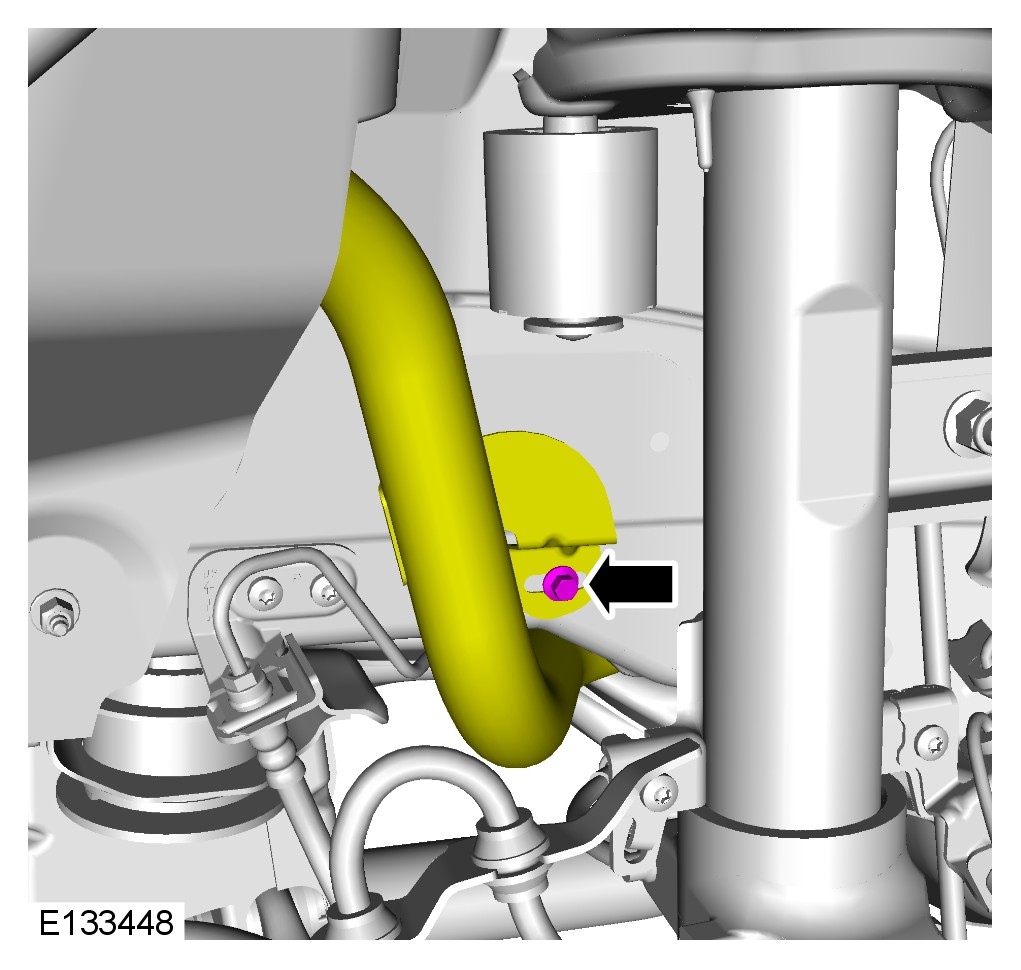

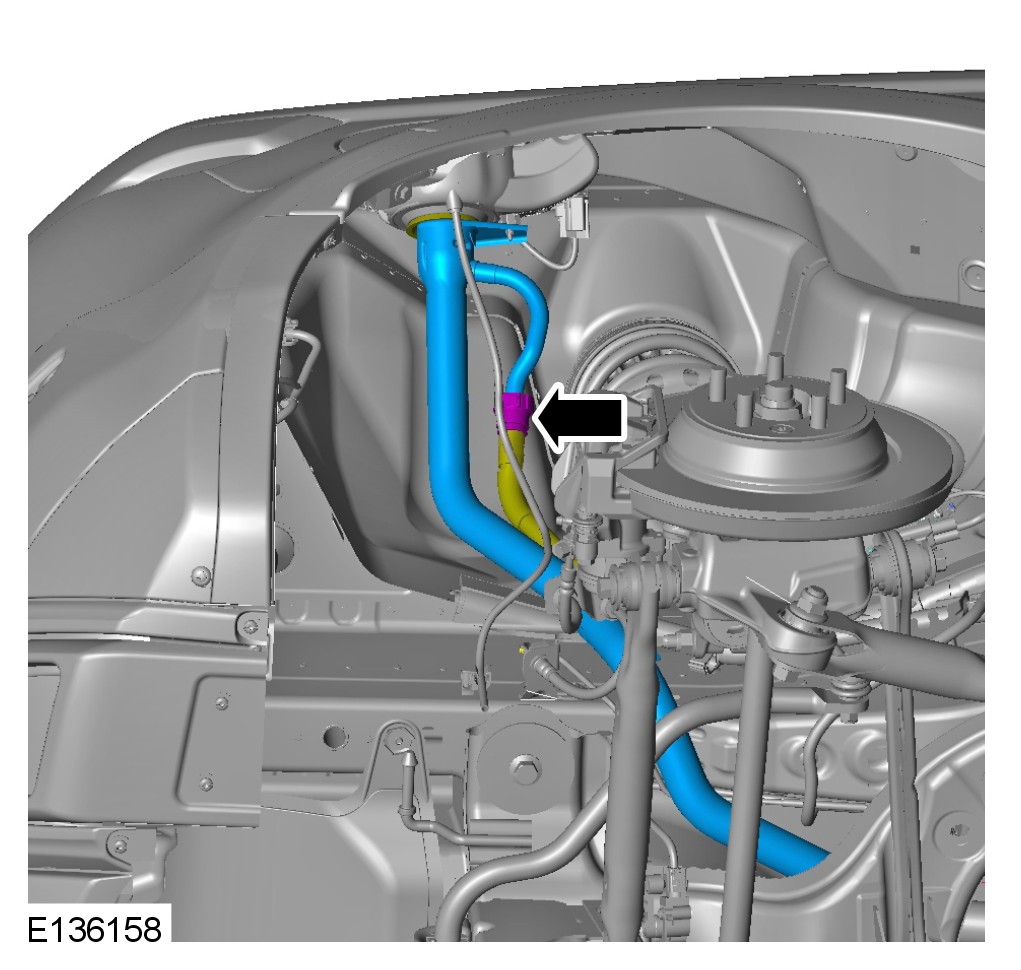

Torque to: 10 Nm









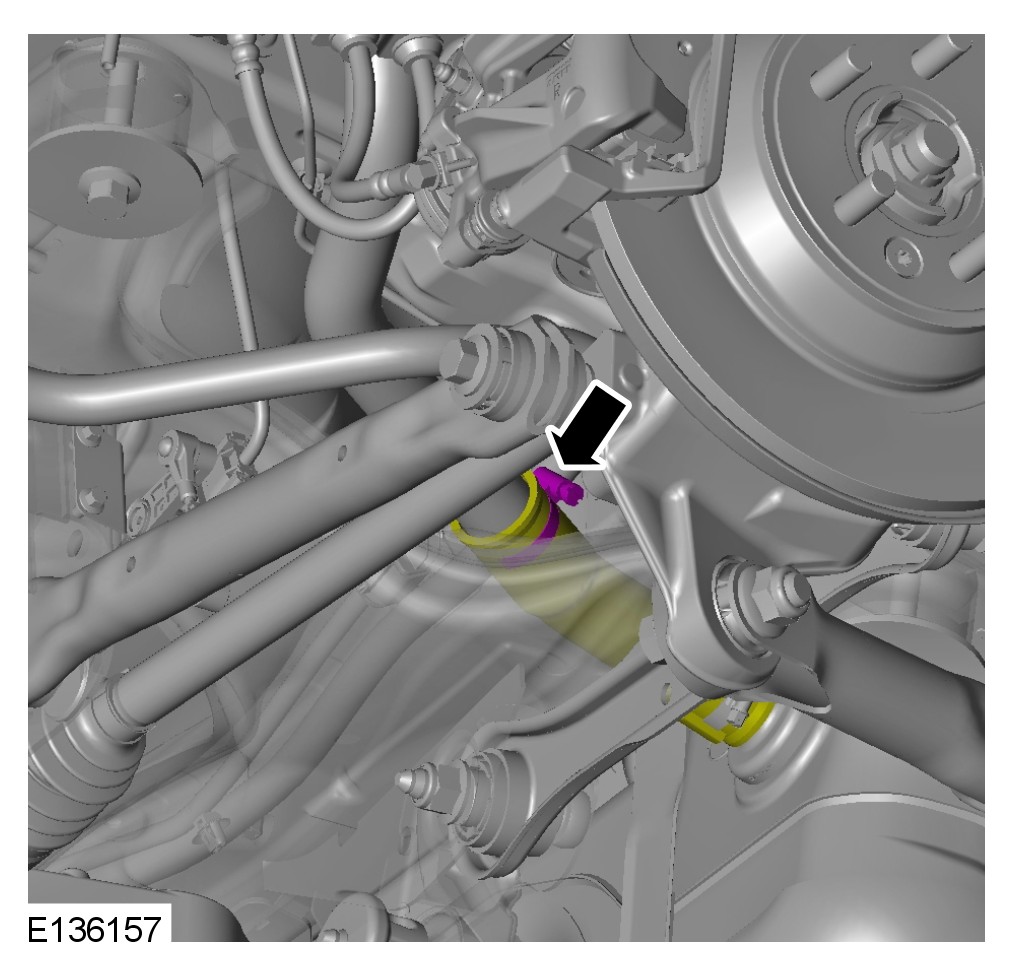

WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.





Installation
1 To install, reverse the removal procedure.
