Range Rover Evoque (LV) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Pressure Sensor/Switch
>>
Diagrams
>>

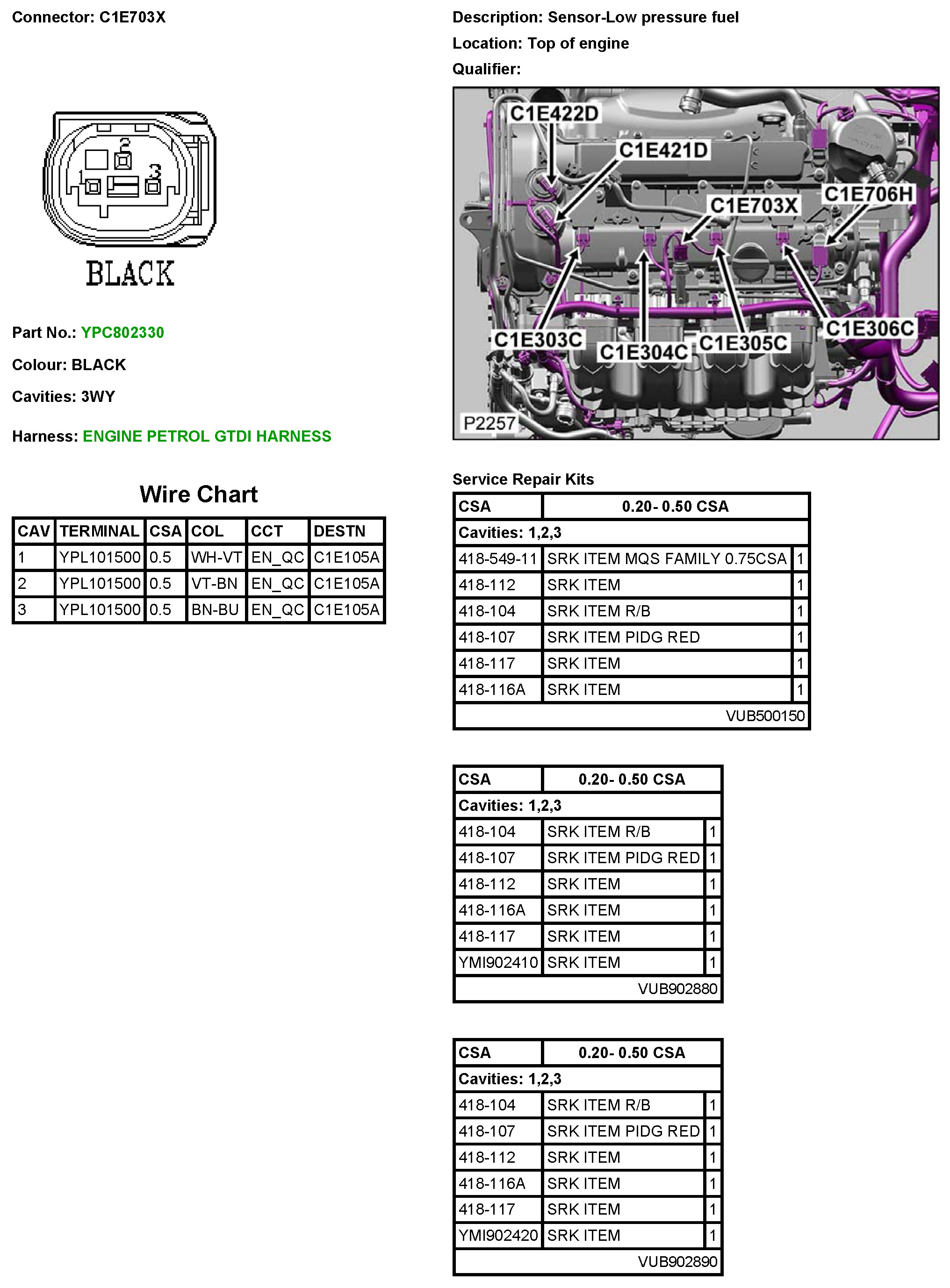

C1E703X Sensor-Low Pressure Fuel
C1E703X Sensor-Low Pressure Fuel
C1E703X
