Oil Filter: Service and Repair

Oil Filter Element
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

NOTE:
Some illustrations may show the engine removed for clarity.

NOTE:
Removal steps in this procedure may contain installation details.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
1 Raise and support the vehicle.
For additional information, refer to Engine Undershield Engine Undershield









WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

CAUTION: Make sure that the area around the component is clean and free of foreign material.

NOTE:

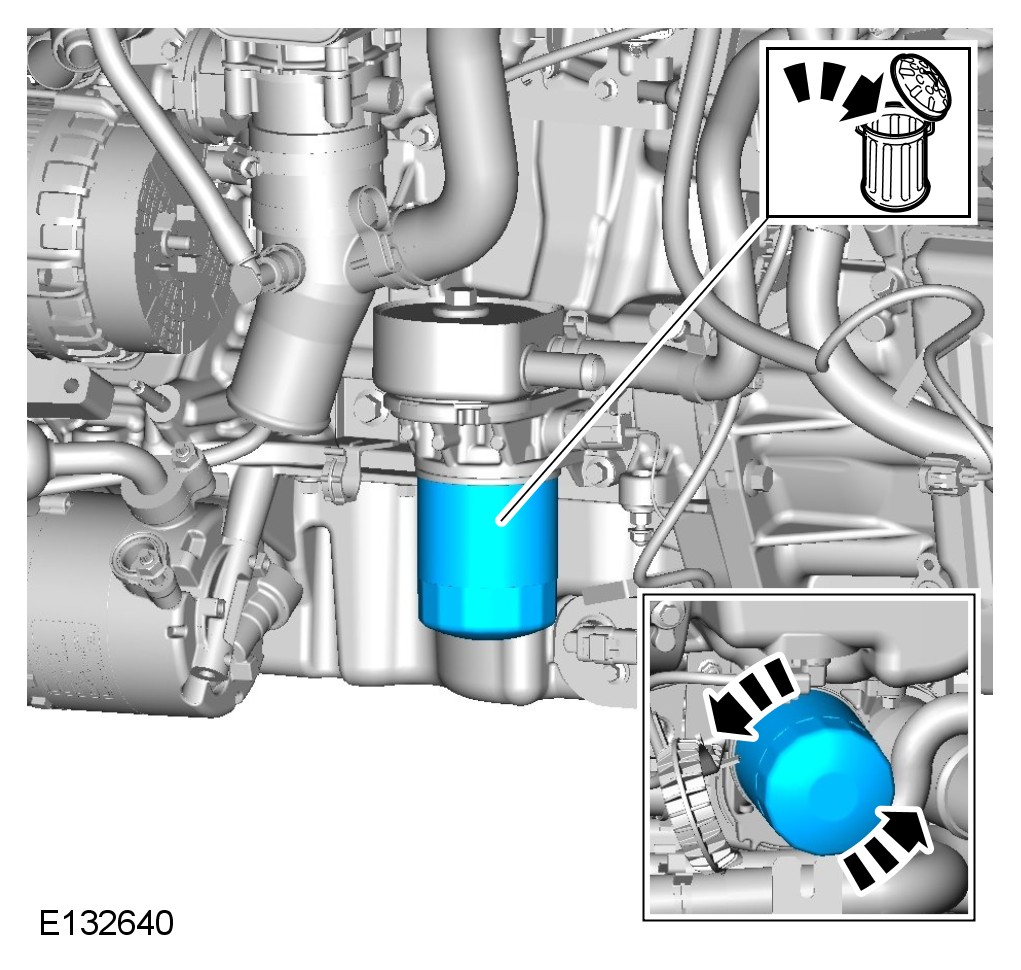

Using suitable tool remove the oil filter.

Installation

NOTE:
Lubricate new seals with clean engine oil.
1 To install, reverse the removal procedure.
2 Check and top-up the engine oil.
