Range Rover Evoque (LV) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
C4LF16 - C4MP01C
>>

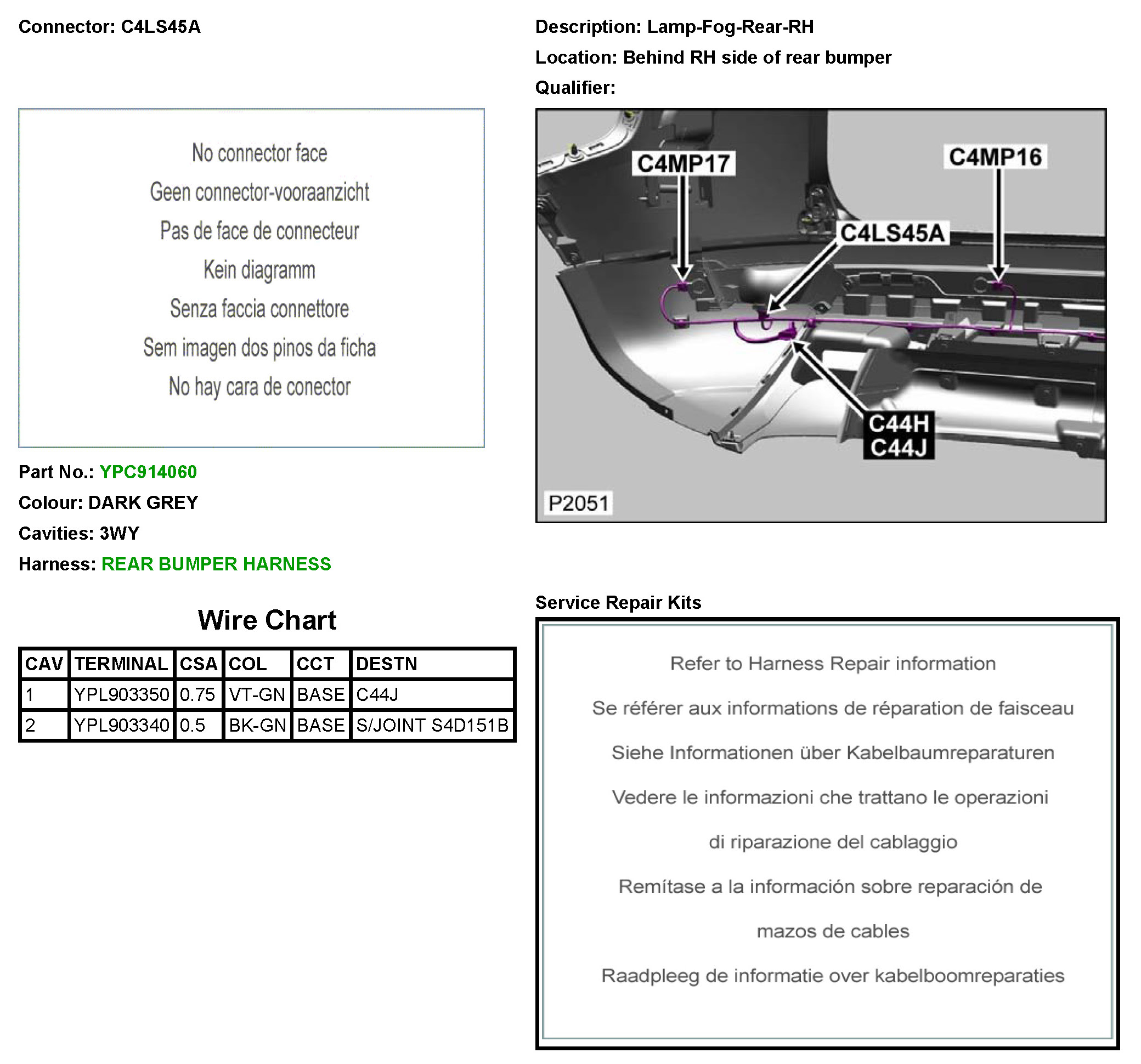

C4LS45A
C4LS45A
C4LS45A
