Range Rover Evoque (LV) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Locations
>>
Component Locations
Component Locations
Warning Devices

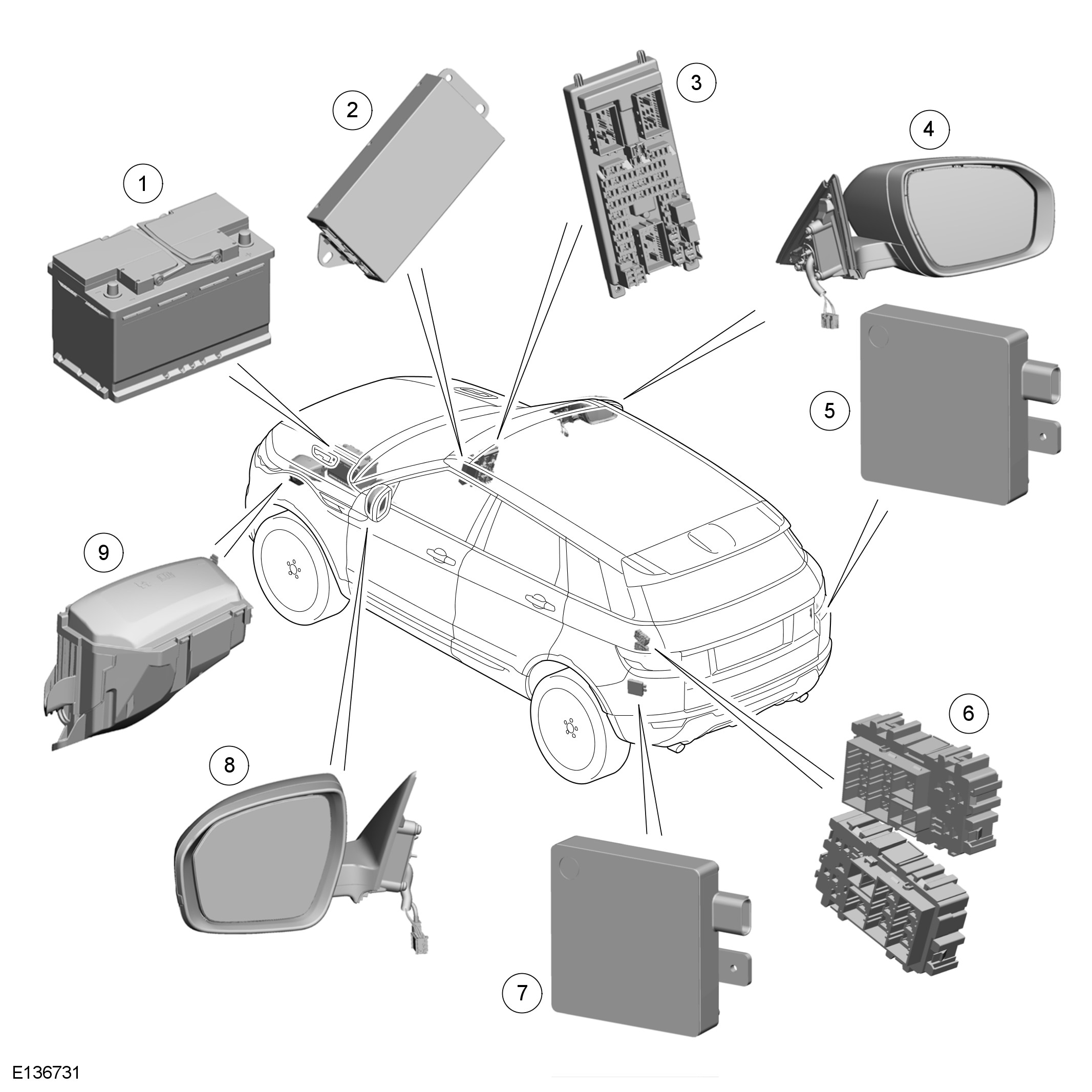

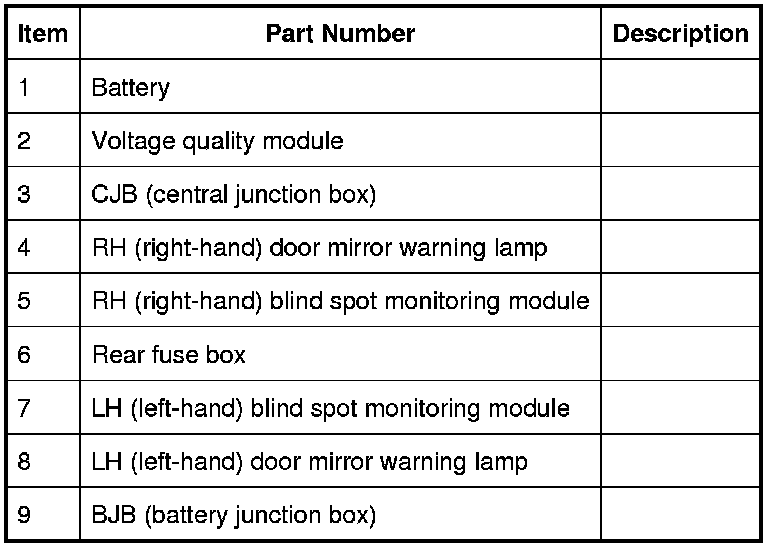

Component Location - Blind Spot Monitoring System
