Air Distribution and Filtering





Air Distribution and Filtering

NOTE:
Right Hand Drive (RHD) shown, Left Hand Drive (LHD) similar

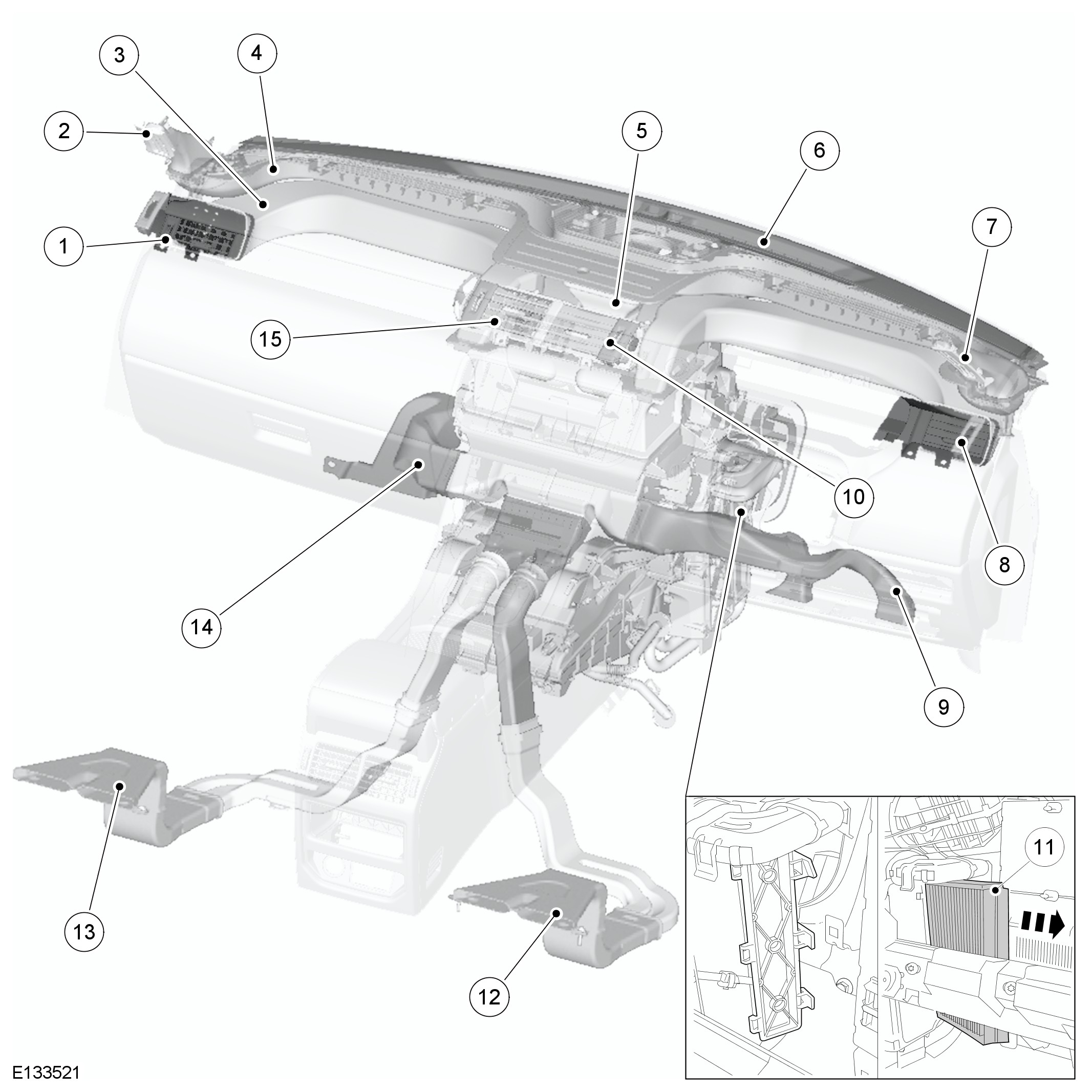

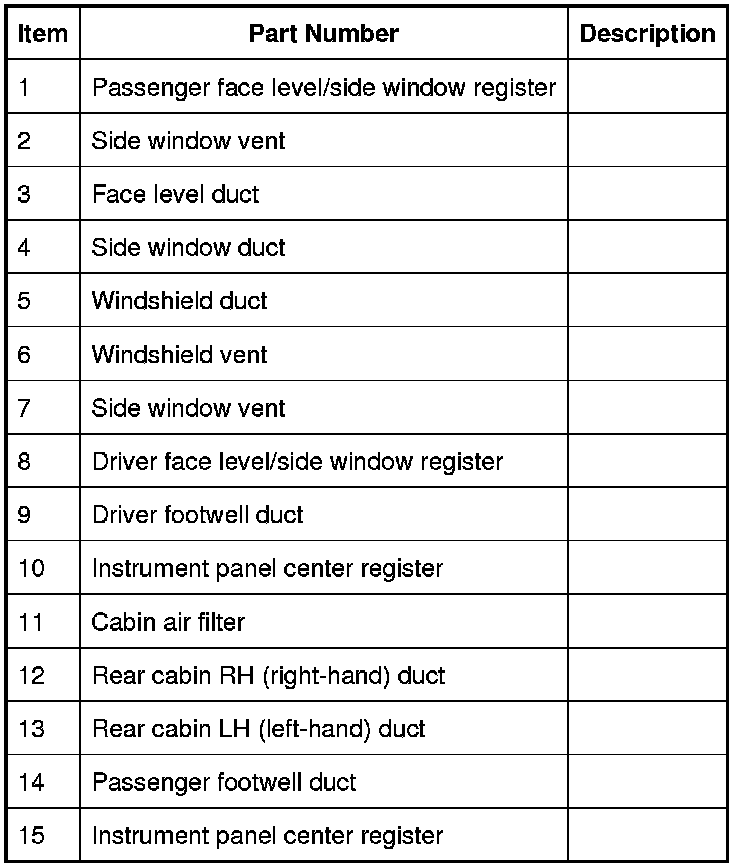

COMPONENT LOCATION
