Evaporator Core: Service and Repair
Evaporator
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

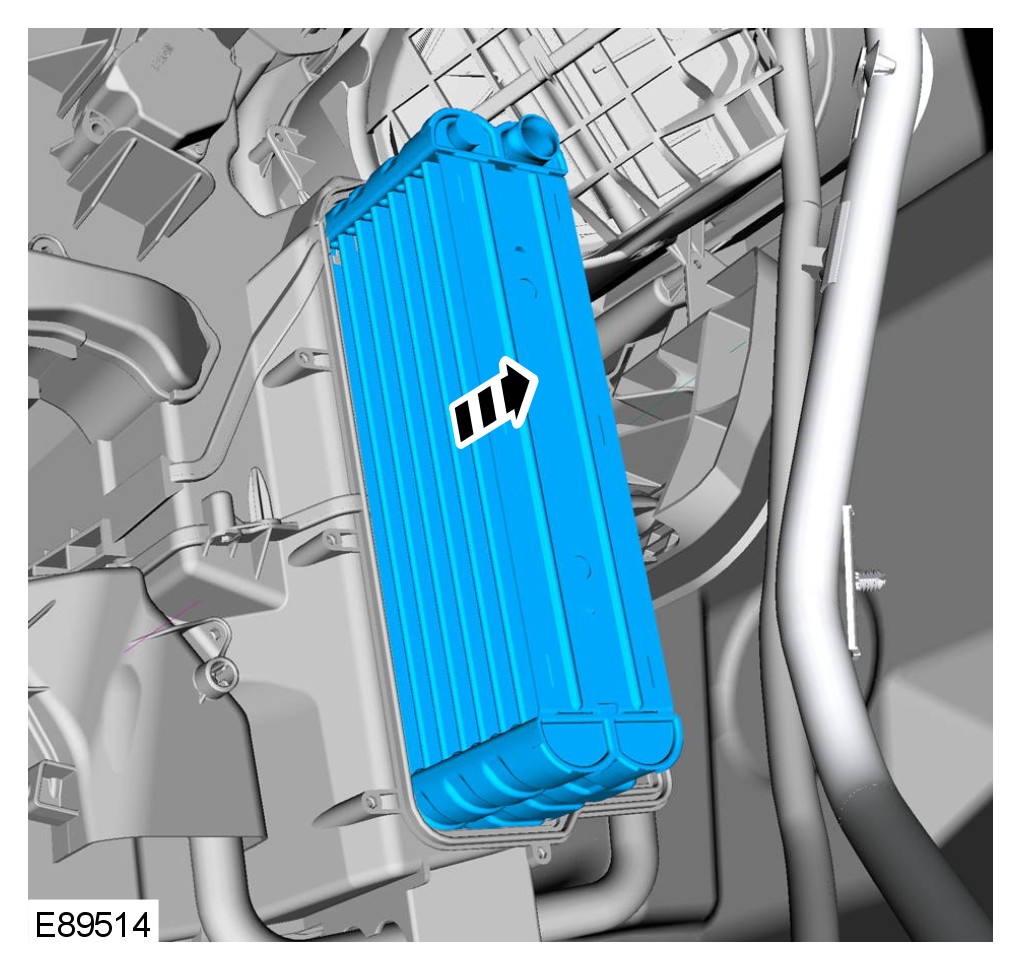

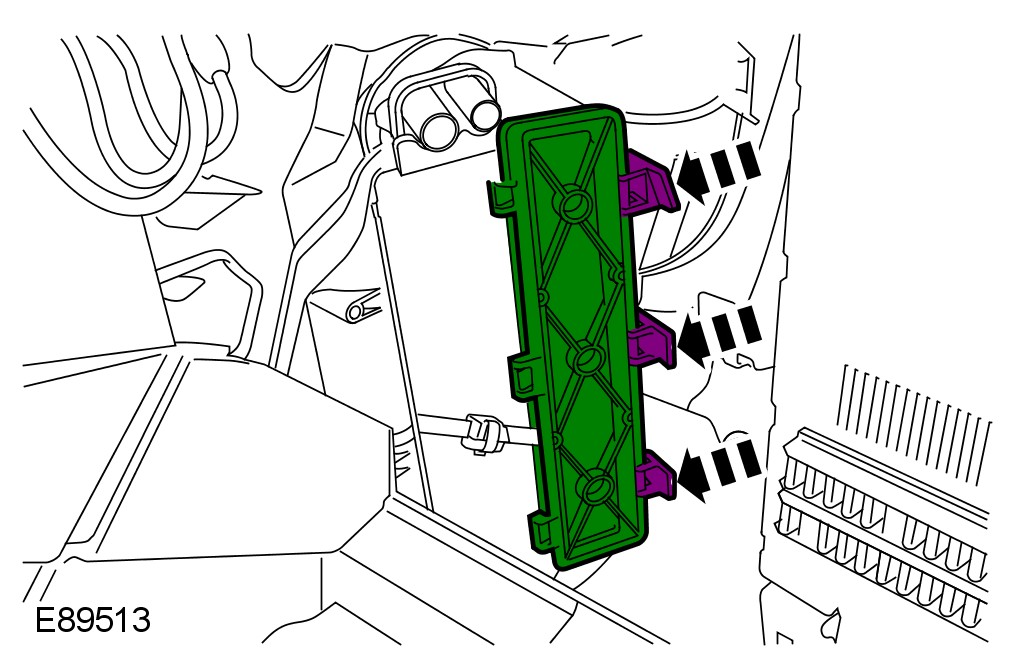

Removal
NOTE:

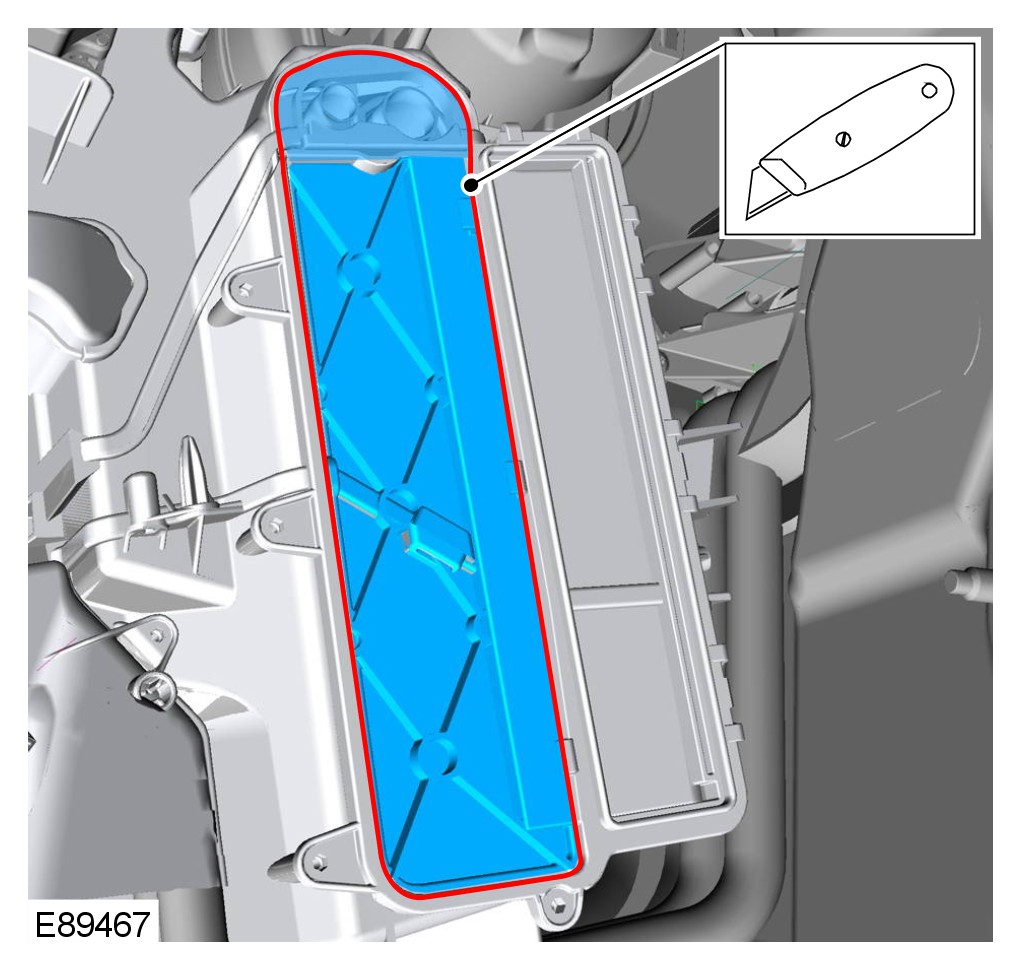

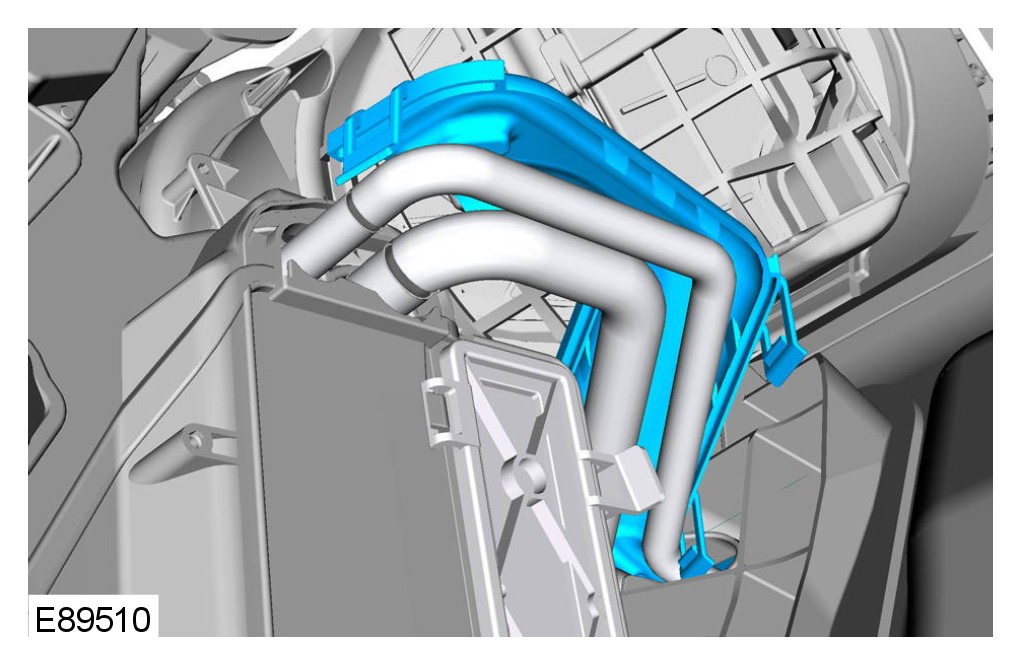

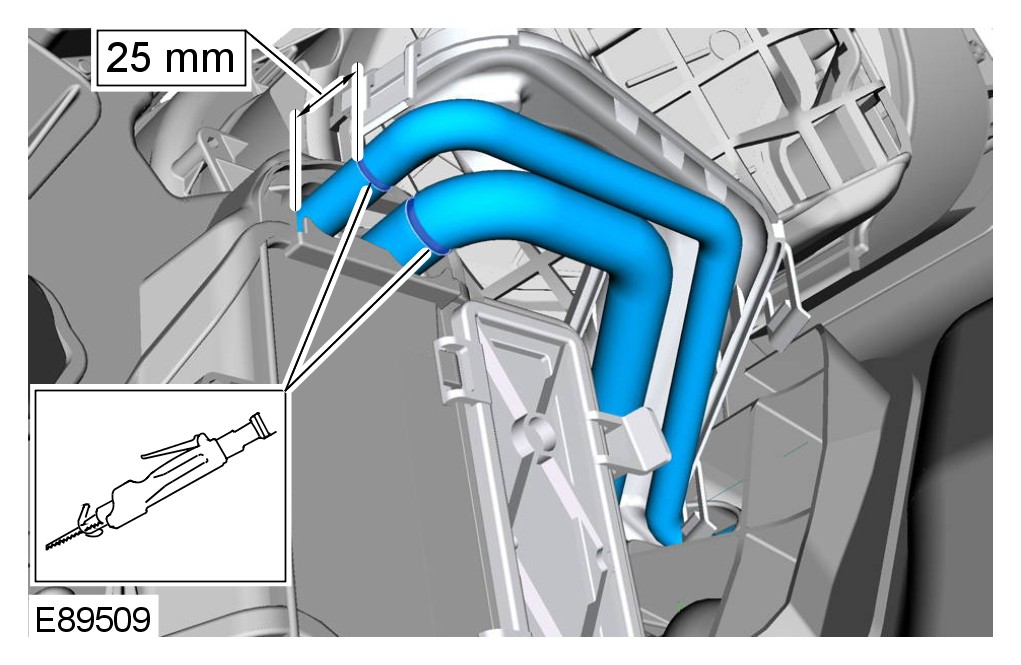

The removal of this component involves cutting an aperture in the evaporator housing wall and cutting through the high and low pressure A/C lines. A service repair kit is supplied to cover this procedure.
NOTE:
Removal steps in this procedure may contain installation details.
1 Disconnect the battery ground cable.
For additional information, refer to Specifications
For additional information, refer to Air Conditioning (A/C) System Recovery, Evacuation and Charging - 2.0L GTDI Procedures
For additional information, refer to Air Conditioning (A/C) System Recovery, Evacuation and Charging - 2.2L Duratorq - Td4
For additional information, refer to Plenum Chamber Plenum Chamber
For additional information, refer to Central Junction Box (CJB) Central Junction Box (CJB)

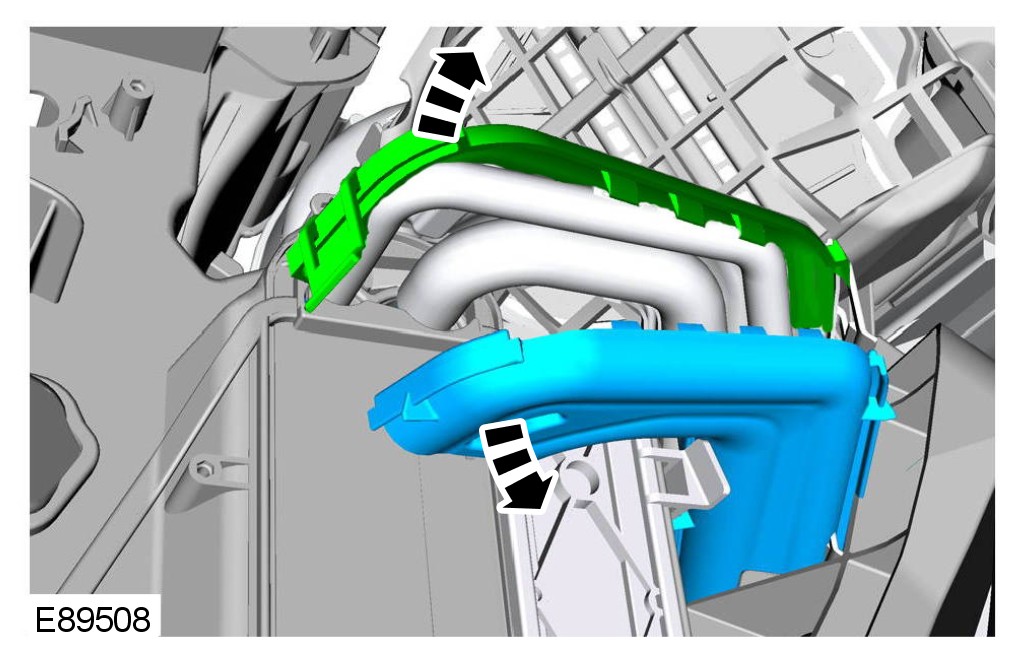

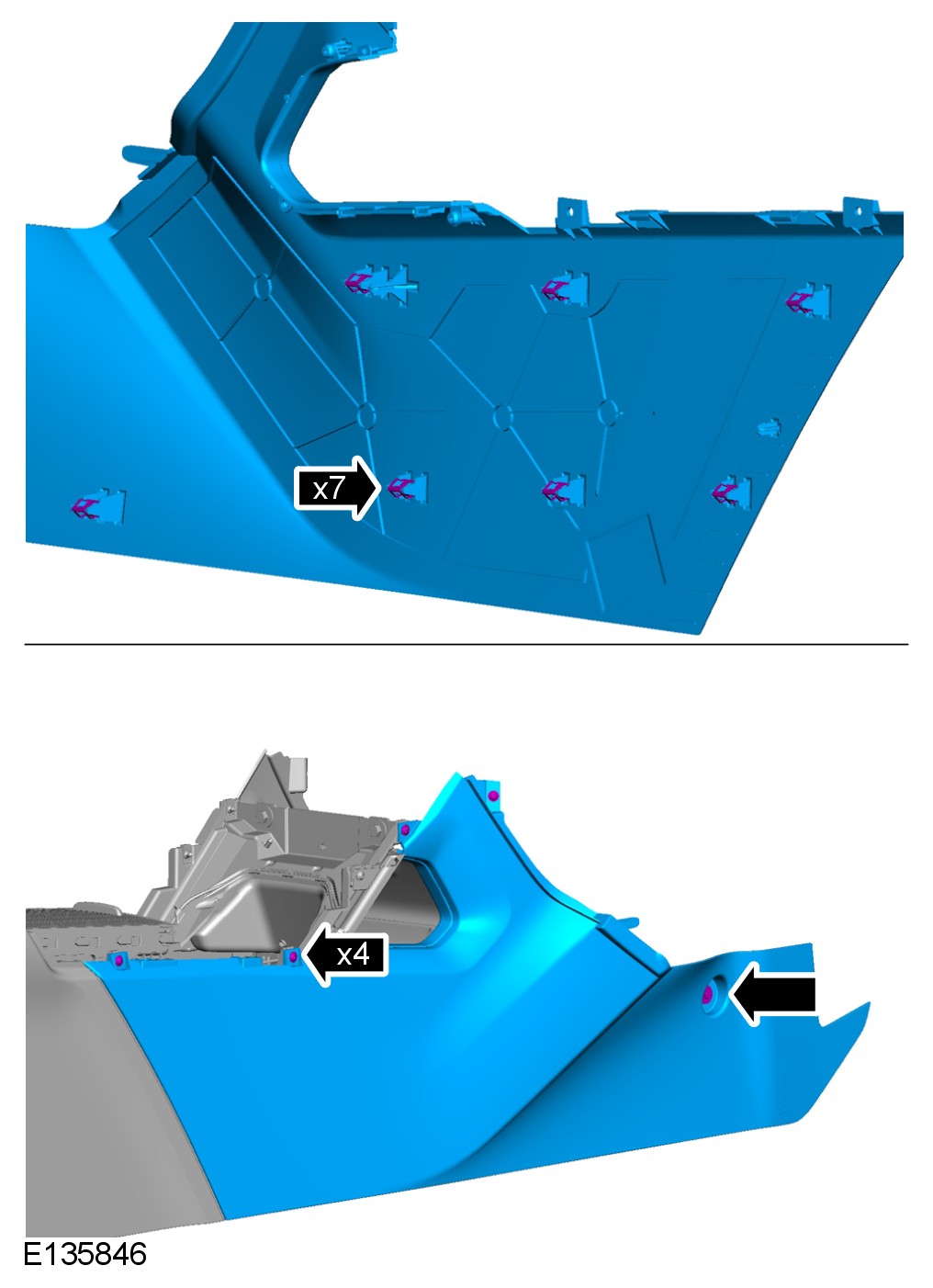

For additional information, refer to Floor Console Upper Section Floor Console Upper Section
Torque to: 10 Nm

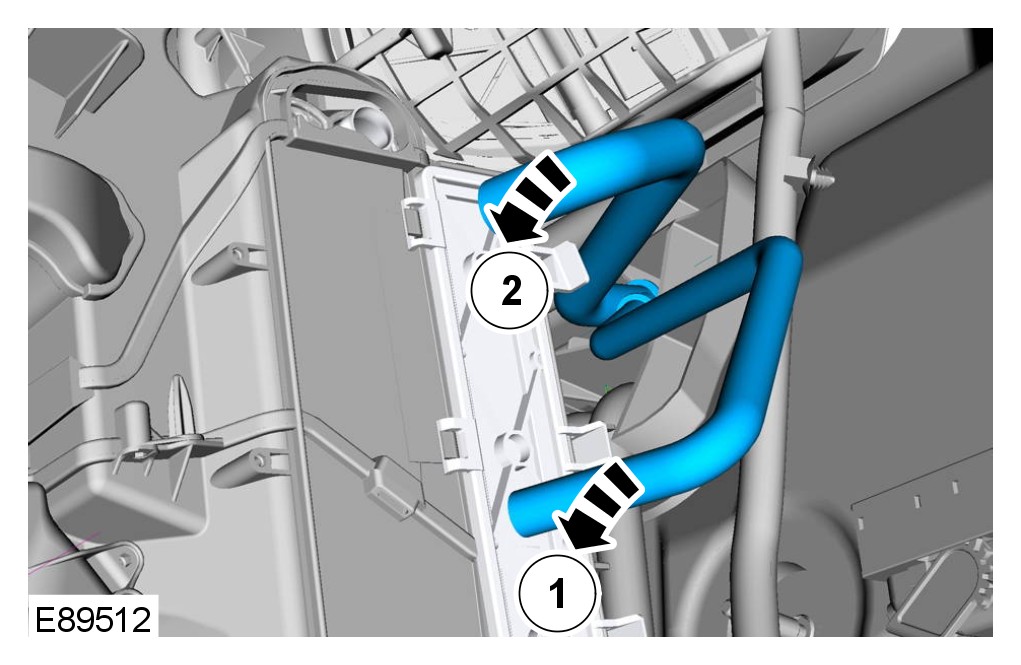

CAUTION: Make sure that all openings are sealed. Use new blanking caps.
CAUTION: Lubricate the new seals with clean refrigerant oil.
NOTE:
Install new O-ring seals.
Torque to: 9 Nm
Torque to: 4 Nm
NOTE:

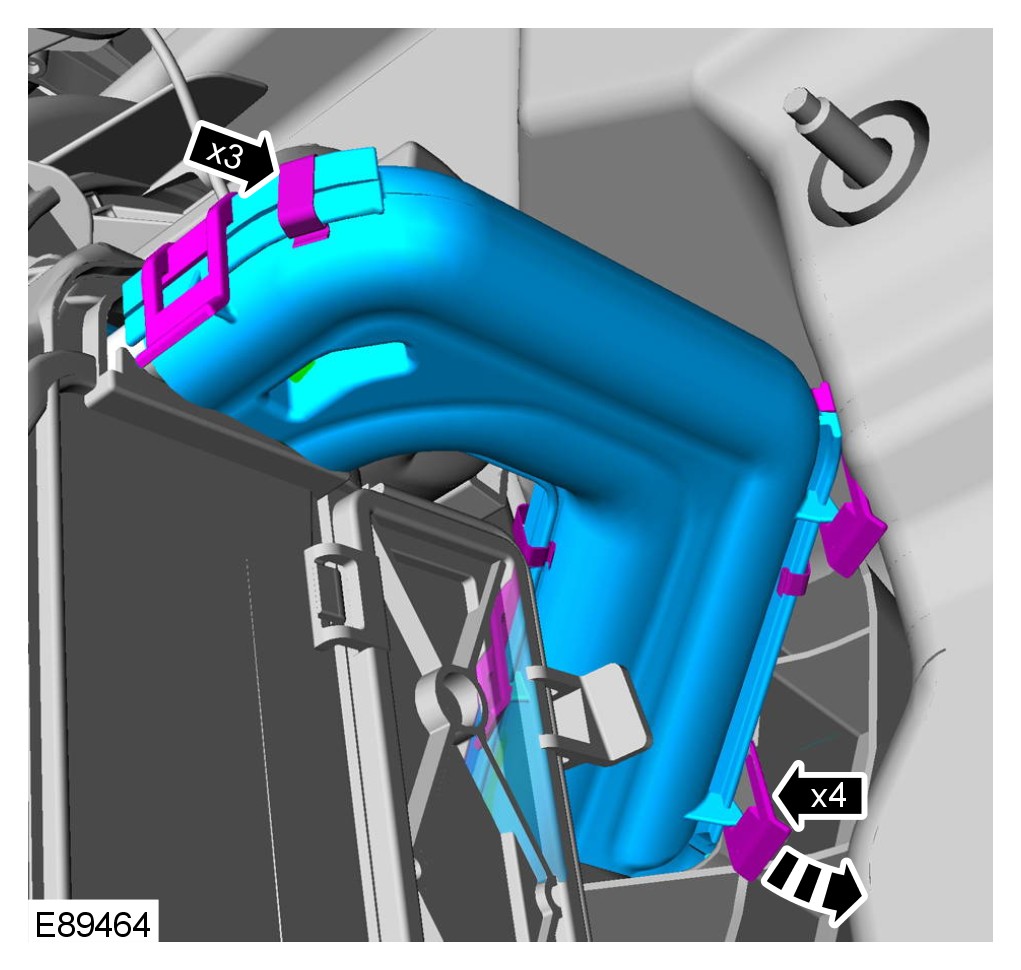

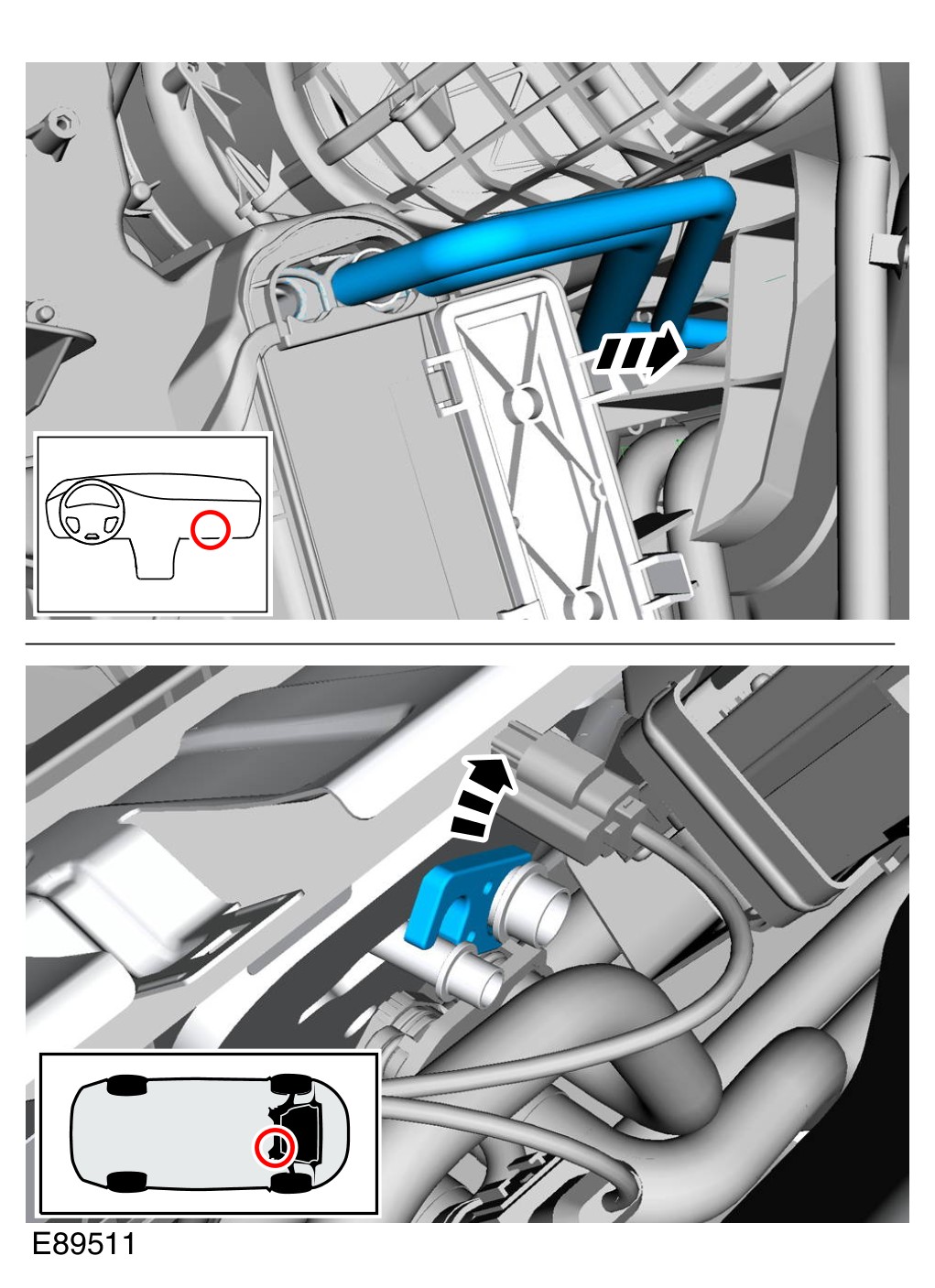

LH illustration shown, RH is similar.
Torque to: 10 Nm
CAUTION: Make sure that the area around the component is clean and free of foreign material.

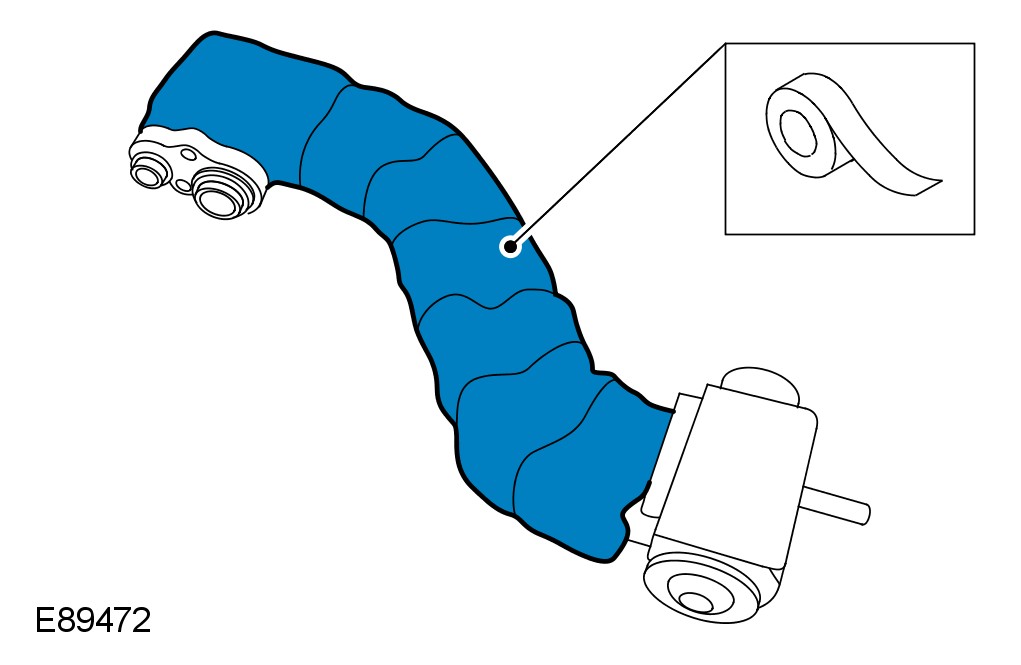

Installation

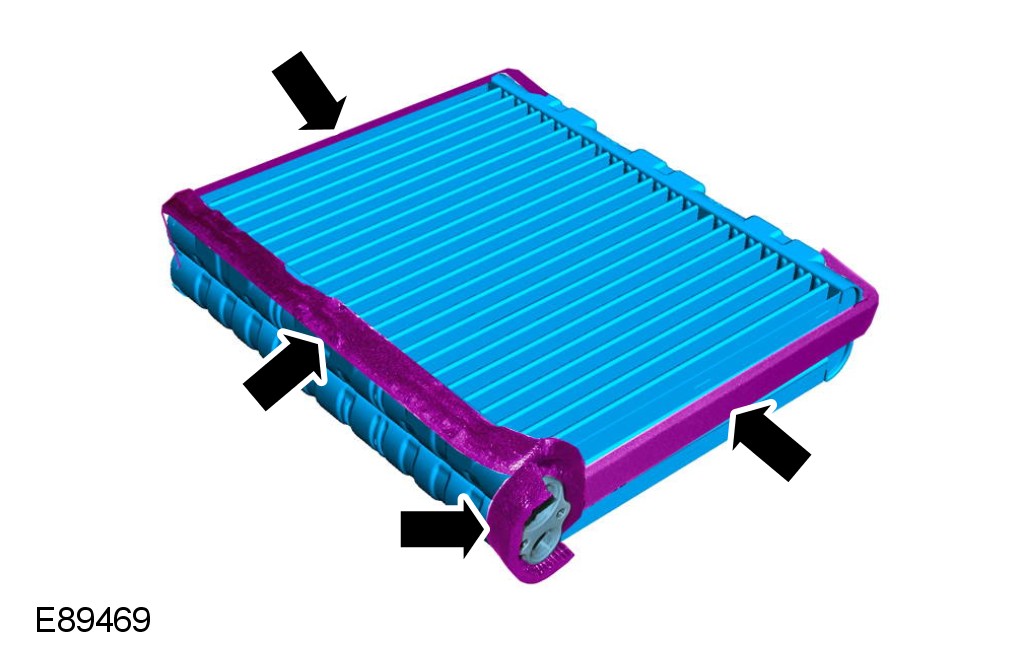

1 Apply the foam strips from the service kit to the evaporator core.
NOTE:
Install new O-ring seals.
Torque to: 5 Nm
2 To install, reverse the removal procedure.
