Oil Cooler: Service and Repair

Oil Cooler
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

NOTE:
Removal steps in this procedure may contain installation details.

WARNING: Make sure to support the vehicle with axle stands.
1 Raise and support the vehicle.
2 Disconnect the battery ground cable.
For additional information, refer to Specifications
For additional information, refer to Cooling System Partial Draining, Filling and Bleeding Cooling System Partial Draining, Filling and Bleeding
For additional information, refer to Engine Oil Draining and Filling Service and Repair
For additional information, refer to Engine Cover - 2.0L GTDI Service and Repair

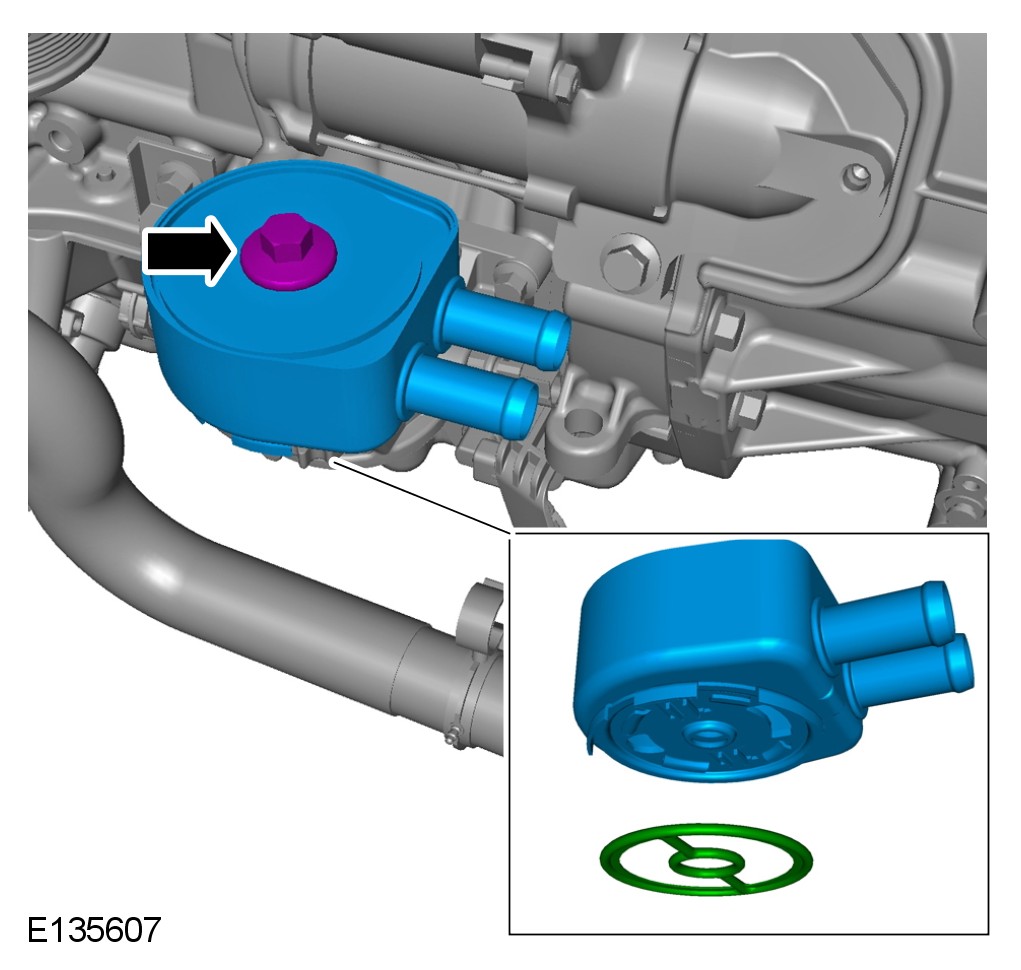

CAUTION: Make sure that the area around the component is clean and free of foreign material.

Torque to: 22 Nm
Torque to: 75 degree
Wait for 10 seconds.
Torque to: 15 degree

Installation
1 To install, reverse the removal procedure.
