Home >> Land Rover >> 2012 >> Range Rover Evoque (LV) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module >> C1CS05B ECU Electrical Power-Assisted Steering (EPAS)

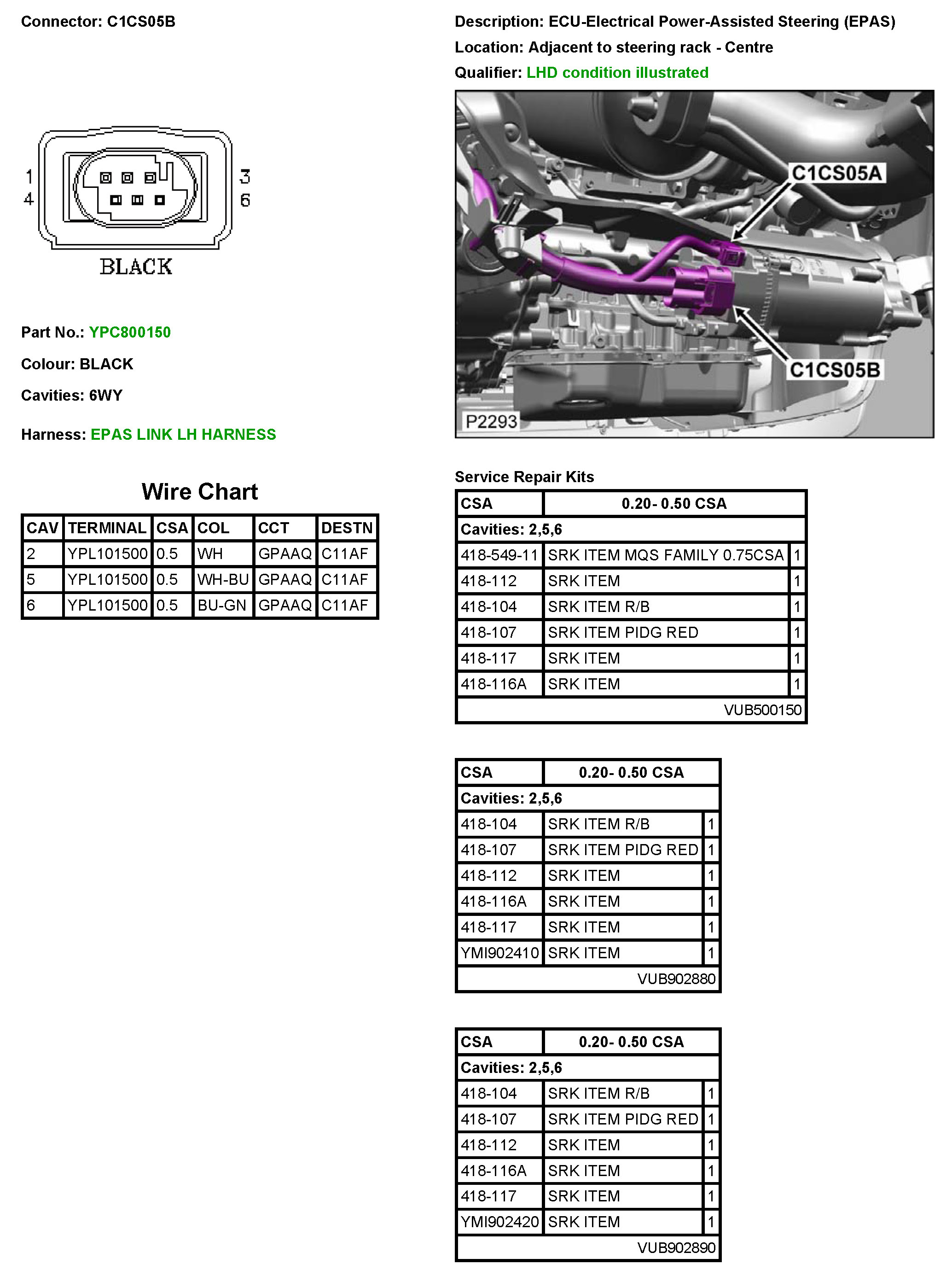

C1CS05B ECU Electrical Power-Assisted Steering (EPAS)



C1CS05B
