Home >> Land Rover >> 2012 >> Range Rover Evoque (LV) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Front Door Window Motor >> CAPW11 Motor-Window-Driver

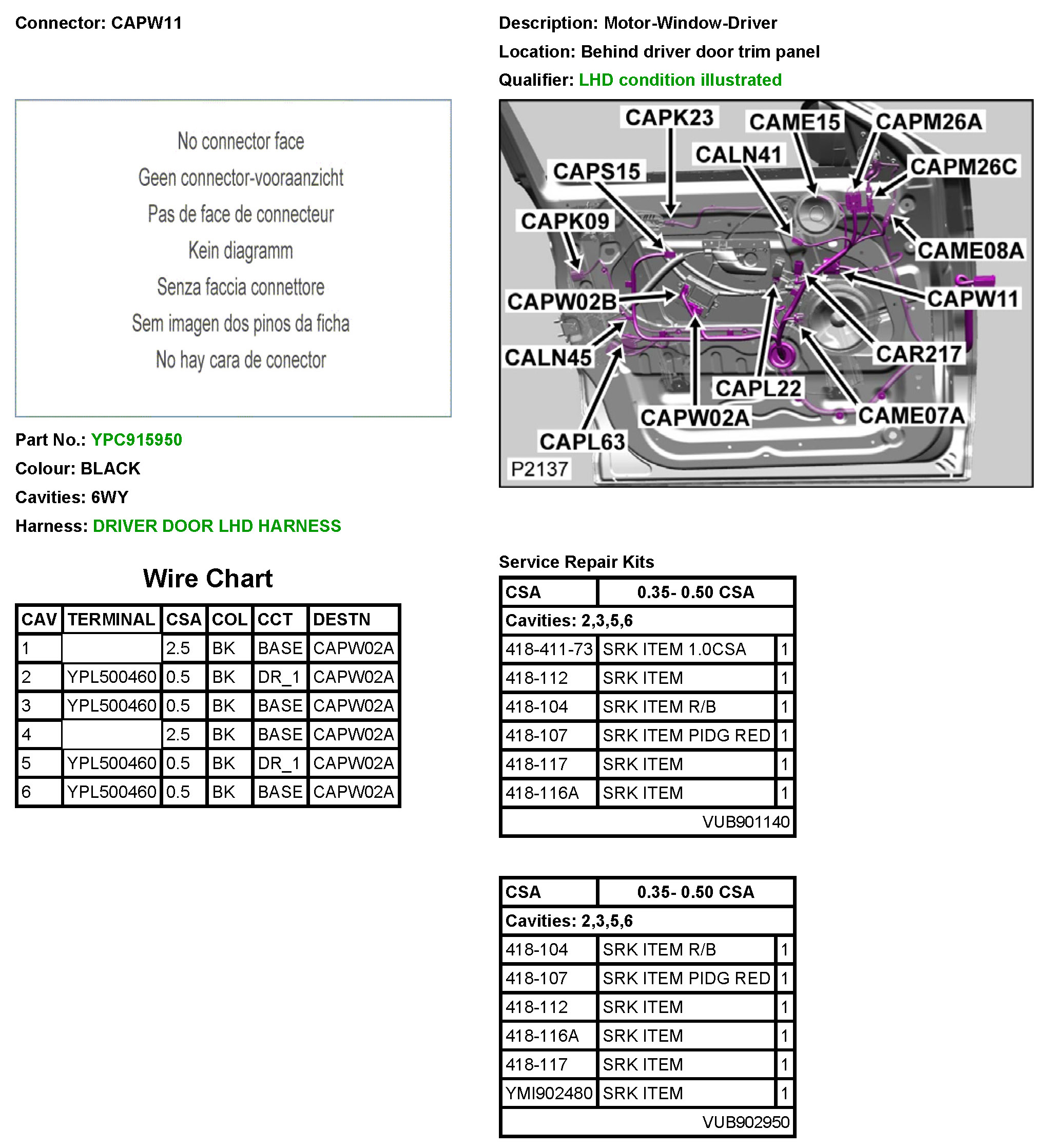

CAPW11 Motor-Window-Driver



CAPW11
