Home >> Land Rover >> 2012 >> Range Rover Evoque (LV) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> CBPW04B Module-Passenger Door

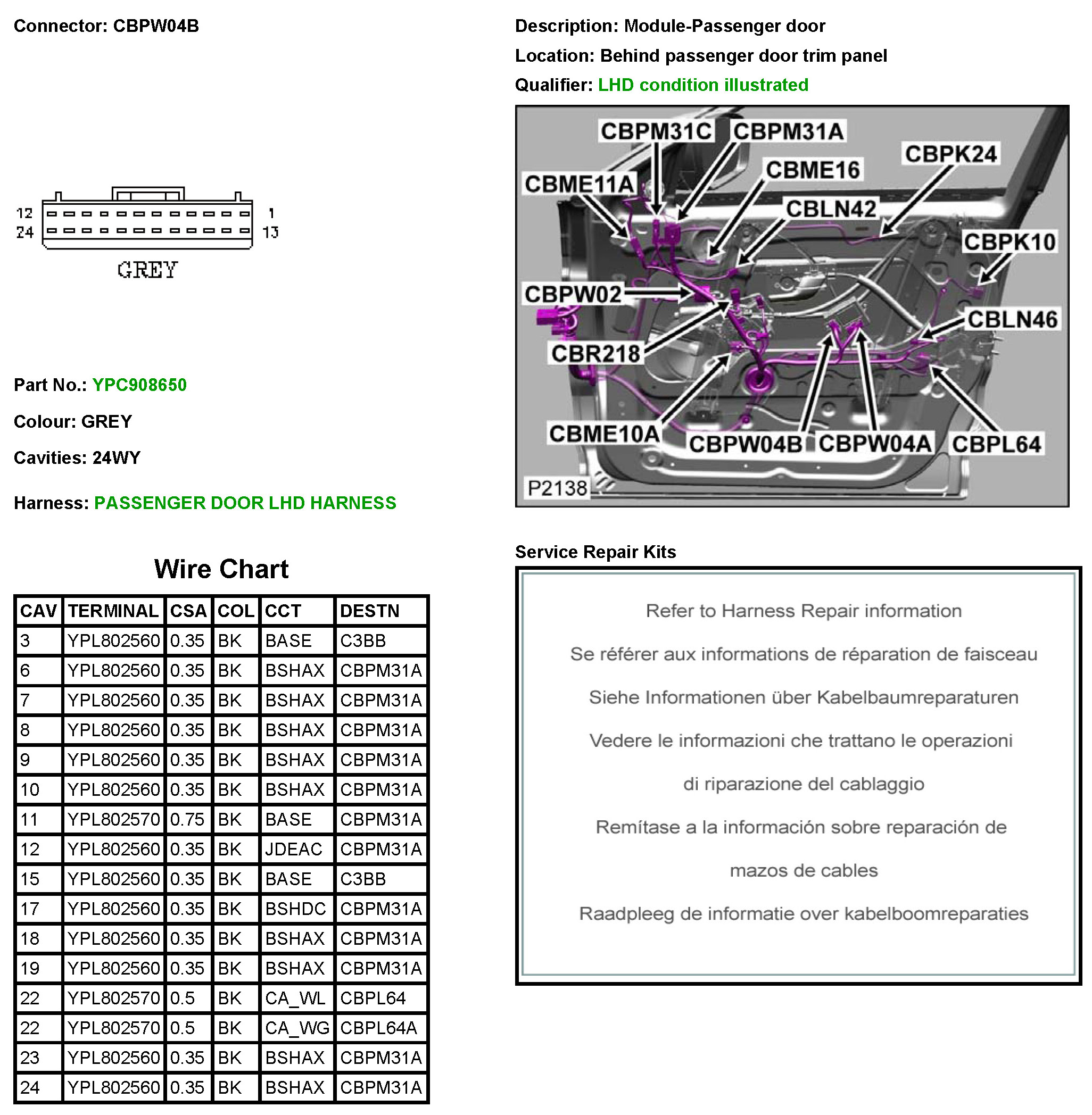

CBPW04B Module-Passenger Door



CBPW04B
