Range Rover Evoque (LV) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C33AH - C33X
>>

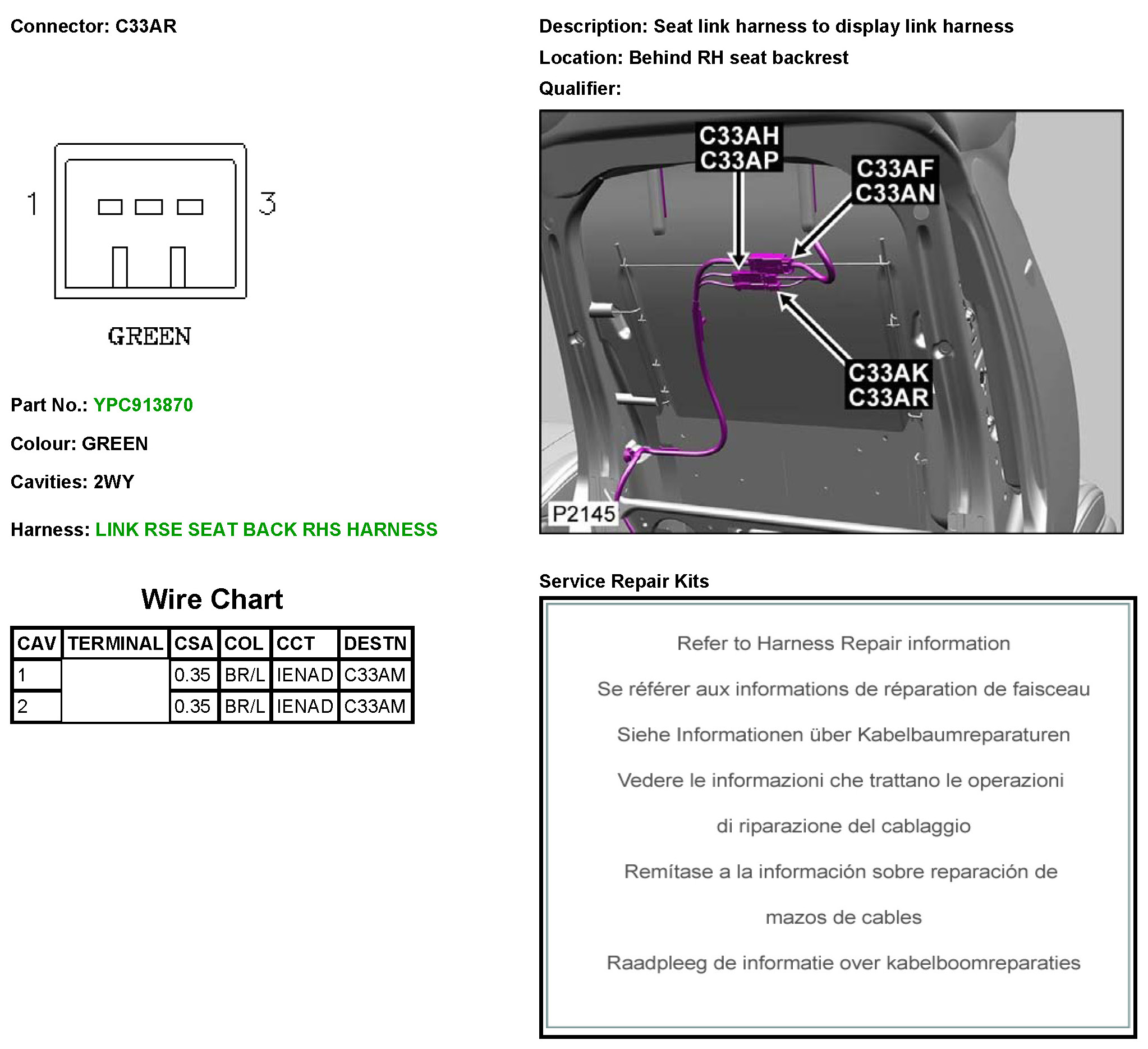

C33AR
C33AR
C33AR
