Range Rover Evoque (LV) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Specifications

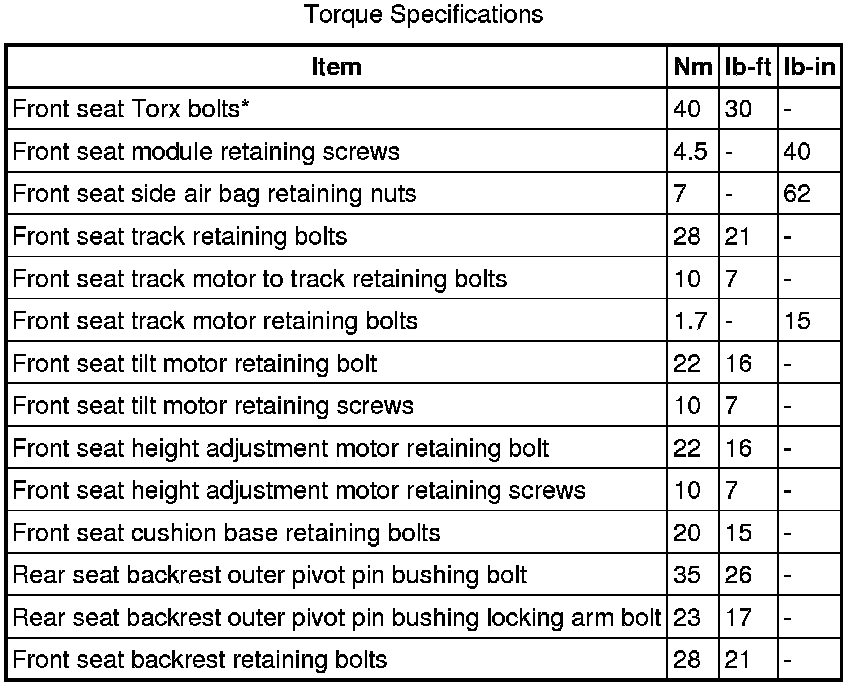

Seats: Specifications
Specifications
*New nuts/bolts must be Installed
