Sunroof / Moonroof Motor: Service and Repair

Glass Roof Panel Blind Motor
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

NOTE:
Removal steps in this procedure may contain installation details.

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

NOTE:
The step must be carried out on both sides.
For additional information, refer to A-Pillar Trim Panel Pillar Trim

3-door

NOTE:
The procedure must be carried out on both sides.
For additional information, refer to B-Pillar Upper Trim Panel B-Pillar Upper Trim Panel [5-Door]

5-door

NOTE:
The procedure must be carried out on both sides.
For additional information, refer to B-Pillar Upper Trim Panel B-Pillar Upper Trim Panel [5-Door]

NOTE:
The procedure must be carried out on both sides.
For additional information, refer to C-Pillar Upper Trim Panel C-Pillar Upper Trim Panel

All vehicles

NOTE:
The procedure must be carried out on both sides.
For additional information, refer to D-Pillar Trim Panel D-Pillar Trim Panel
For additional information, refer to Overhead Console Overhead Console

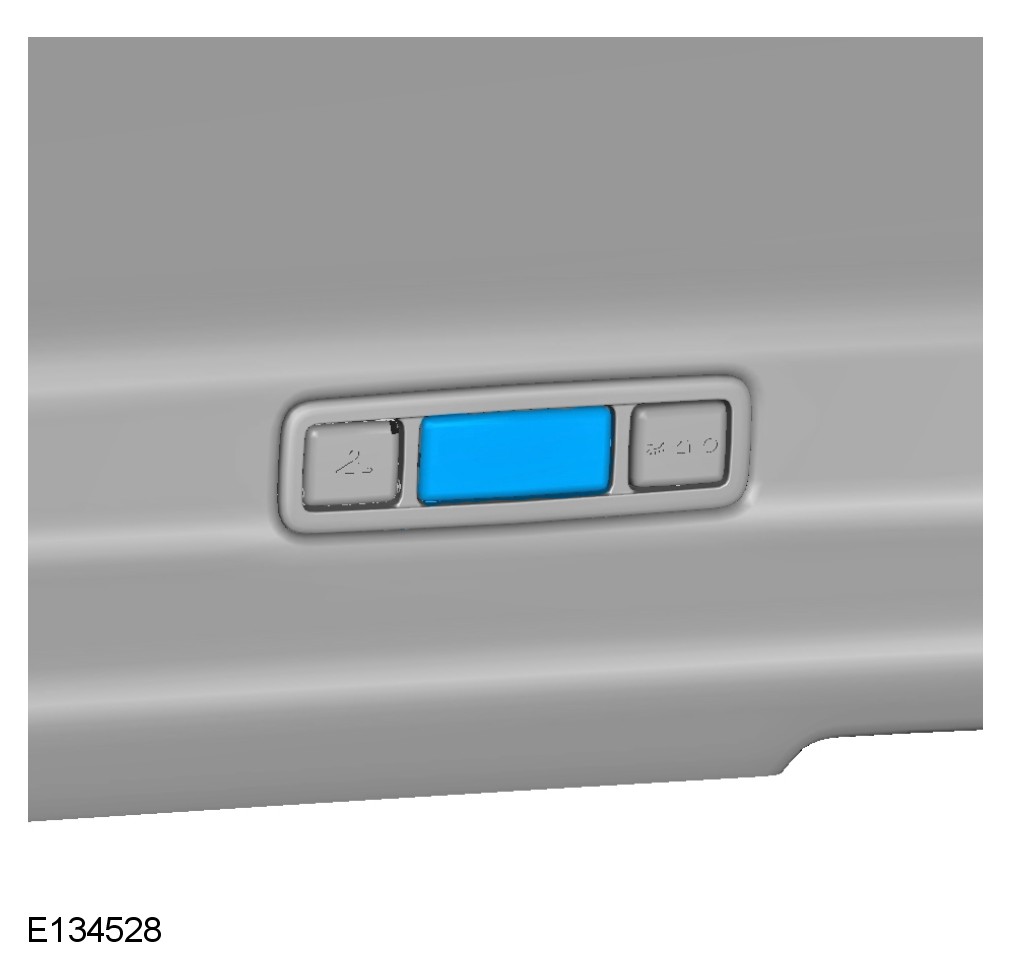

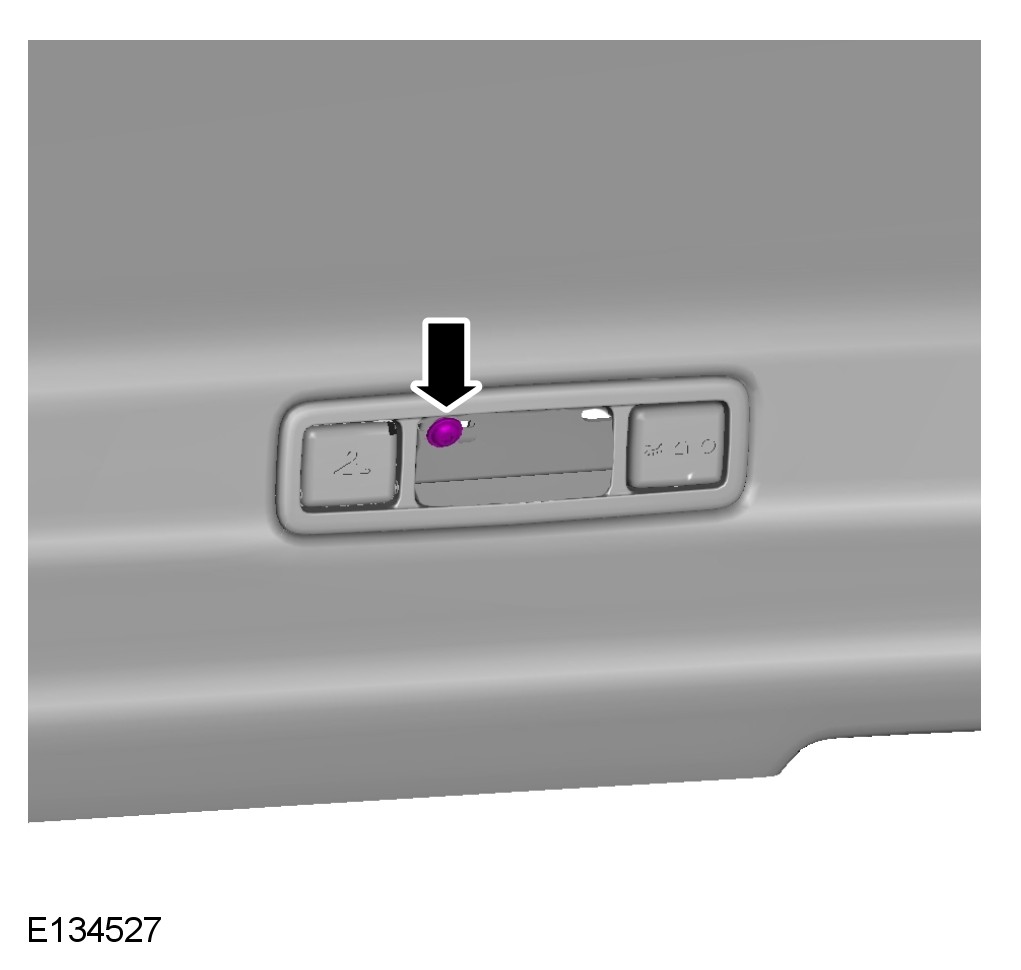

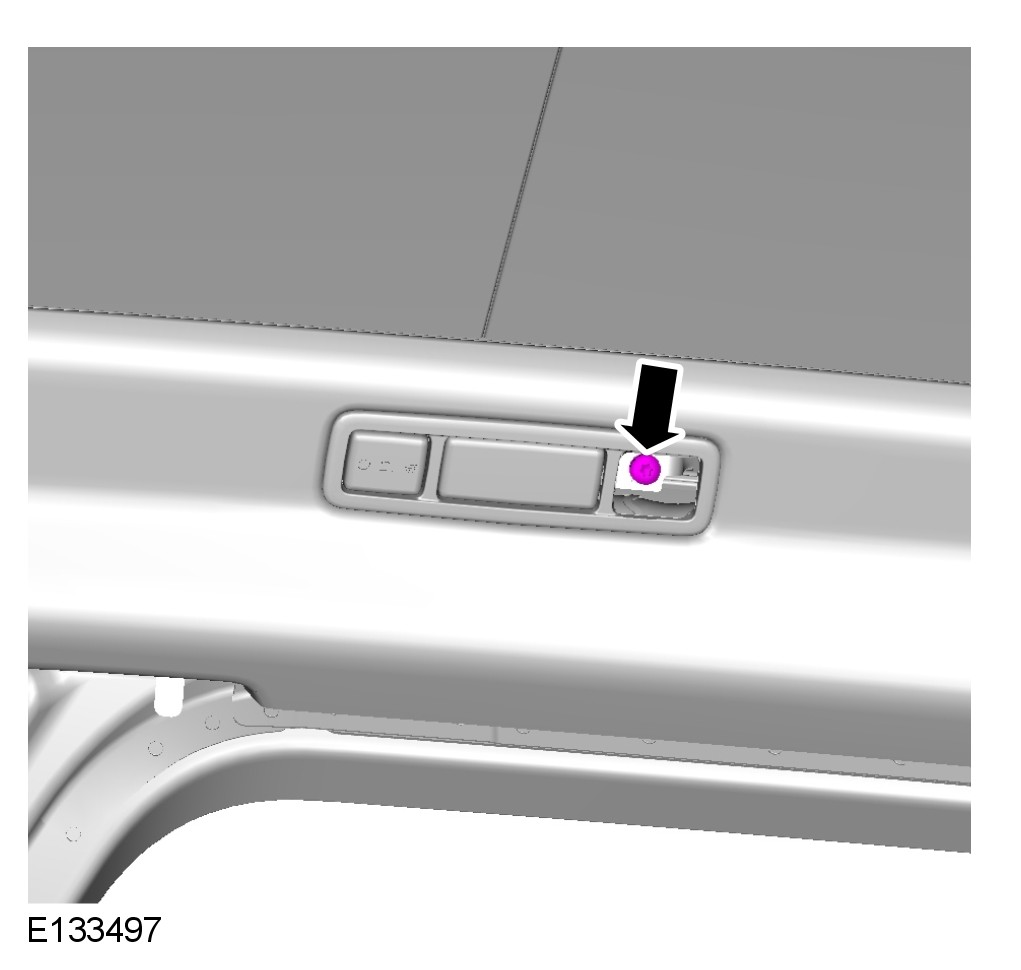

NOTE:
The step must be carried out on both sides.

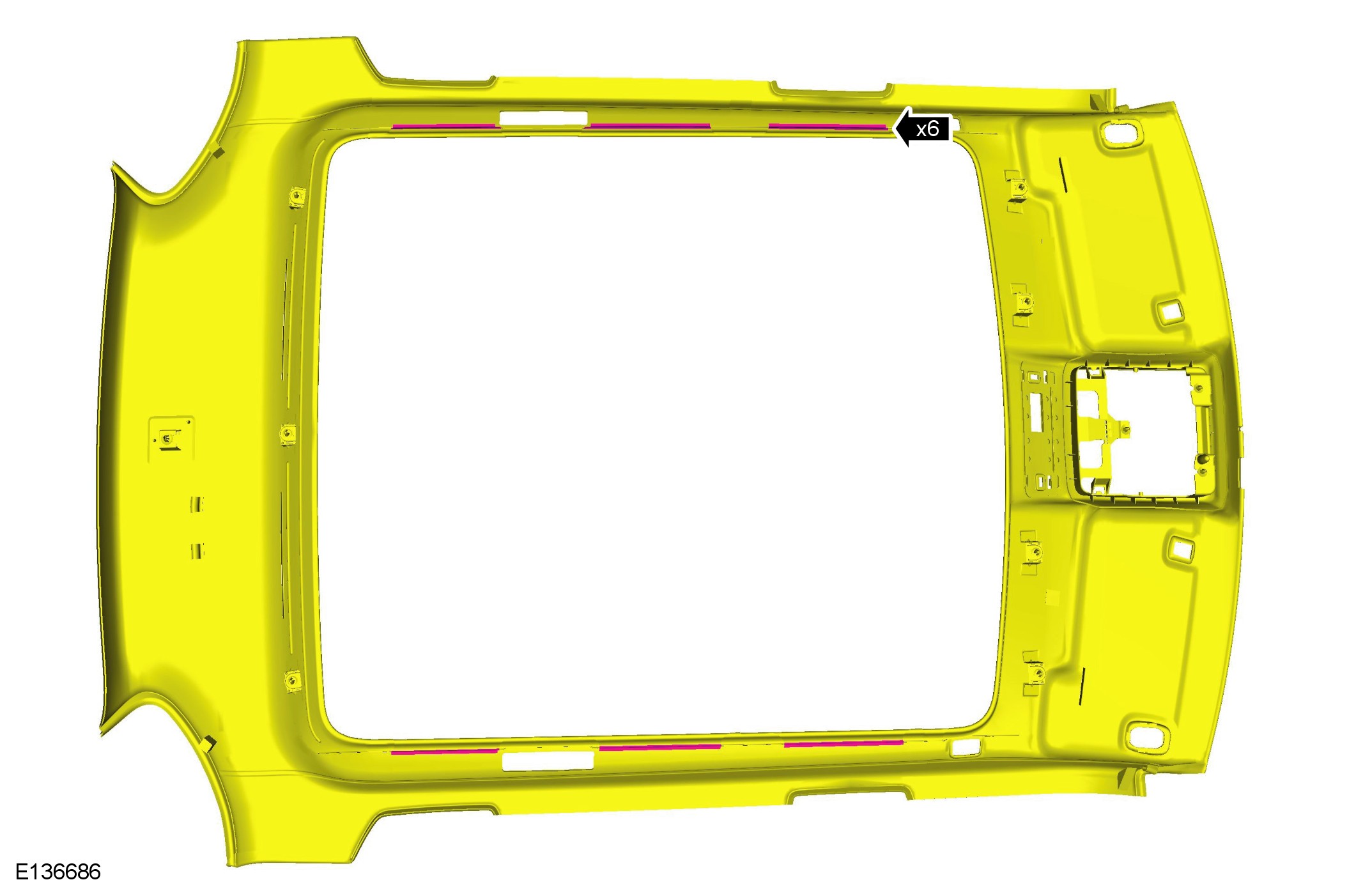

CAUTION: Do not use excessive force to release the headliner from the side retaining brackets.

NOTE:
Headliner shown removed for clarity.

NOTE:
Vehicles with glass roof panel only.

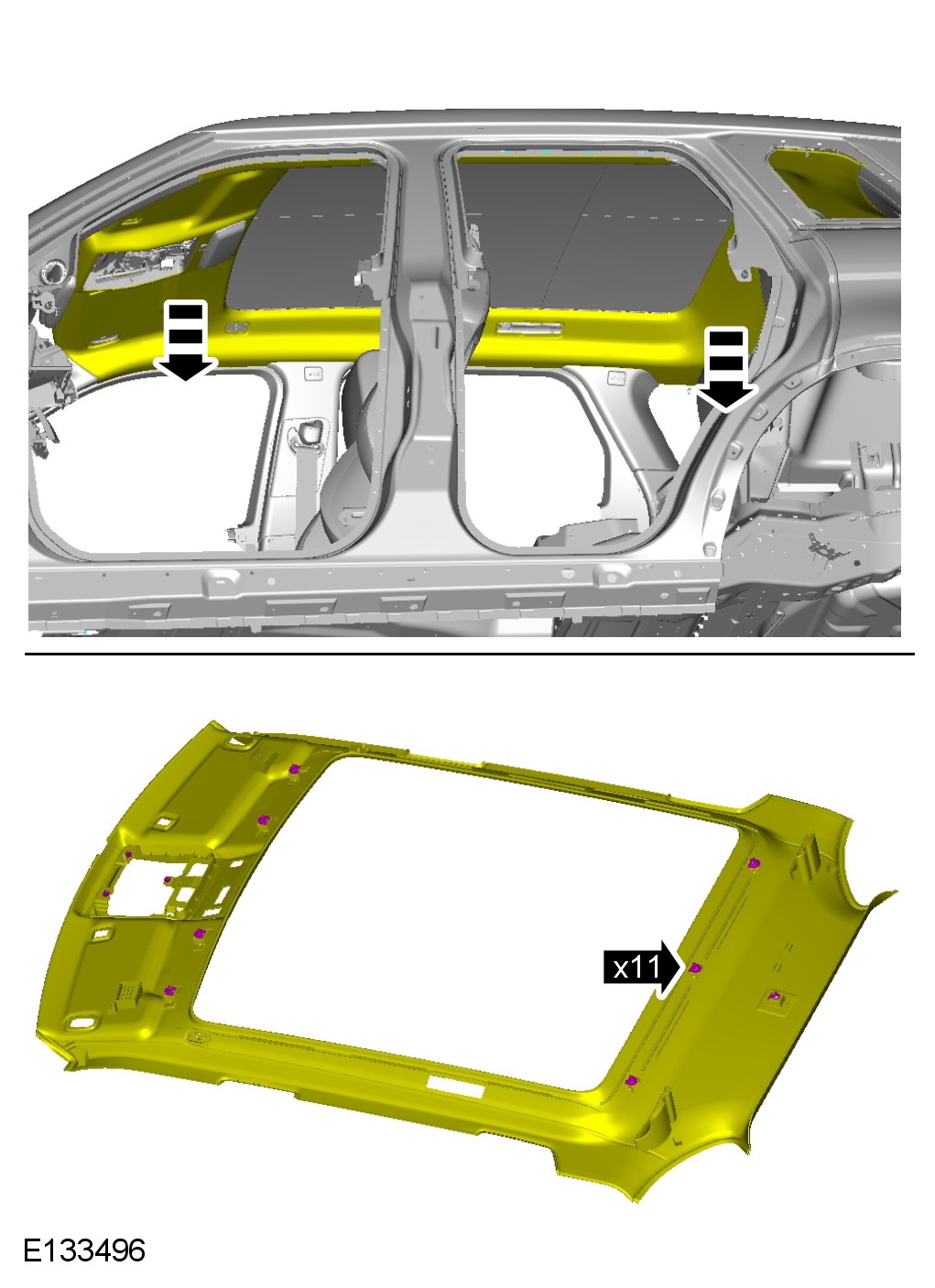

1 Release the headliner from the retaining brackets using a suitable plastic trim tool.

CAUTION: Extra care must be taken at this point, as the headliner is still retained by a locating clip at the rear and the 3 retaining clips at the front.

NOTE:
This step requires the aid of another technician.
2 Lower the headliner for access.

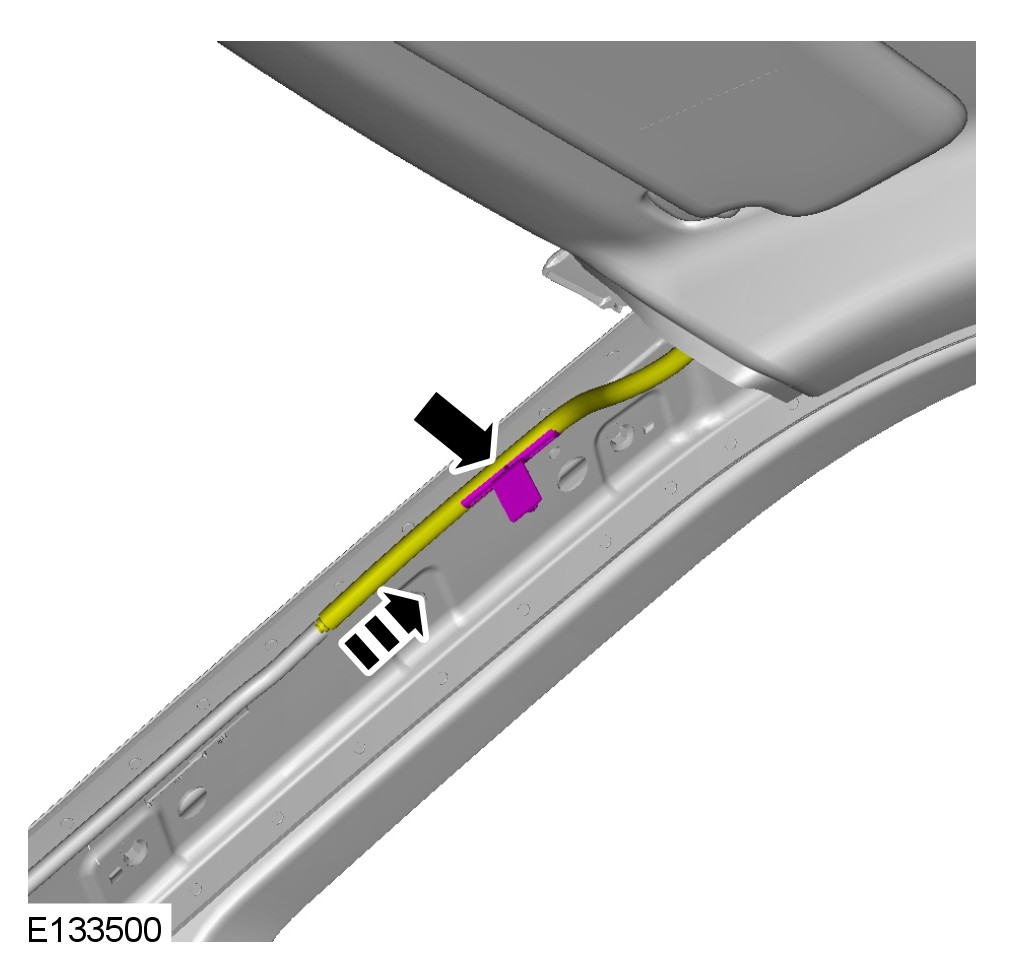

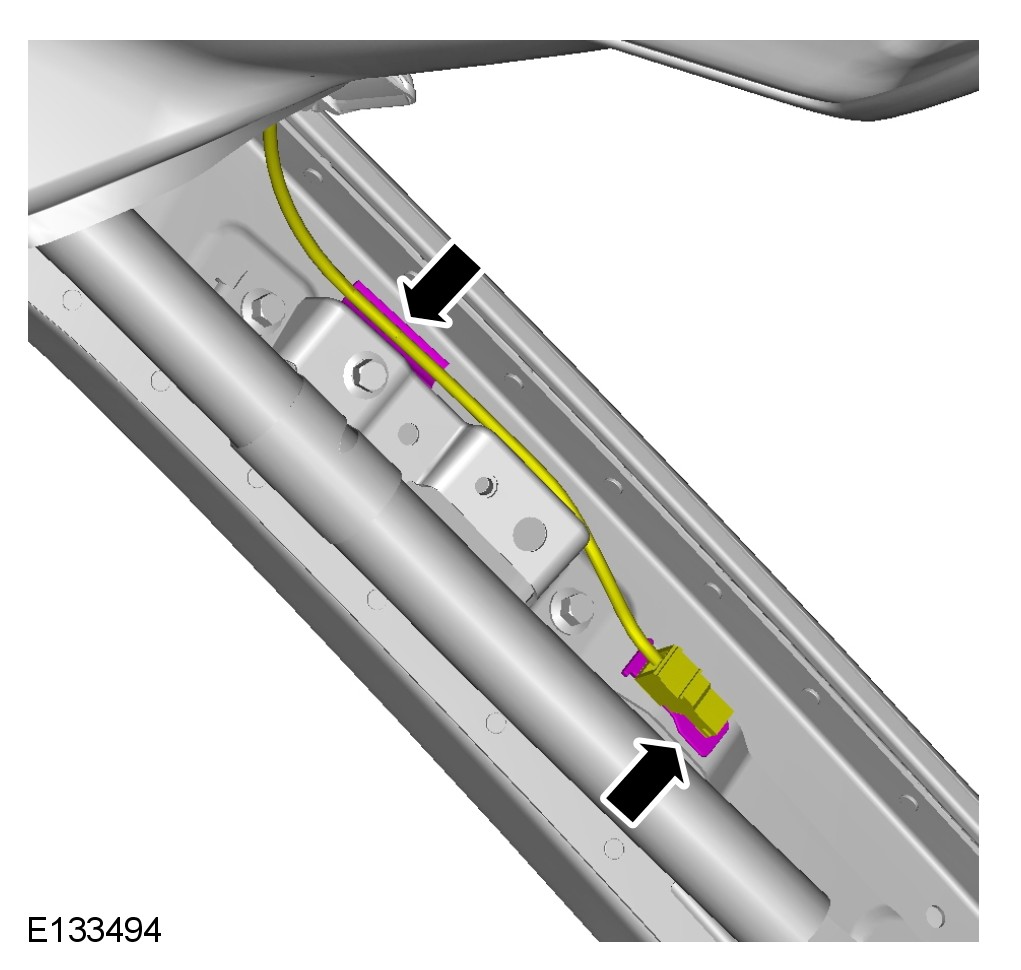

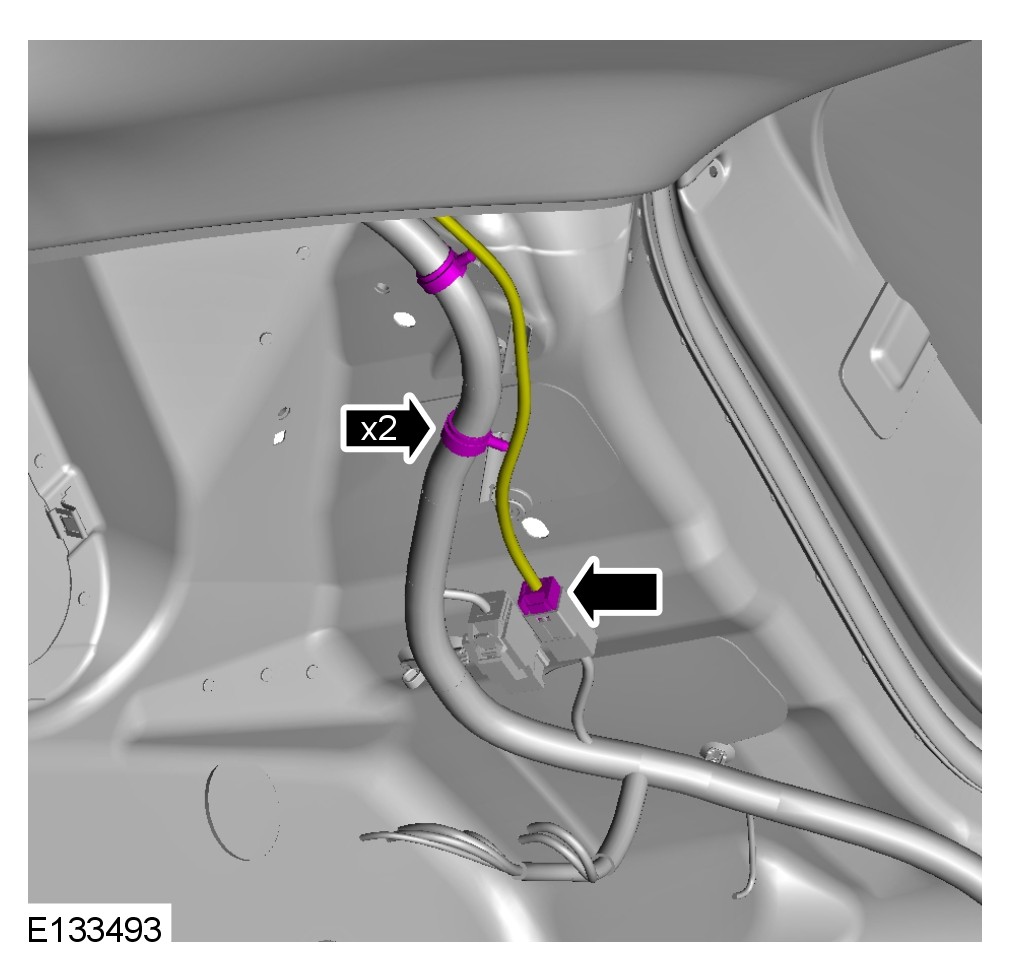

NOTE:
Headliner shown removed for clarity.

NOTE:
This step requires the aid of another technician.

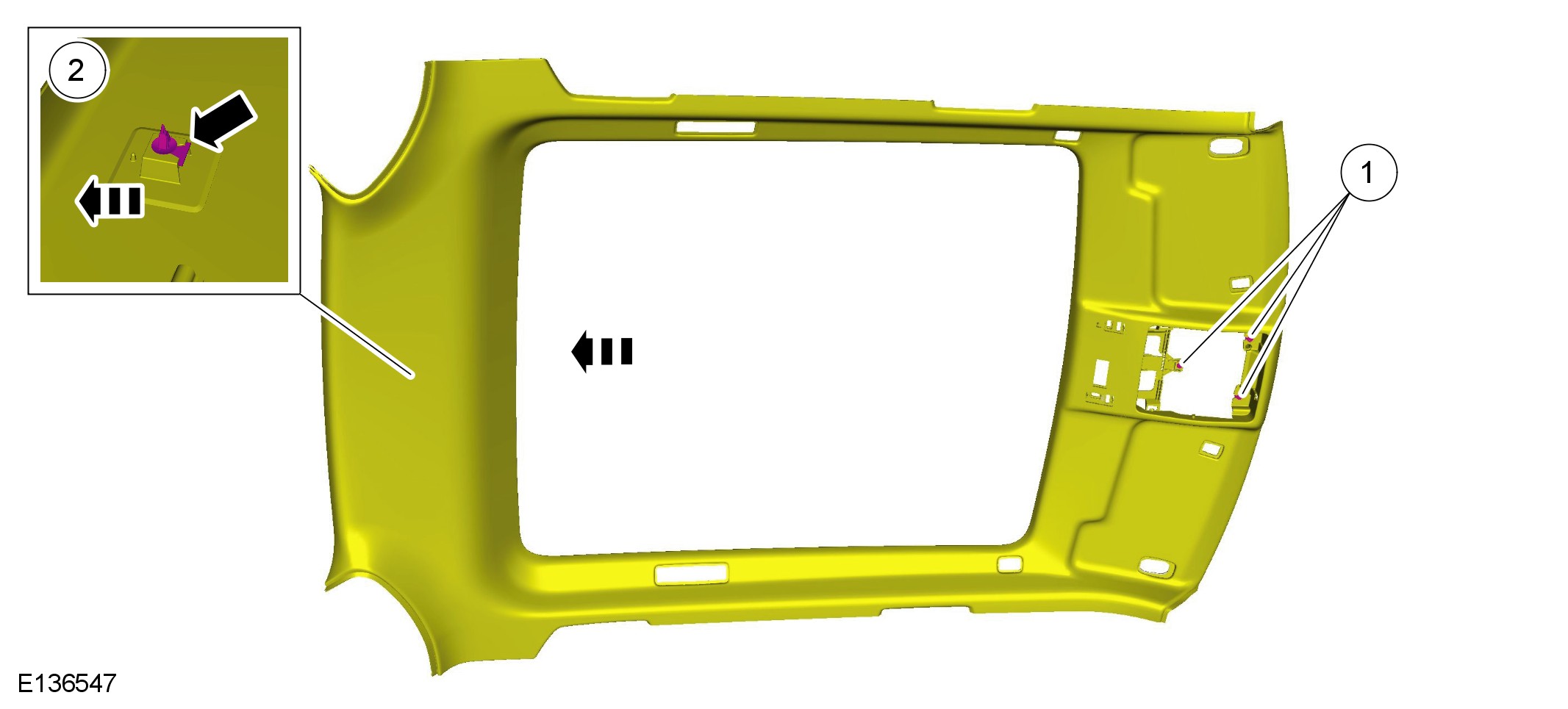

Release the headliner from the 3 front retaining clips (1) and slide rear wards to detach from the locating clip (2).
Lower the headliner for access.

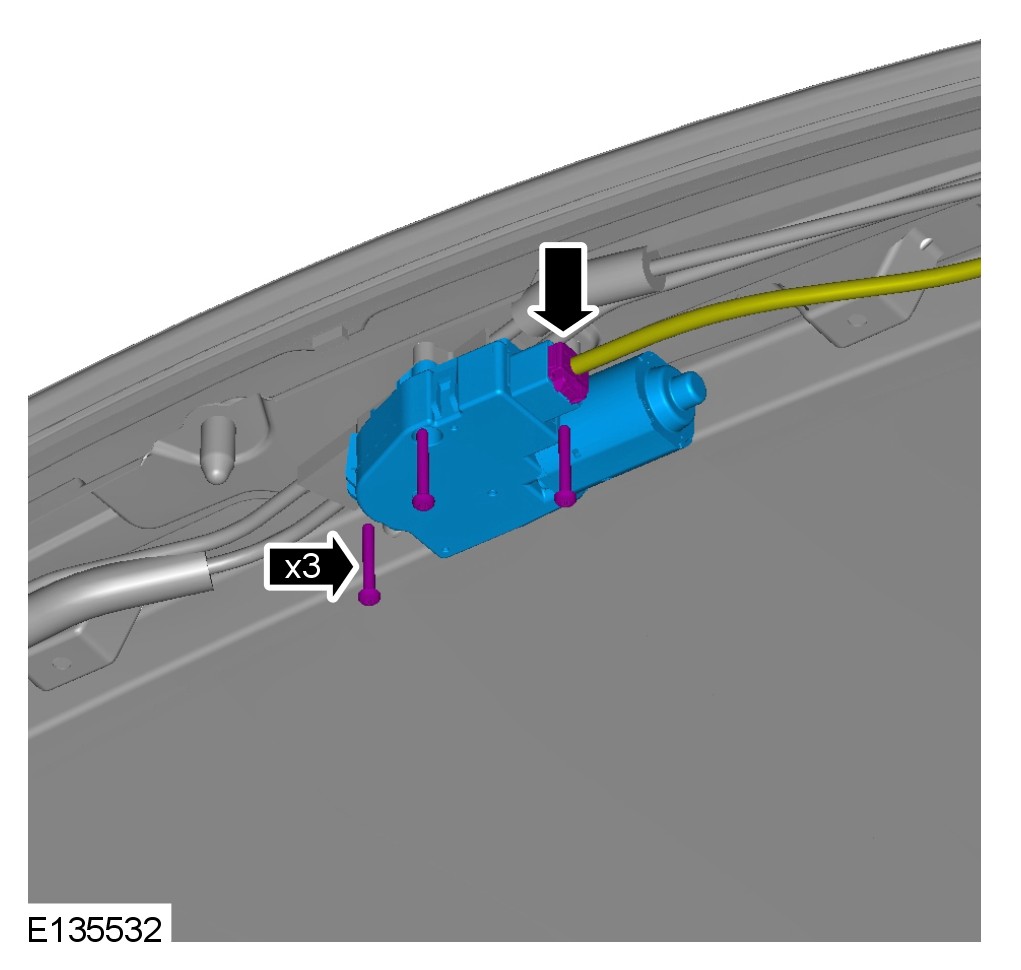

Torque to: 3.5 Nm

Installation
1 To install, reverse the removal procedure.
