Collision Avoidance and Parking Assist Systems: Testing and Inspection

Inspection and Verification
For additional information refer to the relevant Description and Operation section. For additional information, refer to Parking Aid Locations
For additional information, refer to Parking Aid Overview
For additional information, refer to Parking Aid Description
1 Verify the customer concern.

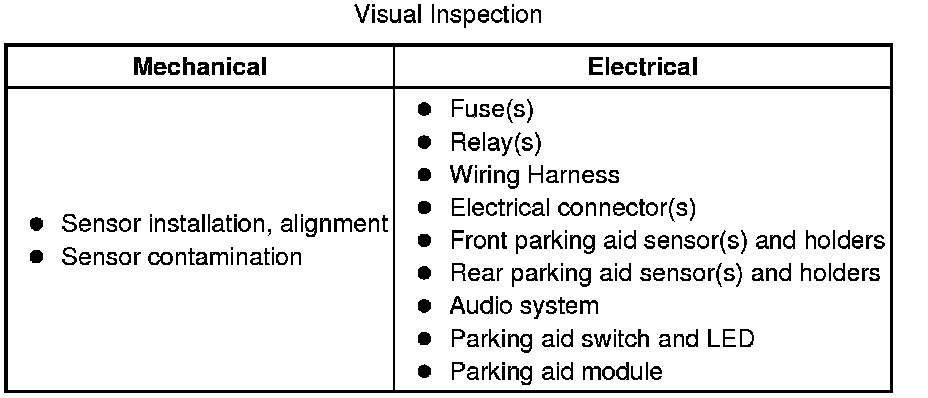

2 Visually inspect for obvious signs of mechanical or electrical damage.





3 If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step
4 If the cause is not visually evident, verify the symptom and refer to the Symptom Chart.
For a complete list of all diagnostic trouble codes that could be logged on this vehicle, please refer to Vehicle / A L L Diagnostic Trouble Codes ( DTC ). For additional information, refer to Diagnostic Trouble Code (DTC) Index - DTC: Parking Aid Module (PAM) Testing and Inspection
