Transmission Mount: Service and Repair

Transmission Support Insulator

Removal

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
1 Disconnect the battery ground cable. For additional information, refer to Specifications Battery and Charging System
2
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
3 Remove the transmission support crossmember. For additional information, refer to Transmission Support Crossmember - 5.0L Transmission Support Crossmember

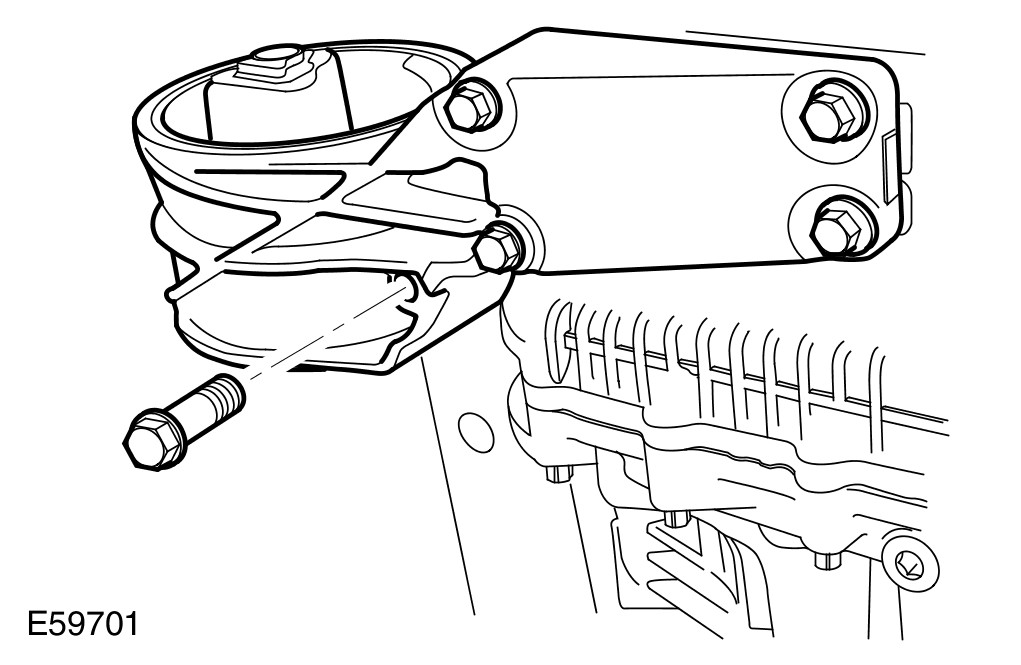

4 Remove the transmission support insulator.
- Remove the 5 bolts.

Installation
1 Install the transmission support insulator.
- Tighten the bolts to 45 Nm (33 lb.ft).
2 Install the transmission support crossmember. For additional information, refer to Transmission Support Crossmember - 5.0L Transmission Support Crossmember
3 Connect the battery ground cable. For additional information, refer to Specifications Battery and Charging System
