Initial Inspection and Diagnostic Overview

Transmission Cooling Inspection and Verification

1 Verify the customer concern by operating the system.

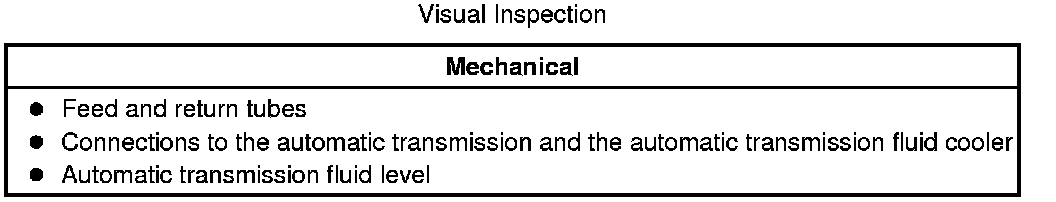

2 Visually inspect for obvious signs of damage and system integrity.





3 If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4 If the cause is not visually evident, verify the symptom and refer to the Symptom Chart, alternatively check for Diagnostic Trouble Codes (DTCs) and refer to the DTC Index.

DTC Index
For a list of Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to A L L Diagnostic Trouble Codes ( DTC ). For additional information, refer to Diagnostic Trouble Code (DTC) Index - DTC: Module Name: Transmission Control Module - Siemens Transmission Control Module (TCM) - Siemens
