Transmission Fluid Cooler Tubes

Transmission Fluid Cooler Tubes
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

NOTE:
Removal steps in this procedure may contain installation details.
1 Disconnect the battery ground cable.
For additional information, refer to Specifications Battery and Charging System

WARNING: Make sure to support the vehicle with axle stands.
2 Raise and support the vehicle.
For additional information, refer to Engine Undershield Engine Undershield
For additional information, refer to Front Driveshaft - 5.0L Front Driveshaft
For additional information, refer to Transmission Fluid Level Check Transmission Fluid Level Check
3 Remove the LH front road wheel.
Torque to: 140 Nm





WARNING: Be prepared to collect escaping fluids.

CAUTION: Always plug any open connections to prevent contamination.

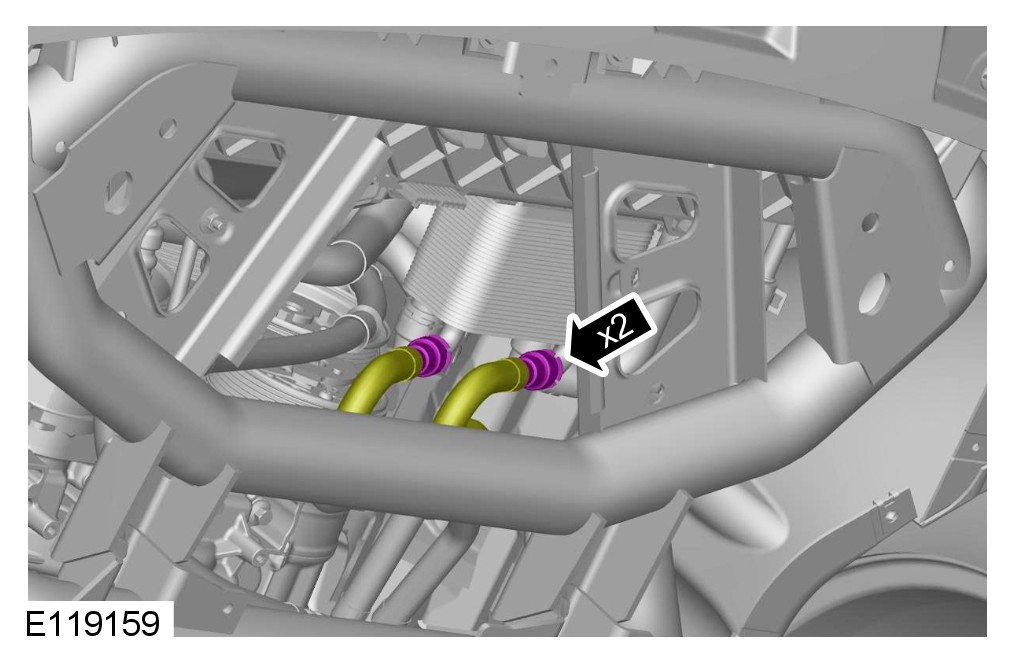

Torque to: 23 Nm





WARNING: Be prepared to collect escaping fluids.

CAUTION: Before disconnecting or removing the components, ensure the area around the joint faces and connections are clean and dry. Plug open connections to prevent contamination.

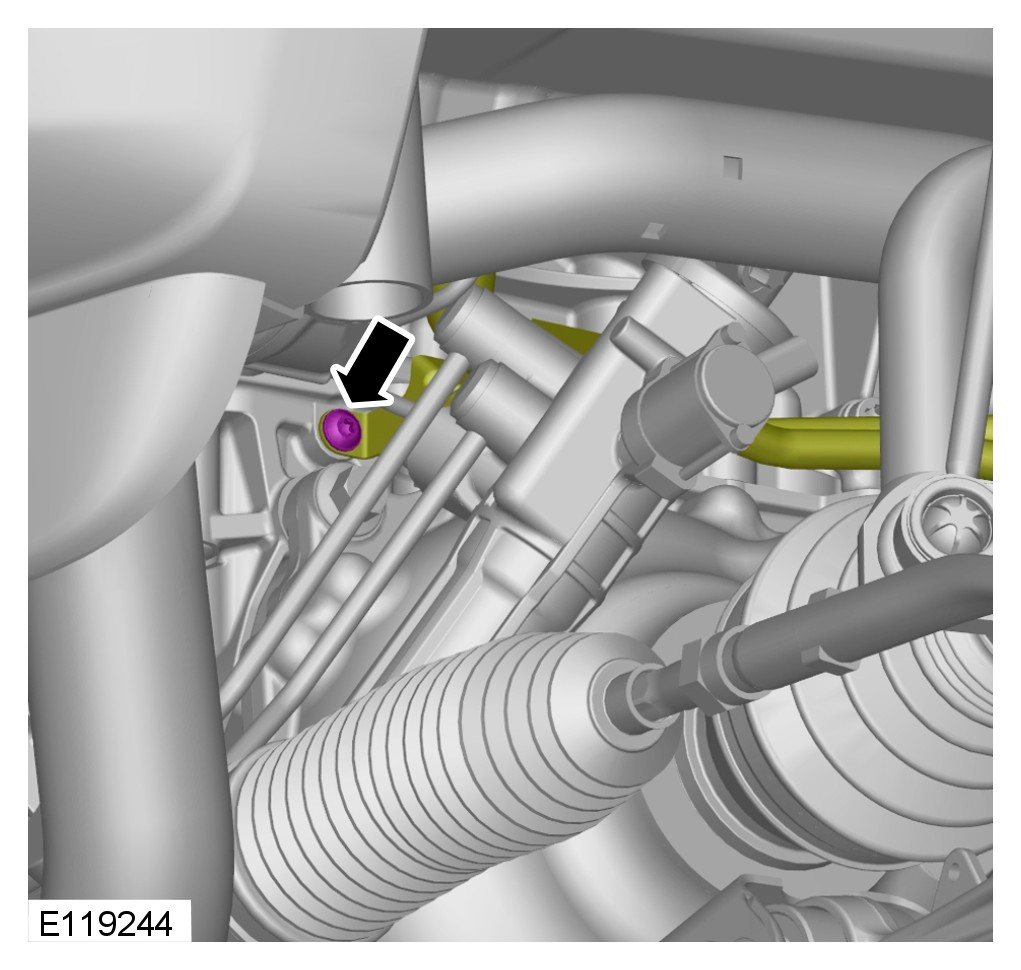

Torque to: 10 Nm





Installation
1 To install, reverse the removal procedure.
