Air Suspension Reservoir Solenoid Valve Block

Air Suspension Reservoir Solenoid Valve Block

Removal
1 Using T4, depressurize the air suspension. For additional information, refer to Air Suspension System Depressurize and Pressurize
2 Disconnect the battery ground cable. For additional information, refer to Specifications Battery and Charging System
3 Remove the air suspension pressure switch. For additional information, refer to Air Suspension Switch Air Suspension Switch




4
CAUTION: Before disconnecting or removing the components, ensure the area around the joint faces and connections are clean and dry. Plug open connections to prevent contamination.
CAUTION: Break the Voss collet to remove, attempting to slide the collet from the air line will result in damage.
NOTE:
Note the air line fitted positions.

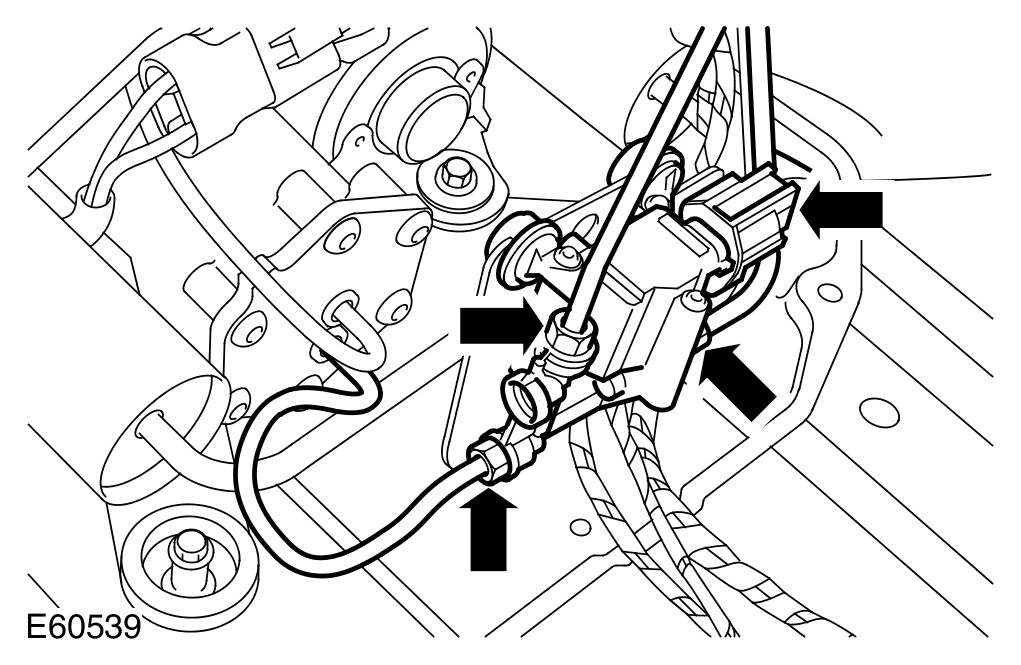

Remove the air suspension reservoir solenoid valve block.
- Disconnect the electrical connector.
- Release the air suspension reservoir solenoid valve block, from the compressor mounting bracket.
- Disconnect the 3 air lines.
- Remove and discard the Voss connector collets and unions from the air lines.
- Remove the 3 rubber insulators.

Installation
1
NOTE:
New air suspension components are supplied with new Voss connectors tightened to the correct torque. Do not install new voss connectors if a new component is being installed.
Install the air suspension reservoir solenoid valve block.
- Install the rubber insulators.
- Remove the Voss collet alignment pegs.
- Connect the air lines.
- Mount the air suspension reservoir valve block.
- Connect the electrical connector.
2 Install the air suspension pressure switch. For additional information, refer to Air Suspension Switch Air Suspension Switch
3 Connect the battery ground cable. For additional information, refer to Specifications Battery and Charging System
4 Using T4, pressurize the air suspension. For additional information, refer to Air Suspension System Depressurize and Pressurize
