Front Suspension





Front Stabilizer Bar Link

Removal
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise the front of the vehicle.
2 Remove the wheel and tire.

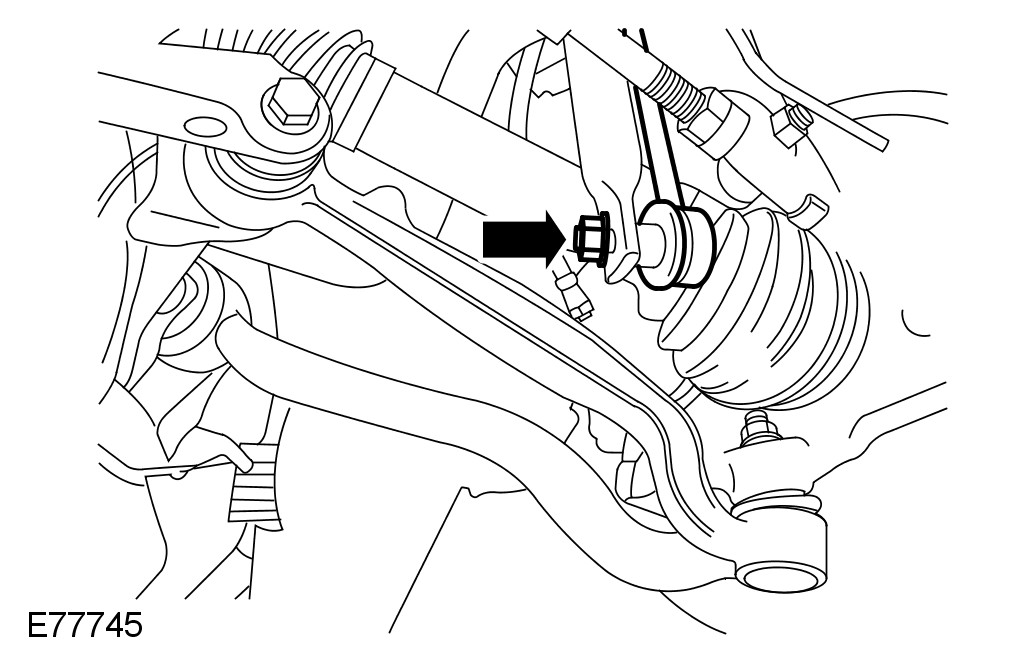

3 Release the stabilizer bar link.
- Remove the nut.




4
CAUTION: Note the fitted position of the special washer.

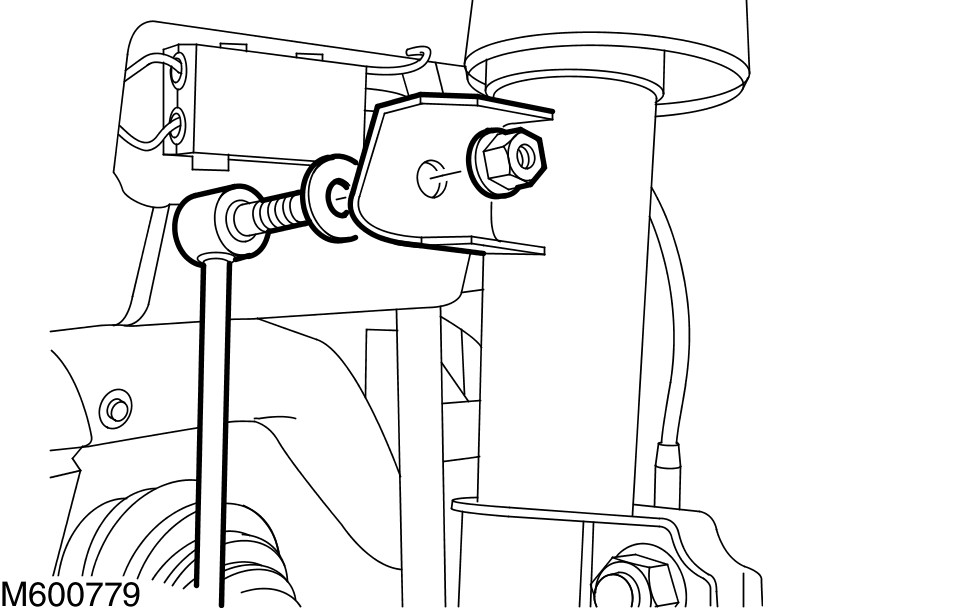

Remove the stabilizer bar link.
- Remove the nut.
- Collect the washer.

Installation
1 Install the stabilizer bar link.
- Install the special washer.
- Tighten the nuts to 100 Nm (74 lb.ft).
2 Install the wheel and tire.
- Tighten the wheel nuts to 140 Nm (103 lb.ft).
