Rear Drive Axle/Differential

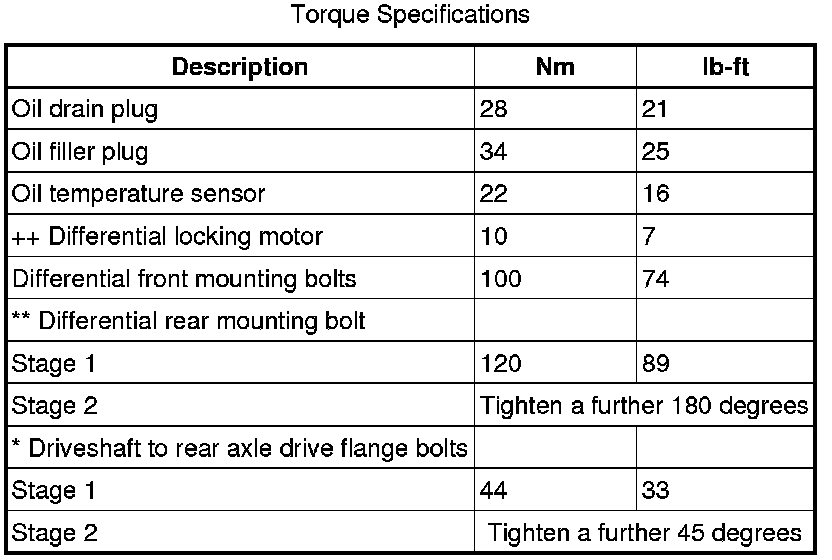

Specifications














* New ''Patchlok' Torx bolts must be installed
** New nut must be installed
++ Apply sealant, Part No. STC 50550 to flange of locking motor
