Home >> Land Rover >> 2012 >> Range Rover (LM) V8-5.0L SC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Alignment\Ride Height

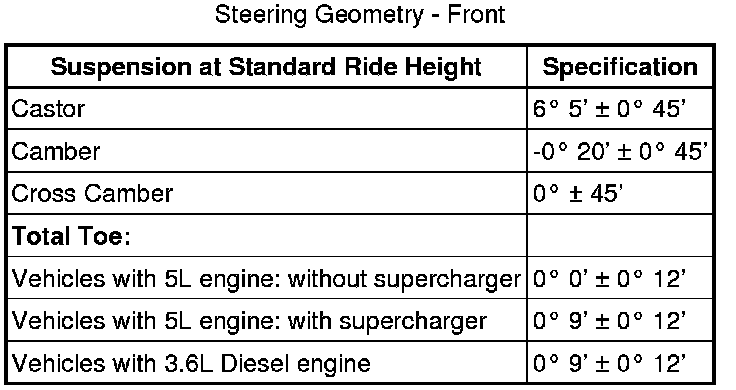

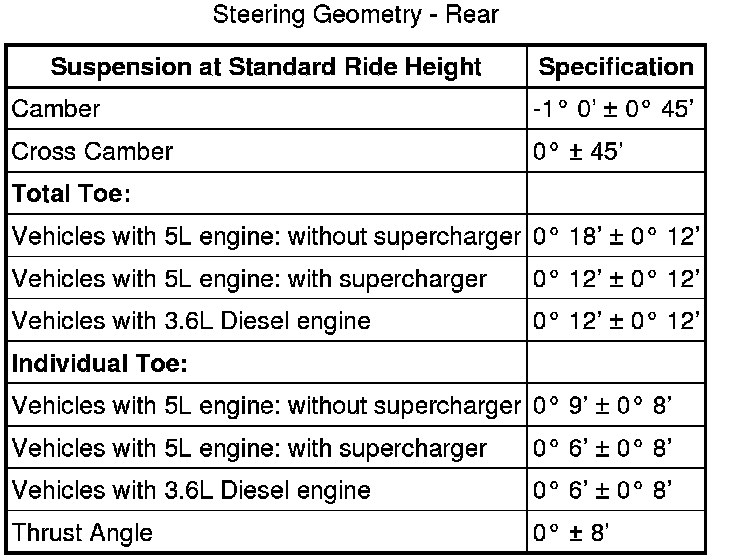

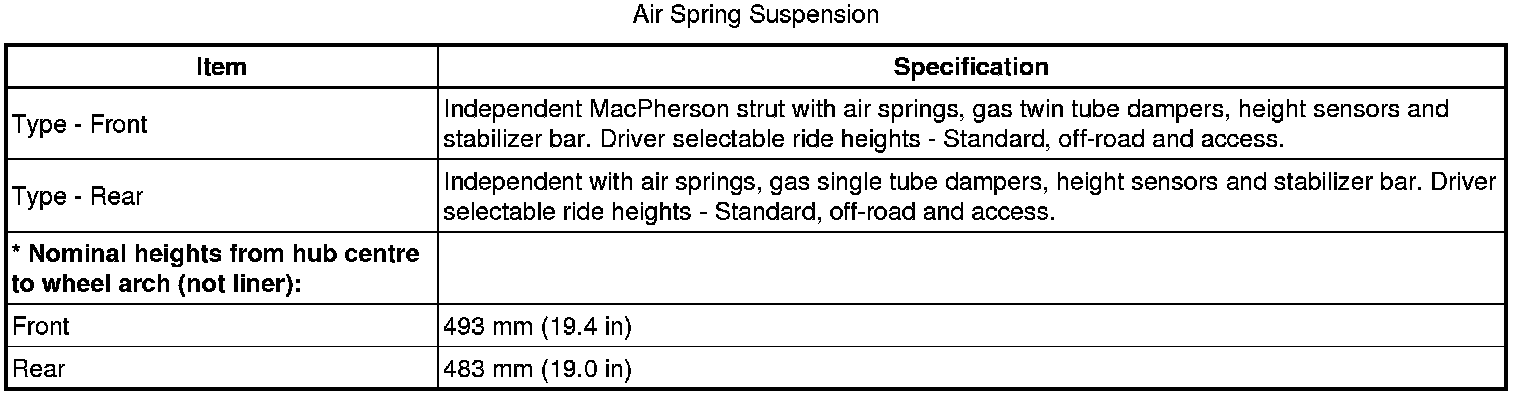

Alignment\Ride Height










* Measurement taken with vehicle at unladen weight
