Rear Center Safety Belt Buckle

Rear Center Safety Belt Buckle

Removal
1 Fold the rear seat fully forwards.
- Release the rear seat backrest catch.




2 Remove the rear seat backrest inner hinge cover.
- Remove the 3 screws.




3 Remove the rear seat backrest inner hinge.
- Remove the 4 bolts.
- Discard the 2 lower bolts.

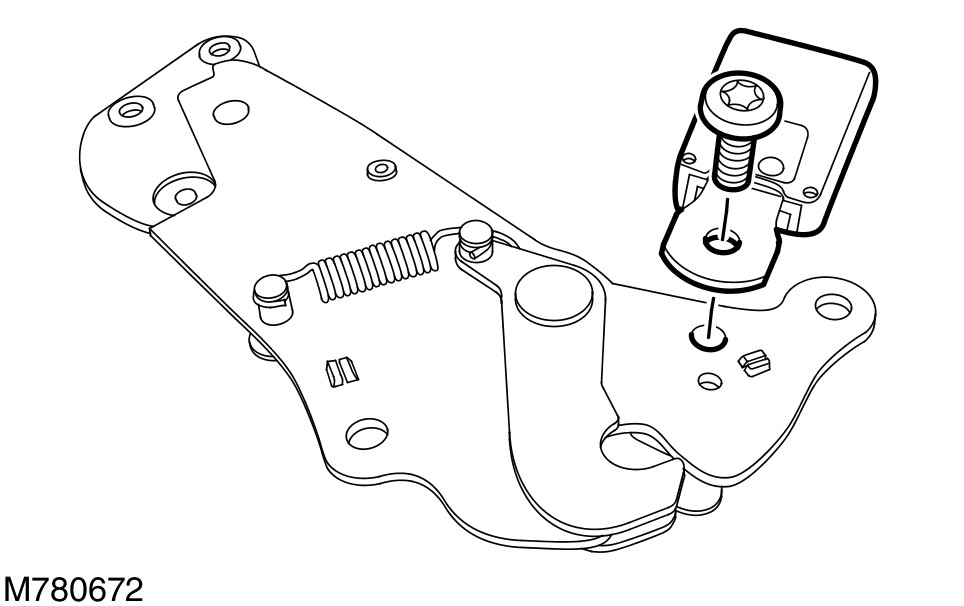

4 Remove the rear safety belt buckle.
- Remove and discard the bolt.

Installation
1 Install the rear safety belt buckle.
- Install the new bolt and tighten to 25 Nm (18 lb.ft).
2 Install the rear seat backrest inner hinge.
- Install the 2 upper bolts.
- Install the 2 new lower bolts.
- Tighten the bolts to 25 Nm (18 lb.ft).
3 Install the rear seat backrest inner hinge cover.
- Install the 3 screws.
4 Fold the rear seat fully rearwards.
- Secure the rear seat backrest catch.
