FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Land Rover
>>
2012
>>
Range Rover (LM) V8-5.0L SC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Blower Motor
>>
Diagrams
>>

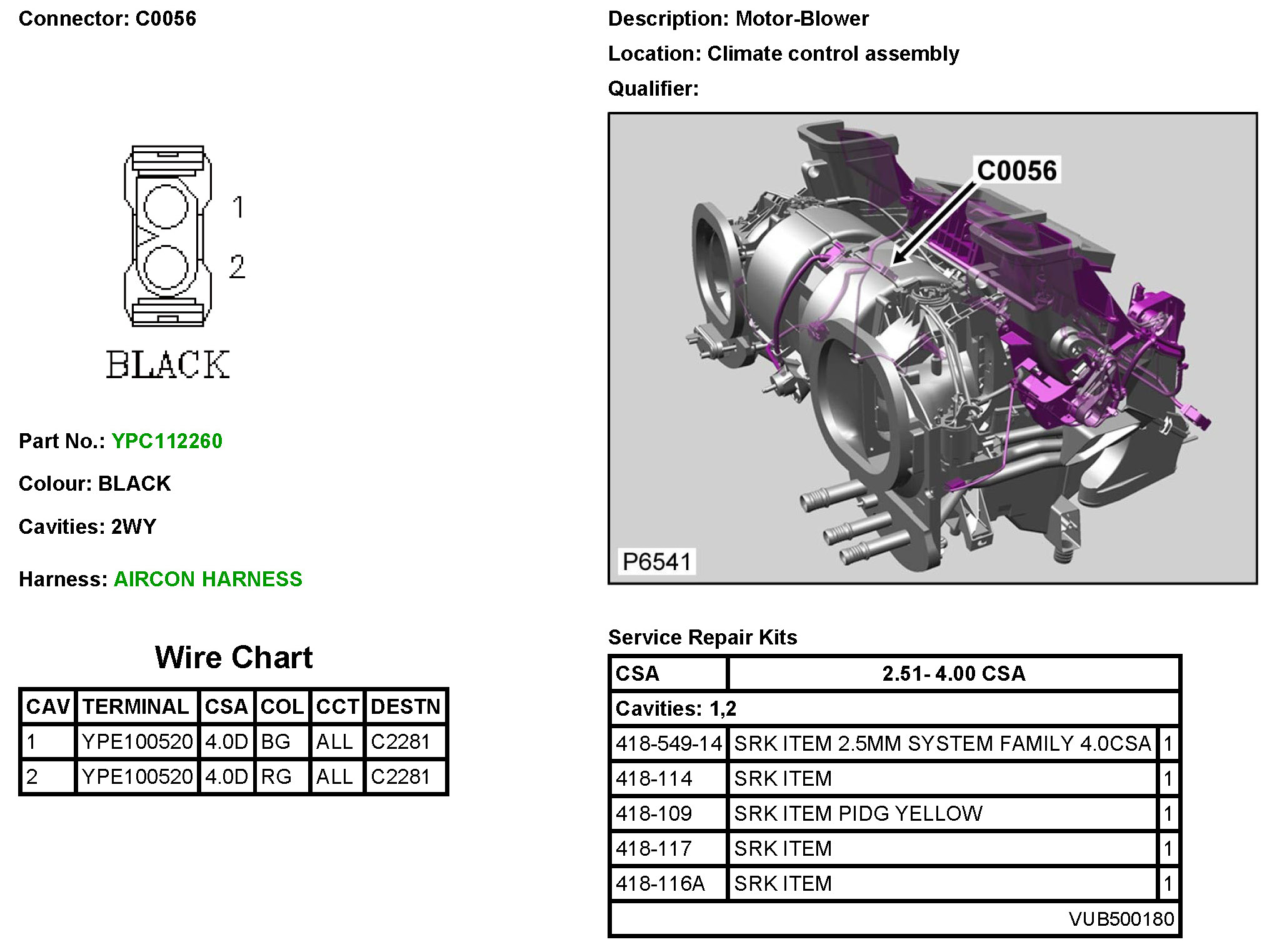

C0056 Motor-Blower
C0056 Motor-Blower
C0056
