Camshaft Lobe Lift





Camshaft

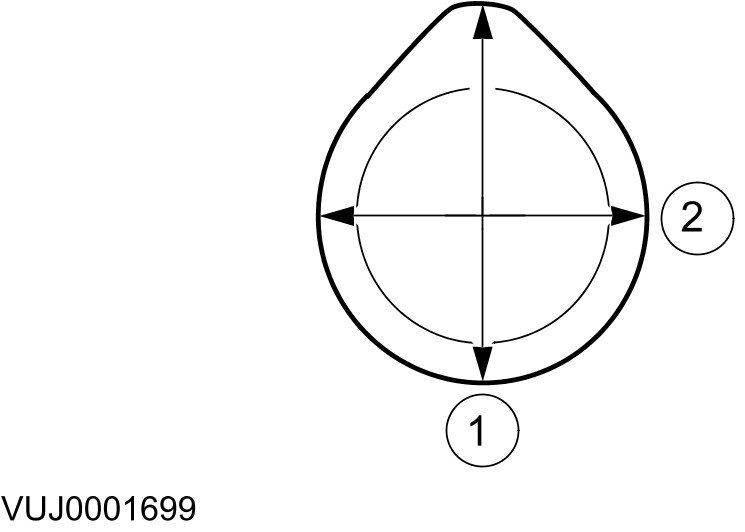

1 Measure the diameter (1) and diameter (2) with a vernier caliper. The difference in measurements is the lobe lift.
