Engine Mount LH

Engine Mount LH
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal
All vehicles
1 Disconnect the battery ground cable.
For additional information, refer to Specifications Battery and Charging System

WARNING: Make sure to support the vehicle with axle stands.
2 Raise and support the vehicle.
For additional information, refer to Air Cleaner Outlet Pipe T-Connector Air Cleaner Outlet Pipe T-Connector
For additional information, refer to Differential Draining and Filling Front Drive Axle/Differential

































CAUTION: Support the halfshaft.
Remove and discard the retaining clip.
Special Service Tool




Remover, Halfshaft Inner Joint, 205-735





CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.

CAUTION: Make sure no damage occurs to the halfshaft seal when installing the halfshaft.

NOTE:
With assistance remove the components.
Install a new halfshaft oil seal.

Left-hand drive vehicles









All vehicles









CAUTION: Always protect the cooling pack elements to prevent accidental damage.

NOTE:
The thread is right handed.

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

Special Service Tool




Viscous Coupling Wrench, 303-1142

Special Service Tool




Viscous Coupling Holding Tool, 303-1143









CAUTION: Use a wooden block to protect the oil pan when supporting the engine.

Installation
All vehicles

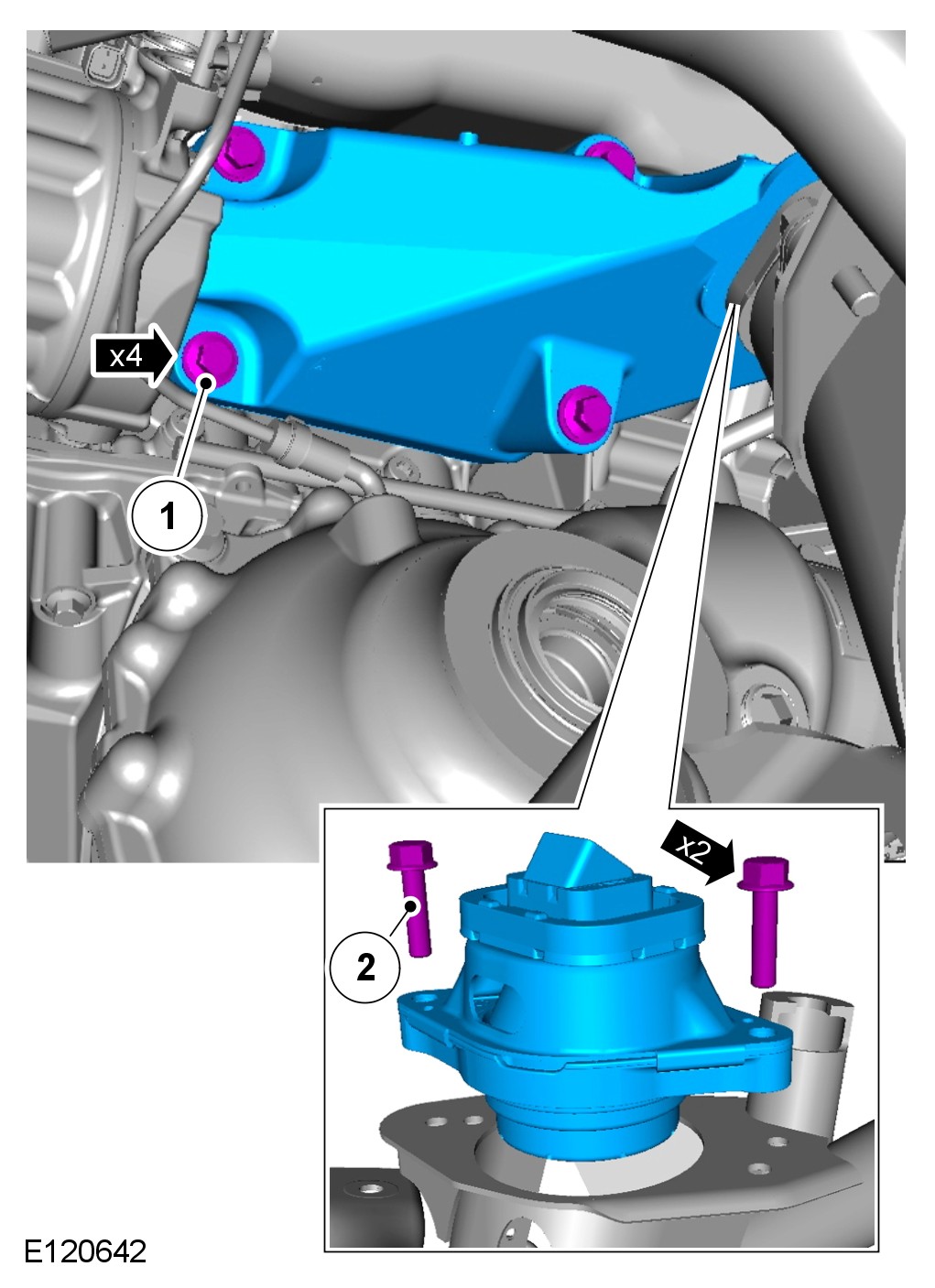

1: 45 Nm
1:
60 degree
2: 56 Nm





Torque to: 100 Nm





Torque to: 10 Nm

Left-hand drive vehicles





Torque to: 24 Nm





Torque to: 100 Nm

All vehicles





CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.

CAUTION: Make sure no damage occurs to the halfshaft seal when installing the halfshaft.
Install a new halfshaft oil seal.





CAUTION: The seal protector must be left in place until the halfshaft has been installed.

NOTE:
LH illustration shown, RH is similar.
Clean the component mating faces.
Special Service Tool




Slide Hammer, 100-012

Special Service Tool




Install Halfshaft Seal, 308-626

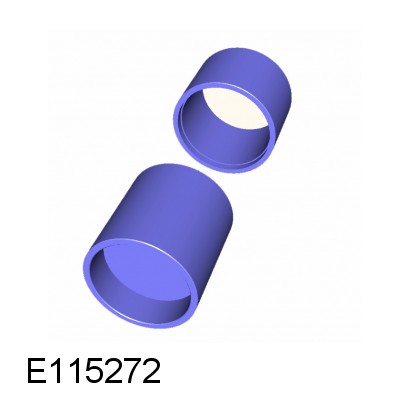

Special Service Tool




Installer/Guide halfshaft oil seal, 308-621-2

CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.

CAUTION: Pull on the halfshaft inboard joint to make sure the clip has fully engaged and retains the halfshaft inboard joint within the differential case.

NOTE:
Do not fully engage the halfshaft until the oil seal protector has been removed.
Install a new retaining clip.
Open the halfshaft oil seal protector.
Lubricate the seal with clean differential fluid.





Step 1: 165 Nm

Step 2: 90 degree





Torque to: 250 Nm





Torque to: 8 Nm





Torque to: 80 Nm









Torque to: 275 Nm
For additional information, refer to Differential Draining and Filling Front Drive Axle/Differential
For additional information, refer to Air Cleaner Outlet Pipe T-Connector Air Cleaner Outlet Pipe T-Connector
1 Connect the battery ground cable.
For additional information, refer to Specifications Battery and Charging System
