Power Trunk / Liftgate Lock Actuator
>>

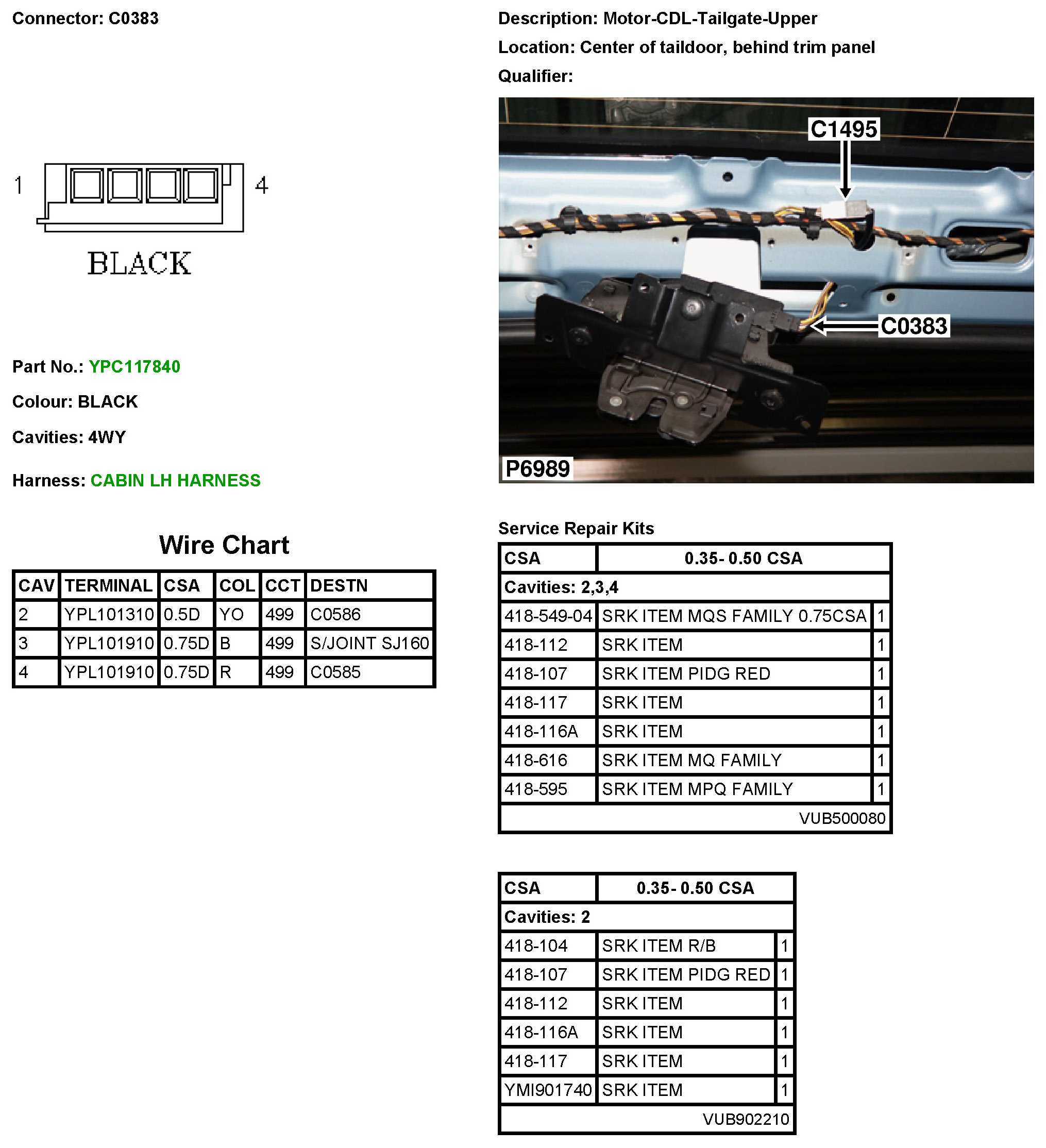

C0383 Motor-CDL-Tailgate-Upper
C0383 Motor-CDL-Tailgate-Upper
C0383
