Land Rover
>>
2012
>>
Range Rover (LM) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Climate Control Exhaust Gas Sensor
>>

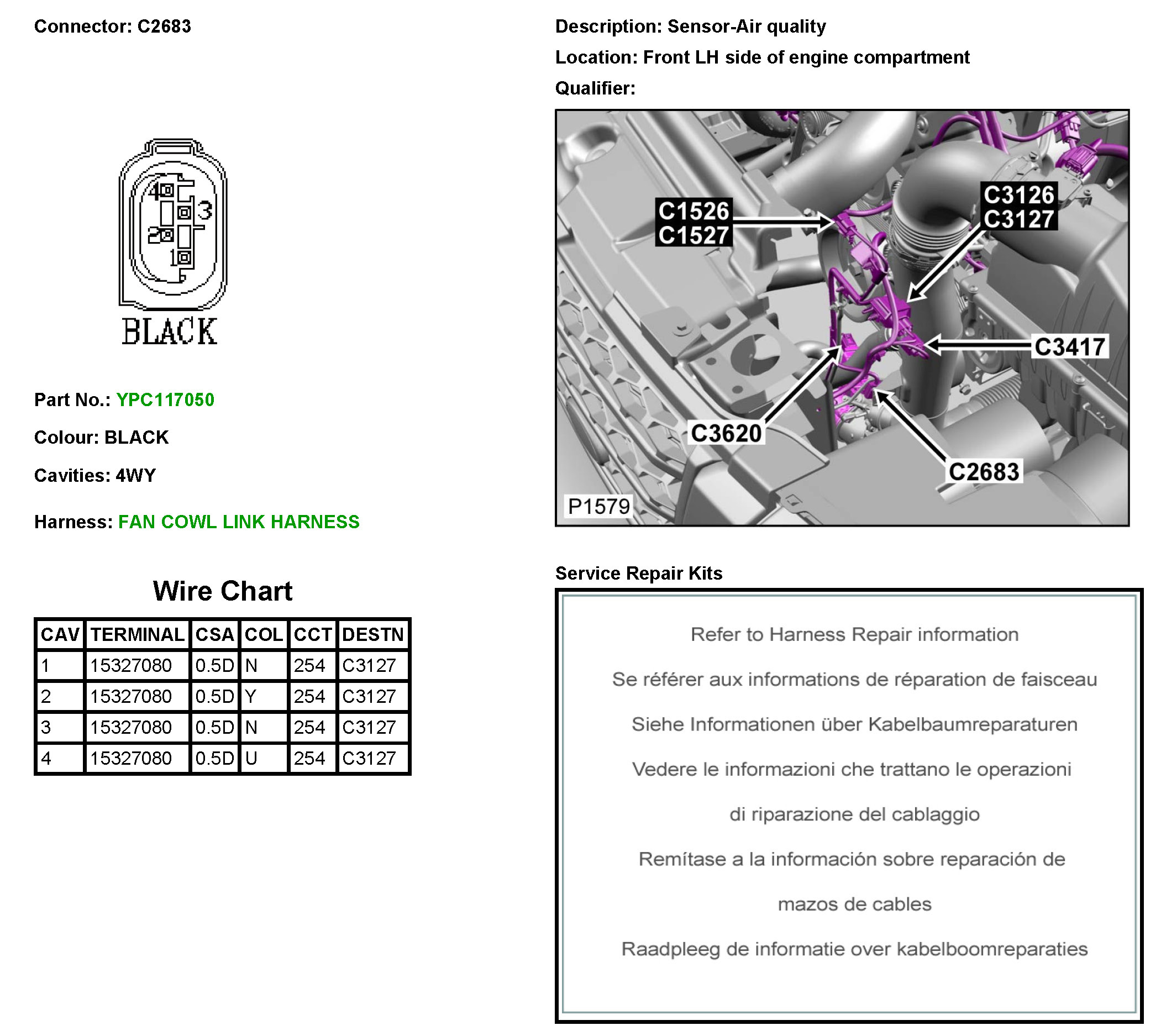

C2683 Sensor-Air quality
C2683 Sensor-Air quality
C2683
