Brake Pedal and Bracket

Brake Pedal and Bracket

Removal
1 Disconnect the battery ground cable. For additional information, refer to Specifications Battery and Charging System




2
NOTE:
LH illustration shown, RH is similar.
Remove the floor console extension.
- Remove the screw.
- Release the 2 clips.




3 Remove the driver side closing trim panel.
- Remove the 3 screws.
- Disconnect the footwell lamp electrical connector.
- Release the vehicle diagnostic socket.




4 Remove the driver side footwell duct.
- Remove the 2 screws.




5 Release the brake booster push rod from the brake pedal.
- Remove the clip.
- Remove the pin.

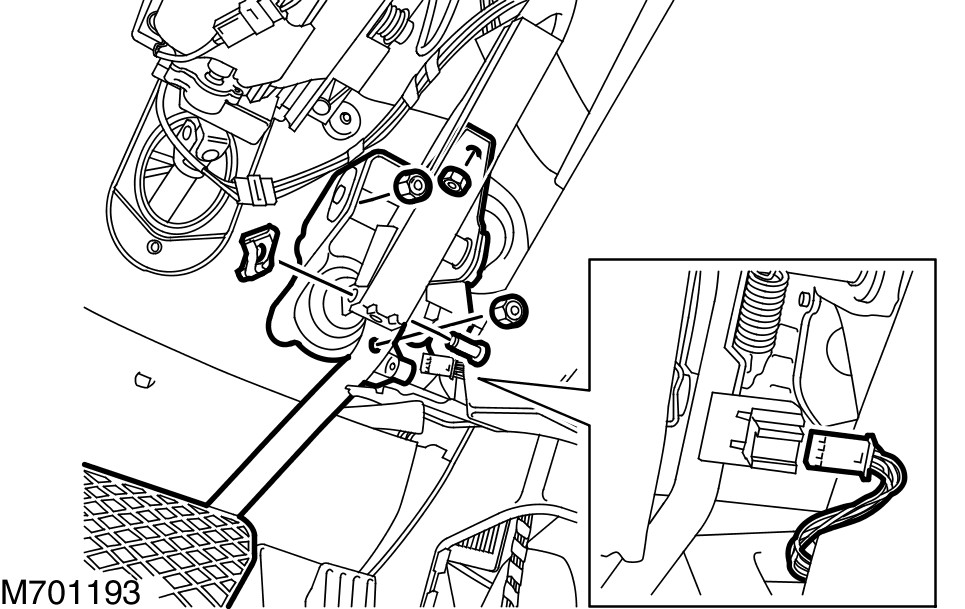

6 Remove the brake pedal and bracket.
- Disconnect the stoplamp switch electrical connector.
- Remove and discard the 3 nuts.
- Reposition the brake booster and brake master cylinder.
7
NOTE:
Do not disassemble further if the component is removed for access only.
Remove the stoplamp switch.
- Release the clip.
8 Remove the stoplamp switch bracket.
- Remove the 2 nuts and 2 bolts.
- Remove the brake pedal return spring.

Installation
1 Install the stoplamp switch bracket.
- Install the brake pedal return spring.
- Tighten the nuts and bolts to 10 Nm (7 lb.ft).
2 Install the stoplamp switch.
- With the brake pedal released, make sure the stoplamp switch is in contact with the brake pedal.
3
WARNING: Make sure that new nuts are installed.
CAUTION: The nuts must be re-torqued after 20 minutes.
Install the brake pedal and bracket.
- Reposition the brake booster and brake master cylinder.
- Tighten the nuts to 26 Nm (19 lb.ft).
4 Secure the brake booster push rod to the brake pedal.
- Install the pin.
- Install the clip.
5 Install the driver side footwell duct.
- Tighten the screws.
6 Install the driver side closing trim panel.
- Connect the footwell lamp electrical connector.
- Secure the vehicle diagnostic socket.
- Tighten the screws.
7 Install the floor console extension.
- Secure the clips.
- Tighten the screw.
8 Connect the battery ground cable. For additional information, refer to Specifications Battery and Charging System
