Brake Pedal

Brake Pedal

Removal
1 Remove the headlamp switch. For additional information, refer to Headlamp Switch
2 Remove the stoplamp switch. For additional information, refer to Stoplamp Switch




3 Remove the instrument panel access panel.
- Release the 2 clips.

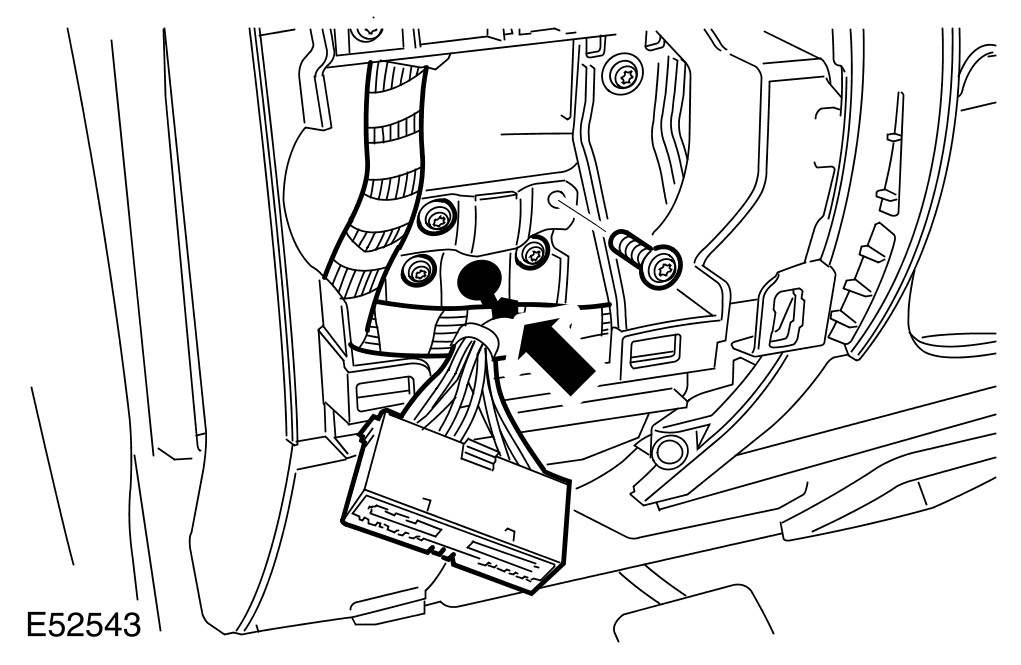

4 Remove the brake pedal bracket.
- Release the wiring harness clip.
- Remove the 4 Torx bolts.

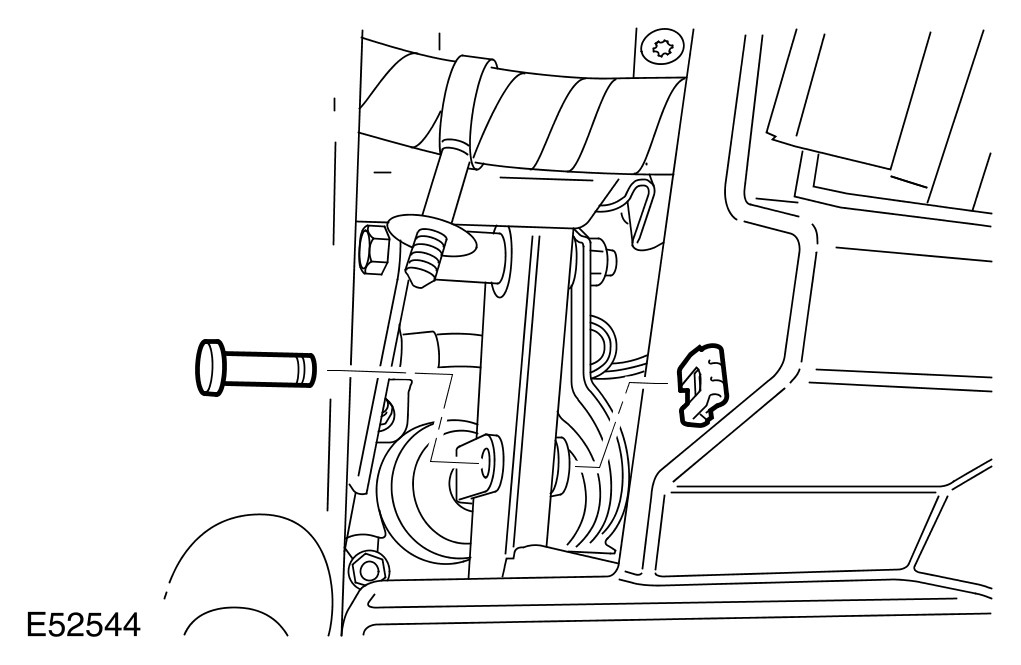

5 Remove the brake pedal clevis pin.
- Remove the clip.

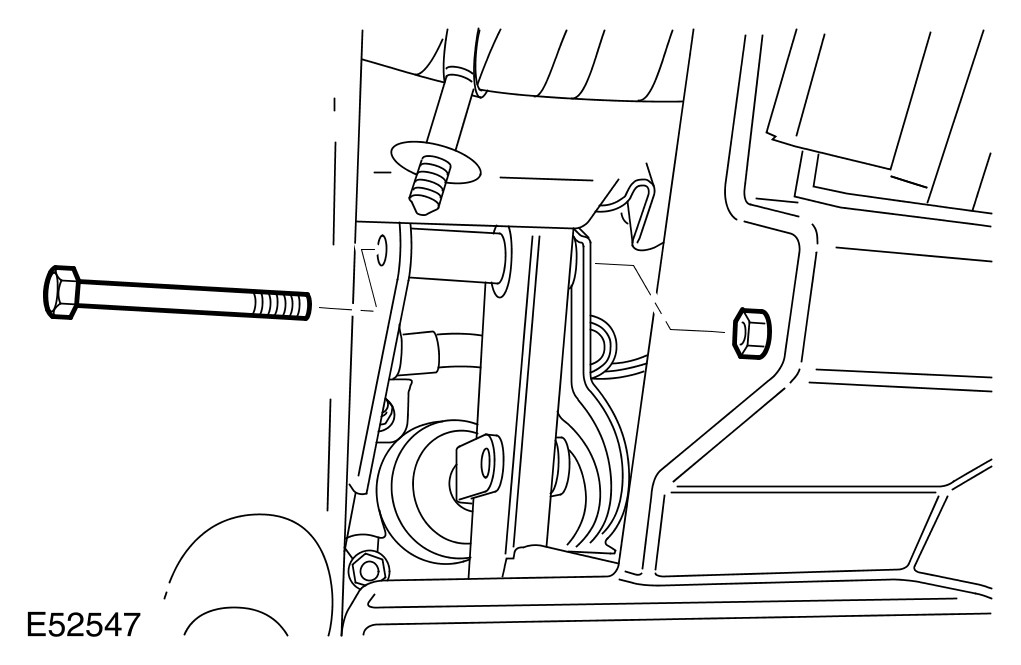

6 Remove the brake pedal.
- Remove the nut and bolt.




7
NOTE:
Do not disassemble further if the component is removed for access only.

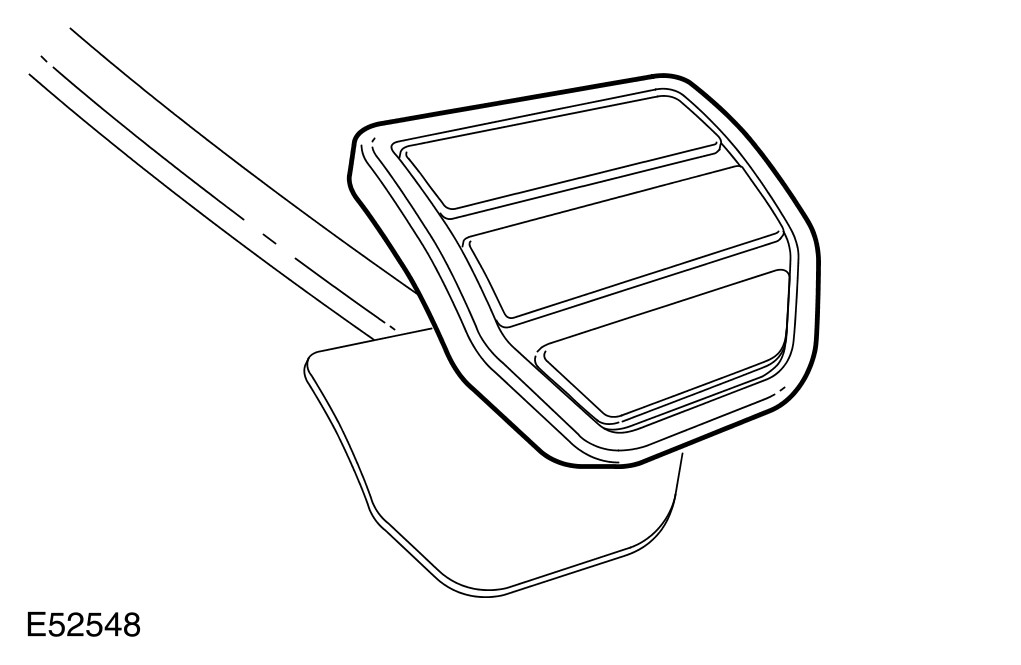

Remove the brake pedal pad.

Installation
1 Install the brake pedal pad.
2 Install the brake pedal.
- Clean the component mating faces.
- Tighten the nut and bolt to 45 Nm (33 lb.ft).
3 Install the brake pedal clevis pin.
- Install the clip.
4 Install the brake pedal bracket.
- Tighten the Torx bolts to 10 Nm (7 lb.ft).
- Secure the wiring harness.
5 Install the instrument panel access panel.
- Secure with the clips.
6 Install the stoplamp switch. For additional information, refer to Stoplamp Switch
7 Install the headlamp switch. For additional information, refer to Headlamp Switch
