Sunroof / Moonroof Motor: Service and Repair

Roof Opening Panel Motor

Removal
1 Remove the overhead console. For additional information, refer to Overhead Console Overhead Console

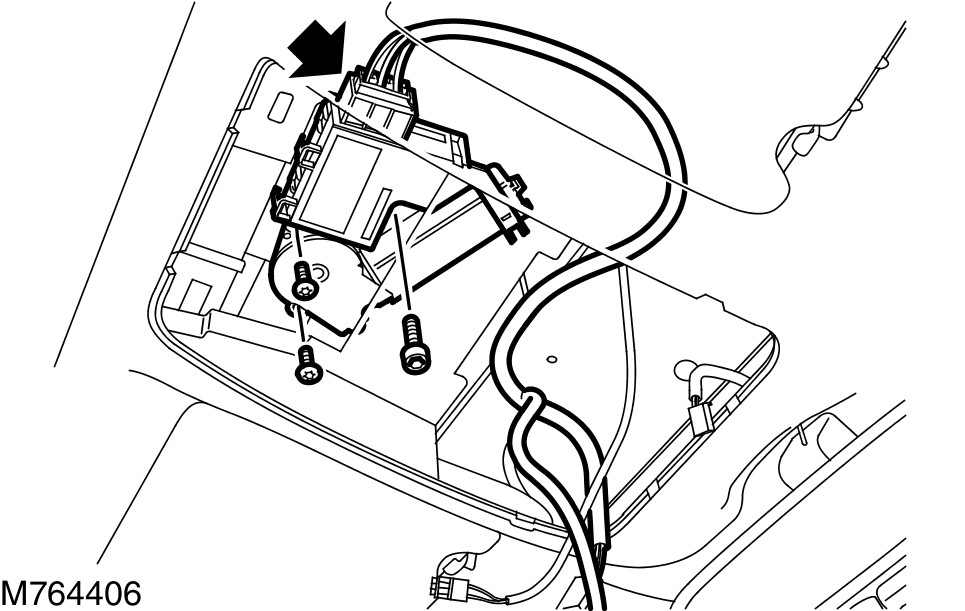

2 Remove the roof opening panel motor.
- Disconnect the roof opening panel motor electrical connector.
- Remove the 3 screws.

Installation
1 Install the roof opening panel motor.
- Tighten the bolts to 5 Nm (4 lb.ft).
- Tighten the bolt to 10 Nm (7 lb.ft).
- Connect the roof opening panel motor electrical connector.
2 Install the overhead console. For additional information, refer to Overhead Console Overhead Console
3 If the roof opening panel motor is to be replaced, the one touch and anti-trap function will become inoperative. Close the roof opening panel and continue to hold the switch for a further 20 seconds to allow the sunroof to complete a full cycle. This will complete the roof opening panel calibration routine and reset these functions.
