Sunroof / Moonroof Lift Mechanism: Service and Repair

Lifter Arms

Removal
1 Remove the roof opening panel glass. For additional information, refer to Roof Opening Panel Glass Roof Opening Panel Glass

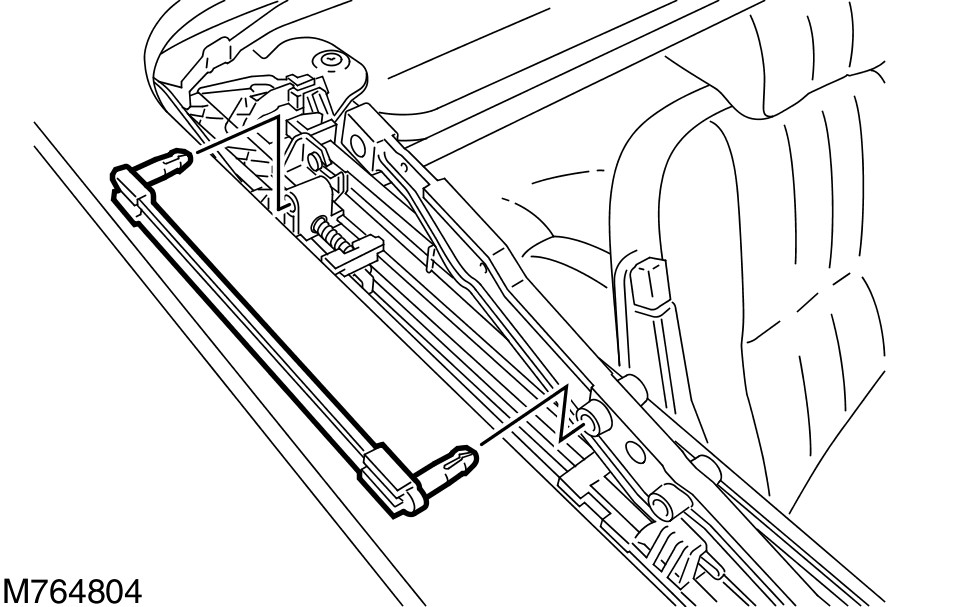

2 Release the spacing rod from the lifter arm.

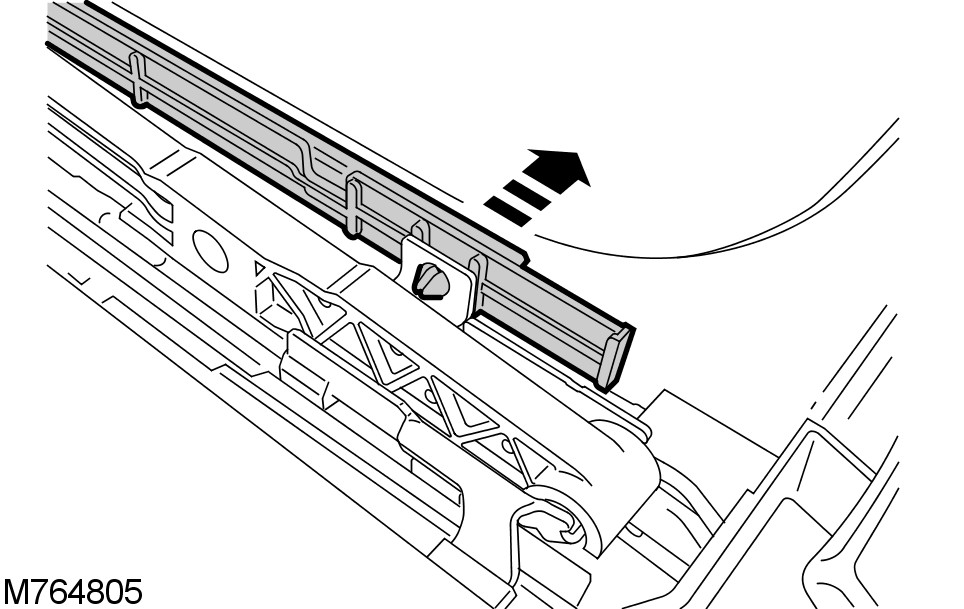

3 Remove the roof opening panel side trim.

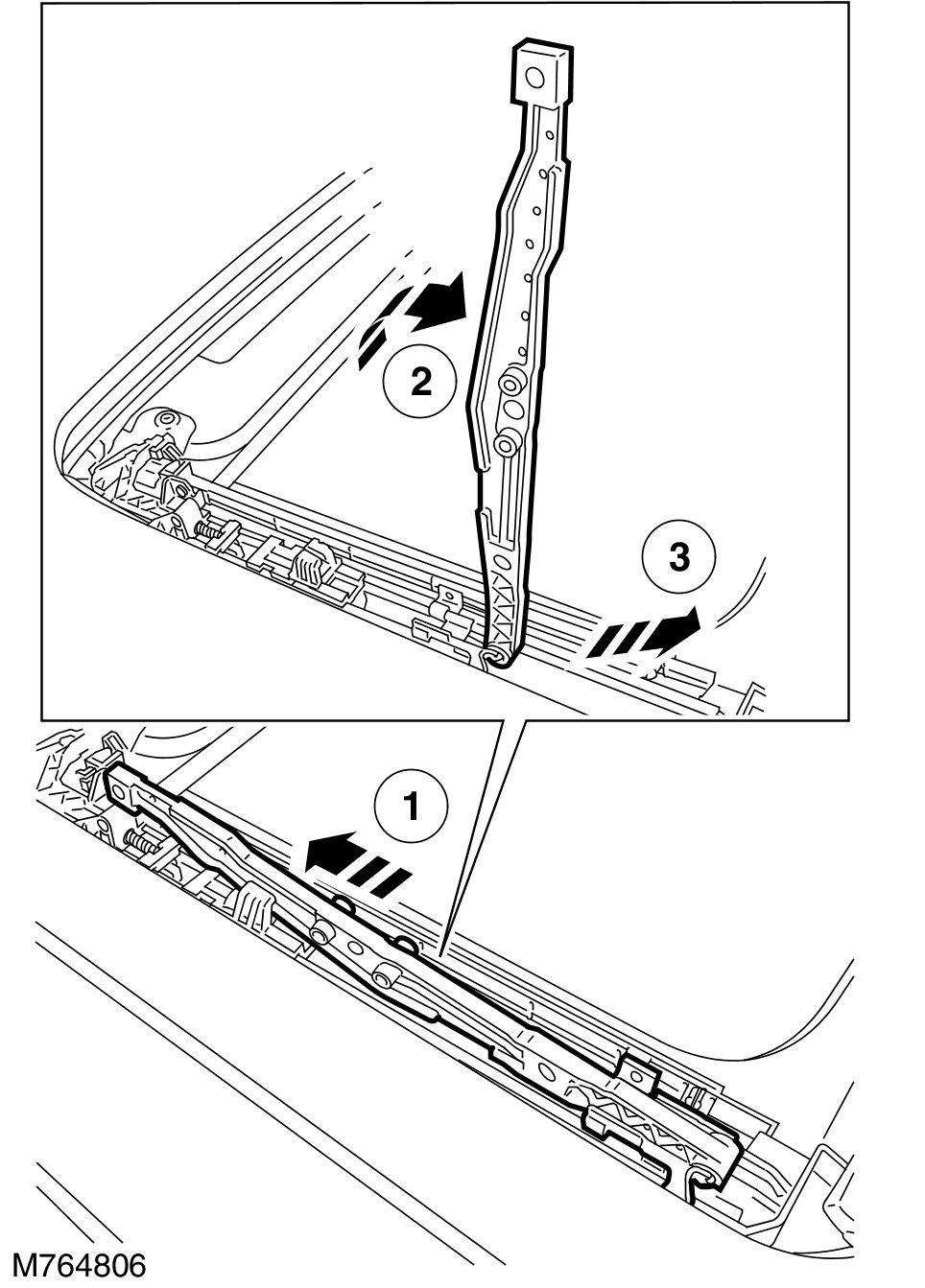

4 Remove the lifter arm.
- Slide the lifter arm backwards.
- Raise the front of the lifter arm.

Installation
1 Install the lifter arm.
- Lower the front of the lifter arm.
- Slide the lifter arm forwards.
2 Install the roof opening panel side trim.
3 Secure the spacing rod to lifter arm.
4 Install the roof opening panel glass. For additional information, refer to Roof Opening Panel Glass Roof Opening Panel Glass
