Tailgate Speaker

Tailgate Speaker

Removal
1 Remove the tailgate trim panel. For additional information, refer to Tailgate Trim Panel

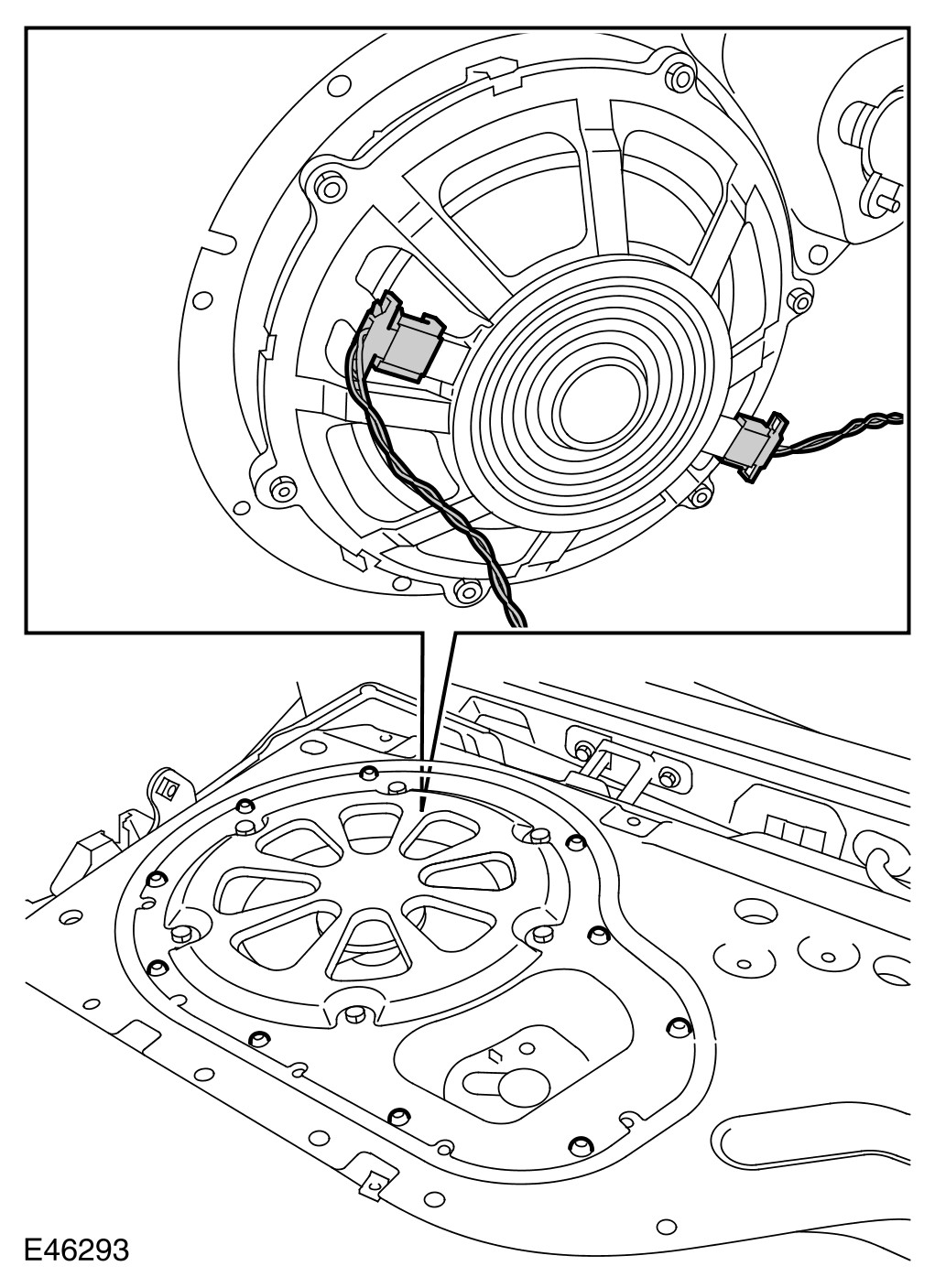

2 Remove the tailgate speaker assembly.
- Remove the 10 Torx bolts.
- Disconnect the 2 electrical connectors.




3
NOTE:
Do not disassemble further if the component is removed for access only.

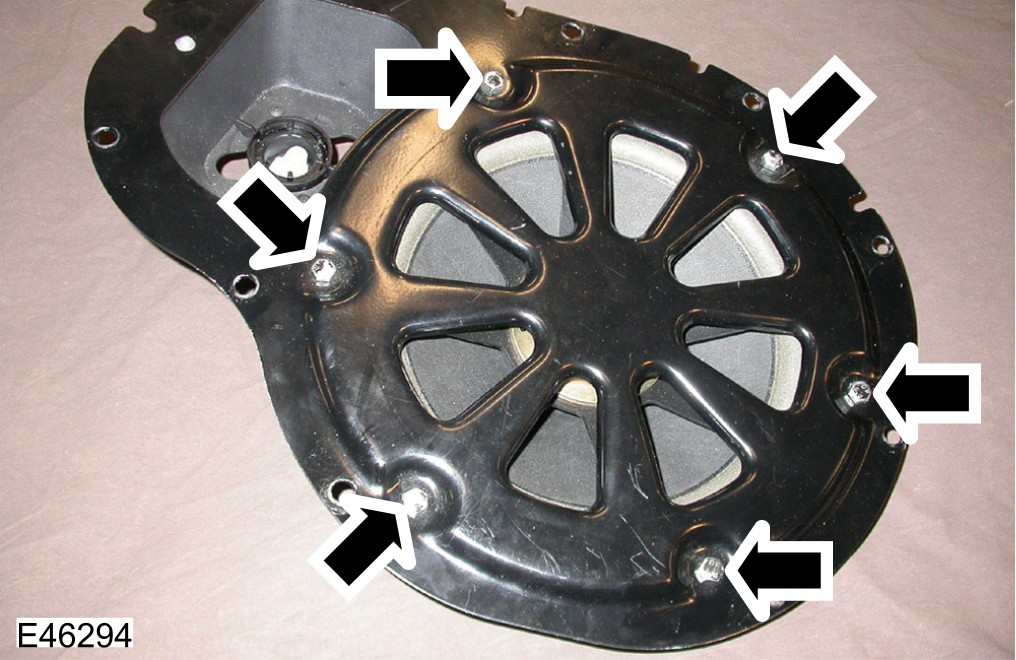

Remove the tailgate speaker.
- Remove the 6 bolts.

Installation
1 Install the tailgate speaker.
- Tighten the bolts to 10 Nm (7 lb.ft).
2 Install the tailgate speaker assembly.
- Connect the electrical connectors.
- Tighten the Torx bolts to 10 Nm (7 lb.ft).
3 Install the tailgate trim panel. For additional information, refer to Tailgate Trim Panel
