Rear Door Speaker

Rear Door Speaker

Removal
1 Remove the rear door trim panel. For additional information, refer to Rear Door Trim Panel

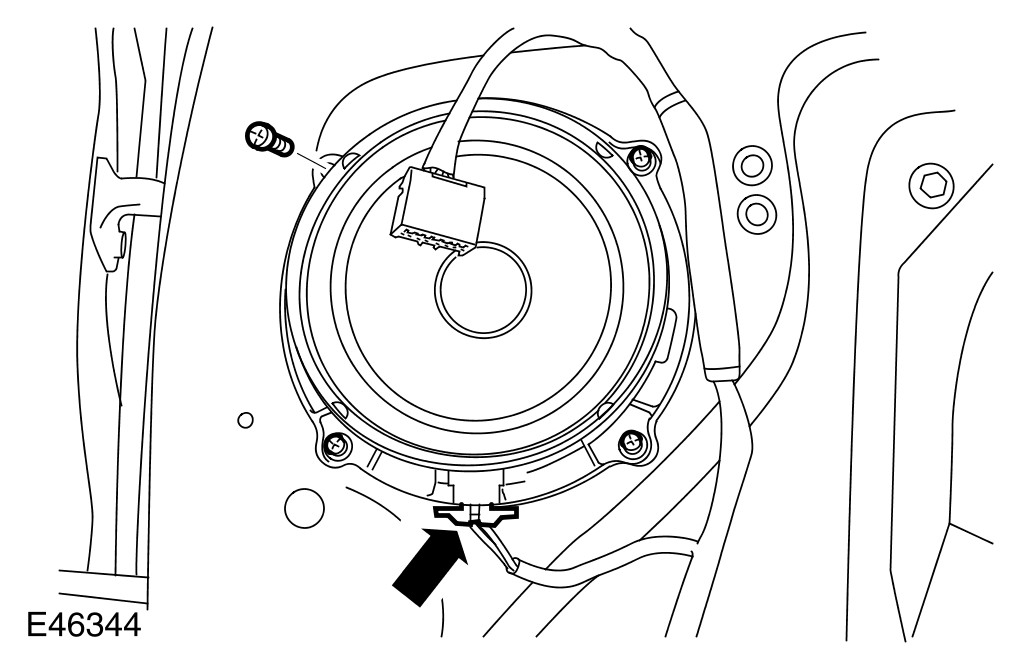

2 Remove the speaker.
- Disconnect the electrical connector.
- Remove the 4 screws.

Installation
1 Install the speaker
- Tighten the screws.
- Connect the electrical connector.
2 Install the rear door trim panel. For additional information, refer to Rear Door Trim Panel
